G. Connector Pin & Wire Color Cross Reference

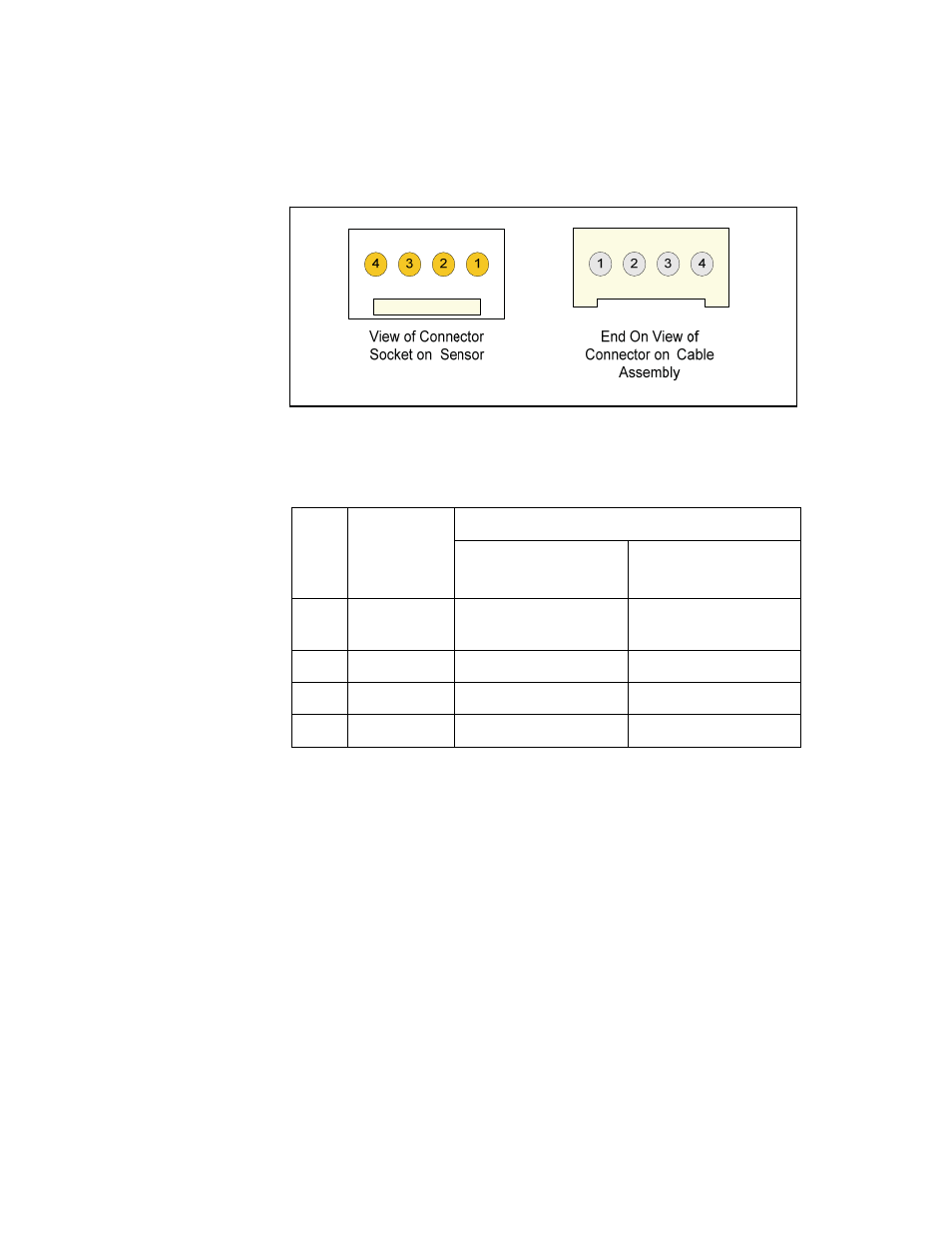

End On View of Connector Socket and Connector
Standard Units:
Pin Cable Wire
Color
Unit Output
Voltage
(TFP-LI & TFM-LI)
Voltage & Pulse
(TFP-LP & TFM-LP
1 Black Signal & Power
Negative (Ground)
Signal & Power
Negative (Ground)
2 White Voltage Output Voltage Output
3 Red Power Positive Power Positive
4 Green Not Used Pulse Output
