Page 23: Pulses per liter

Pulse Transmitter (for 1/4")

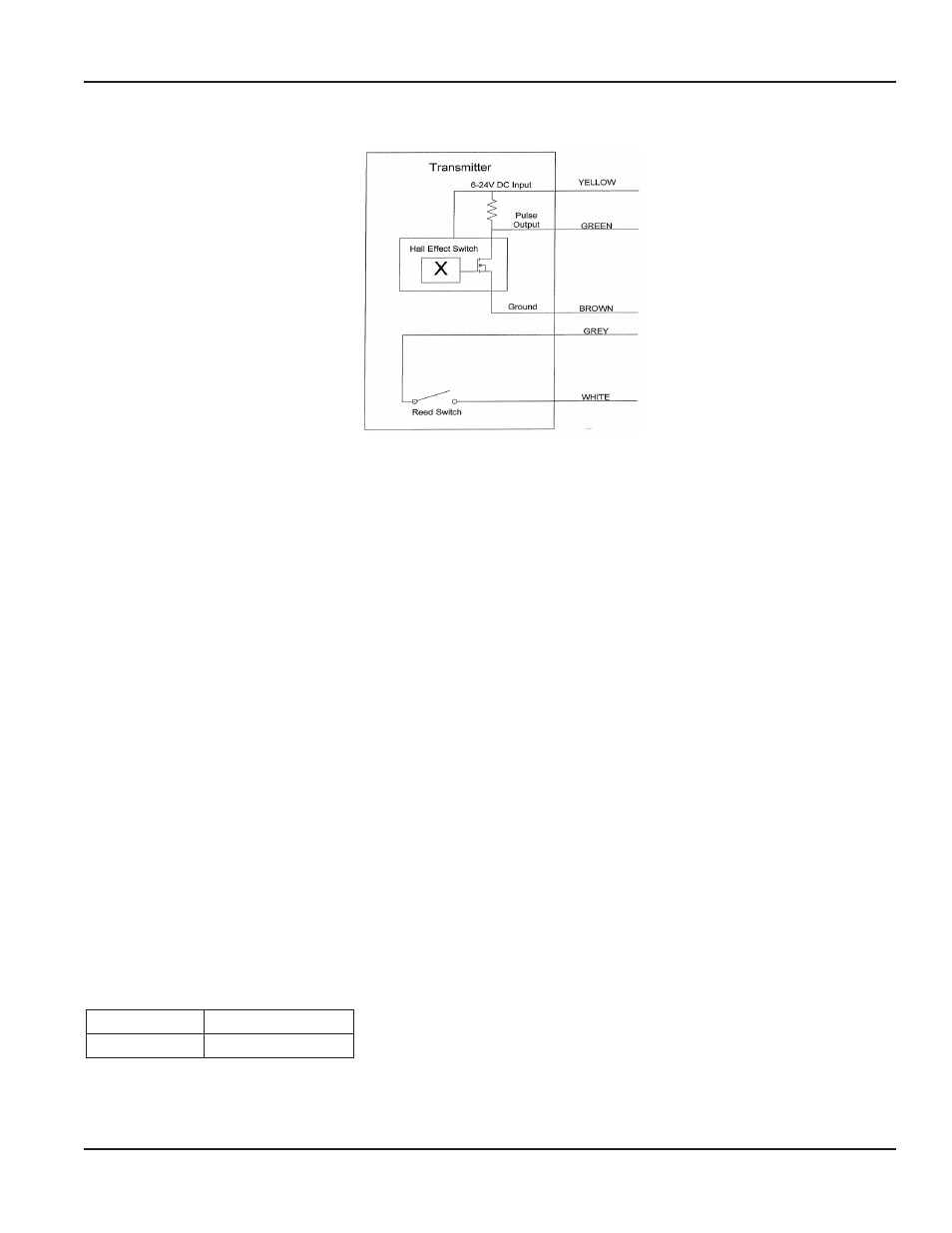

Figure 20E: 1/4" Wiring

Hall Effect Switch

Rating:

Power

Supply:

Supply Input Range: 5…24V DC

Supply Current: 3 5 mA

Pulse

Output

Output Current: 30 mA, max

Wiring:

Yellow: Hall Effect DC+

Brown: Hall Effect Ground

Green: Hall Effect Pulse Output

Reed Switch

Rating:

Power Rating: 10W:

Switching Voltage: 100V (DC or Peak AC)

Switching Current: 500 mA (DC or Peak AC)

Wiring:

Grey: Reed Switch

White: Reed Switch

Green: Hall Effect Pulse Output

Pulses Per Liter

Meter Size

Pulses Per Liter

1/4"

390 PPL
