Analog (Model ILR 730)
Register Wiring
External DC+: Yellow
External Ground: Brown
Analog Output: White
DC Input: 6…24V DC; 10…20 mA
Outputs: Analog 4…20 mA output in loop powered configuration; external load of 50…250 ohms; flow rate is linear scaled
between 4 mA minimum and 20 mA maximum set points; flow rates below programmed minimum read 4 mA

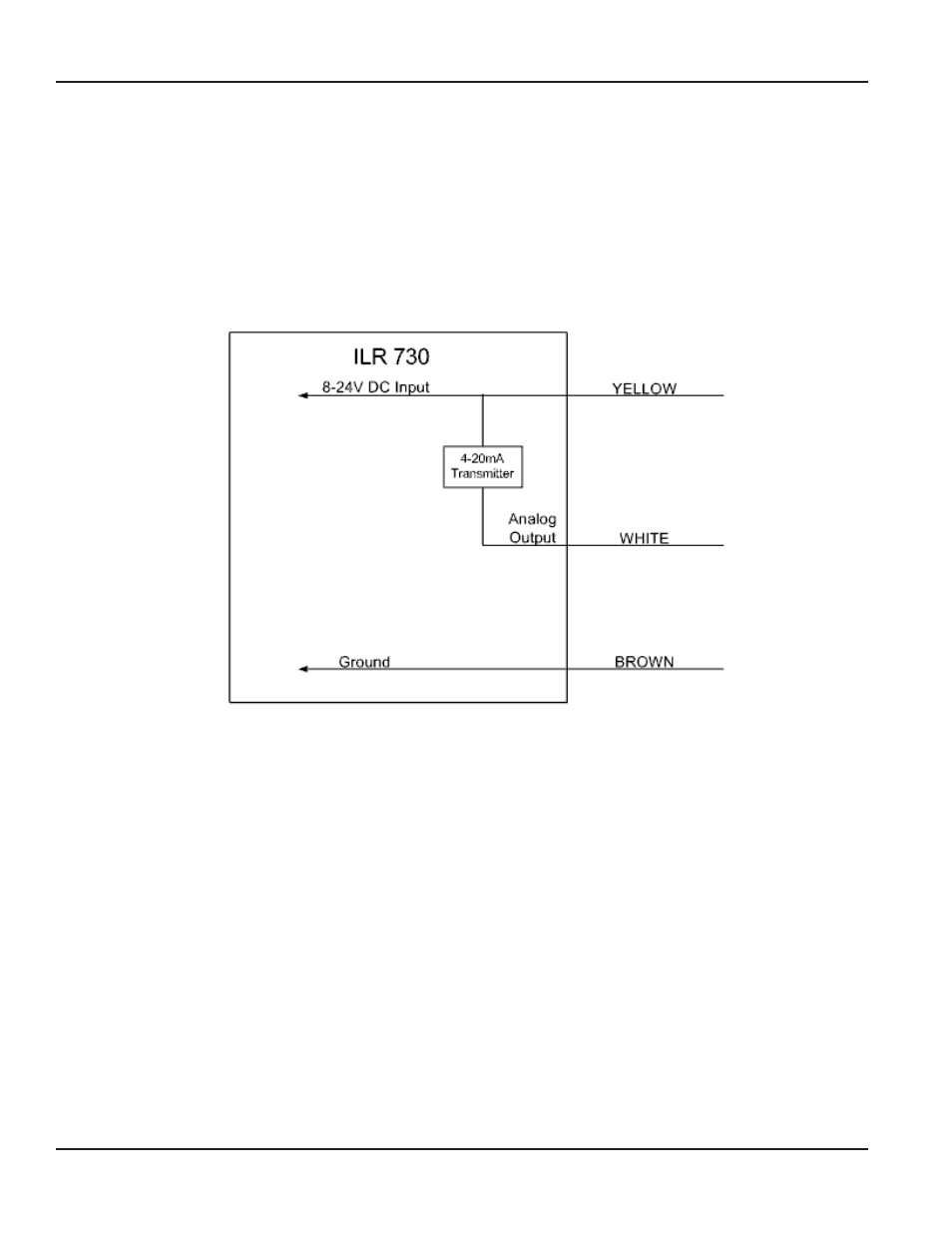

Figure 15E: ILR 730 Wiring
Industrial Oval Gear Meter and Register
Page 20
May 2013
