Page 13

Changing the Meter Pulse Rate
(For models ILR 700, 710, 720 and 730)
The meter pulse rate (screen is indicated by the “I” on the top row, on the left side) is the number of pulses per unit of measure
as detected by the register The pulse rate varies according to the type of attached meter The bottom row consists of the
5-digit integer value of the meter pulse rate, whereas the top row consists of the 2-digit decimal value of the meter pulse rate
The meter pulse rate is entered in pulses per liter if the selected unit of measure is liters The meter pulse rate is entered in
pulses per gallon if the selected unit of measure is gallons, quarts or pints

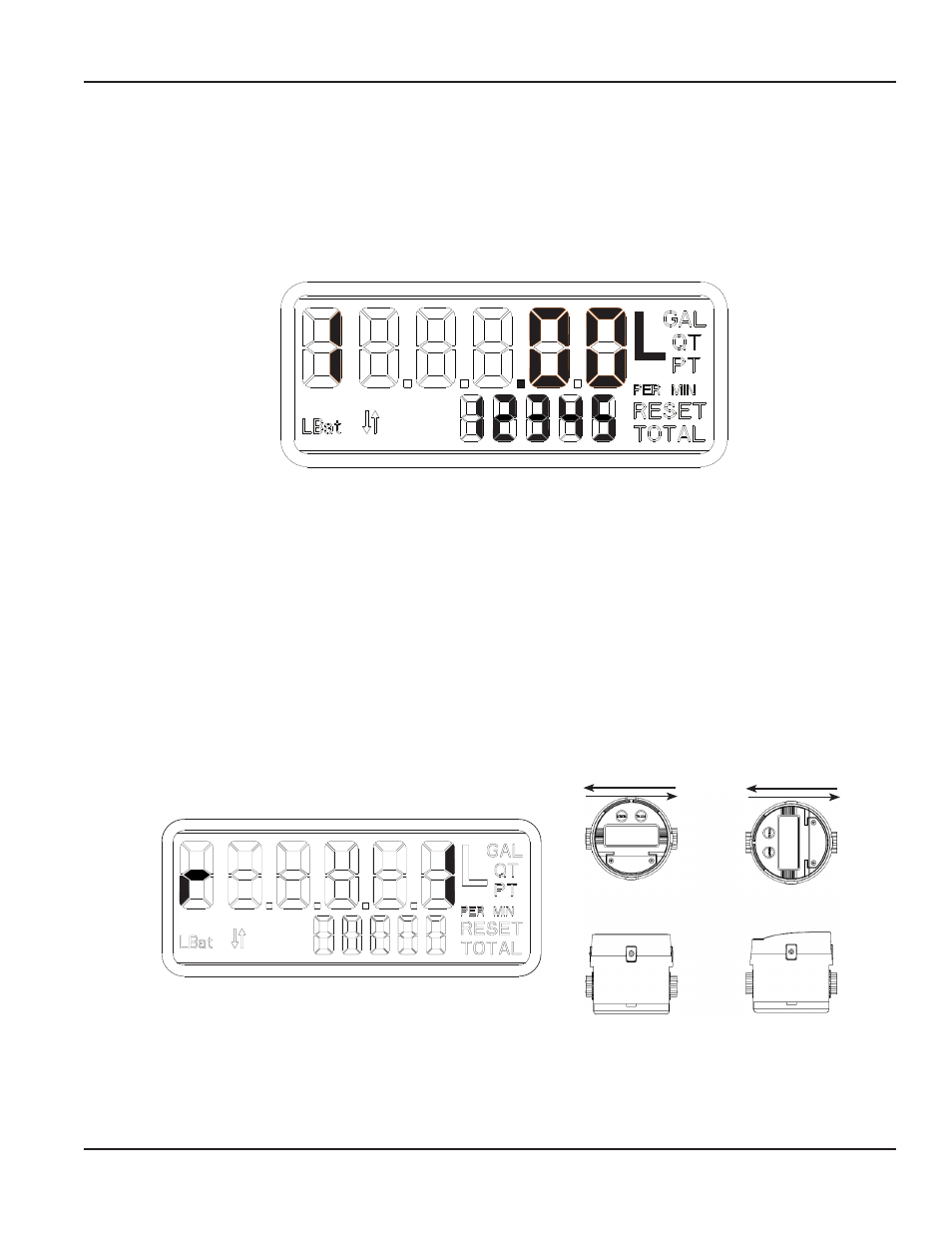

Figure 6E: Meter Pulse Rate
OTEE:
N
The general pulses per unit of measure data is available "PULSE CHART OF APPROXIMATE VALUES" on page 24
1 Press the TOTAL button to select a digit (selected digits flash) Press RESET to change the selected digit The pulse
rate can be any value between 00000 01 and 99999 99 on the top row; integer values are displayed on the bottom
row Example: 10 45 would display 45 on the top row and 10 would be displayed on the bottom row
2 When finished adjusting the pulse rate, press and hold the TOTAL button for one second to advance to the Register
Orientation section
OTEE:
N
Error checking will not allow the user to advance to the next screen
Changing the Register Orientation
(For models ILR 700, 710, 720 and 730)
Depending on the orientation (perpendicular or inline on the meter); this setting may need to be changed
Figure 7E: Register Orientation
1 Press the RESET button to toggle between available options ( “I, for an inline-to-flow orientation and “P” for a
perpendicular-to-flow orientation)
2 When finished adjusting the register orientation, press and hold the TOTAL button for one second to advance to the
Default Display section
Perpendicular
Inline
Flow
Directions
