Pulse Rate Out
(For model ILR 710 only)
Indicated by an “O” on the left-hand side of the display, this screen allows selection of the of pulses output per liter or per
gallon depending on unit of measure (0 01 ppl/ppg to 100 ppl/ppg)
The meter pulse rate is entered in pulses per liter if the selected unit of measure is liters The meter pulse rate is entered in
pulses per gallon if the selected unit of measure is gallons, quarts or pints
To advance to the next programming screen, hold the TOTAL button
OTEE:
N
Error checking will not allow the user to advance to the next screen
PER MIN

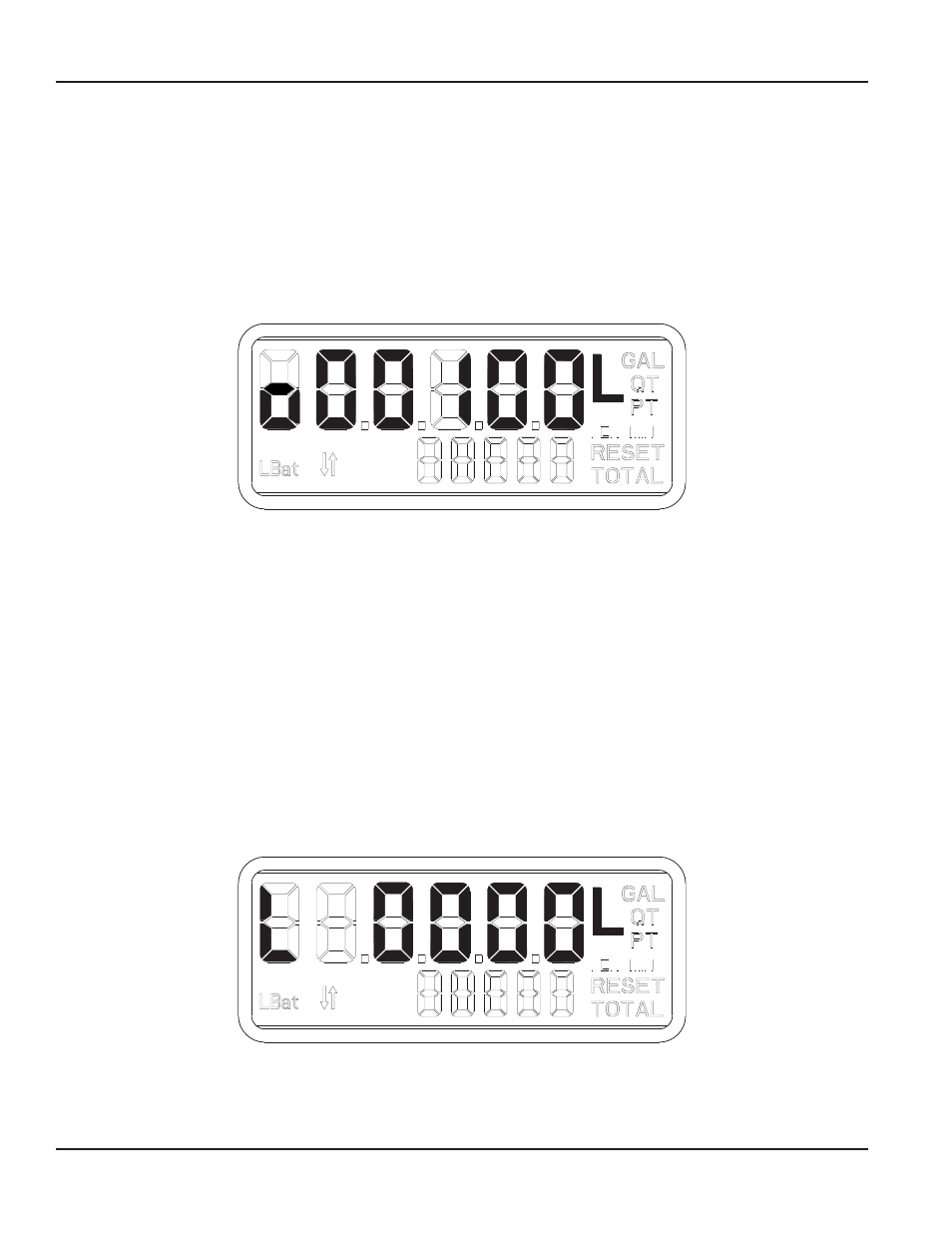

Figure 10E: Pulse Rate Out Screen
Analog Minimum Flow Rate
(For model ILR 730 only)
Indicated by a “L” on the left hand side of the display, this screen allows the setting of the flow rate that corresponds to the
4 mA output:
OTEE:
N
The minimum flow rate value must be less that the maximum flow rate value
•
Minimum 0 0 lpm/gpm
•
Maximum 100 0 lpm/gpm
•
Default 0 0 lpm/gpm
OTEE:
N
Error checking will not allow the user to advance to the next screen
To advance to the next programming screen, hold the TOTAL button for one second
PER MIN
Figure 11E: Analog Minimum Flow Rate Screen
