REGISTER OPERATION
The following describes register operation and program settings for all four Industrial Oval Gear (IOG) Series registers:
Industrial Standard (ILR 700), Industrial Pulse (ILR 710), Industrial Quadrature/Dual Pulse (ILR 720) and Industrial Analog
(ILR 730) See “"Additional Programming: Industrial Analog and Industrial Pulse (ILR 710 & ILR 730)" on
The Pulse
Transmitter (ILR 740) wiring is indicated on
The Pulse Transmitter (ILR 741) wiring is indicated on
The register display consists of two rows of seven-segment digits, status, unit of measures, flow rate and battery indicators
Operating function settings and programming are provided using the TOTAL and RESET buttons

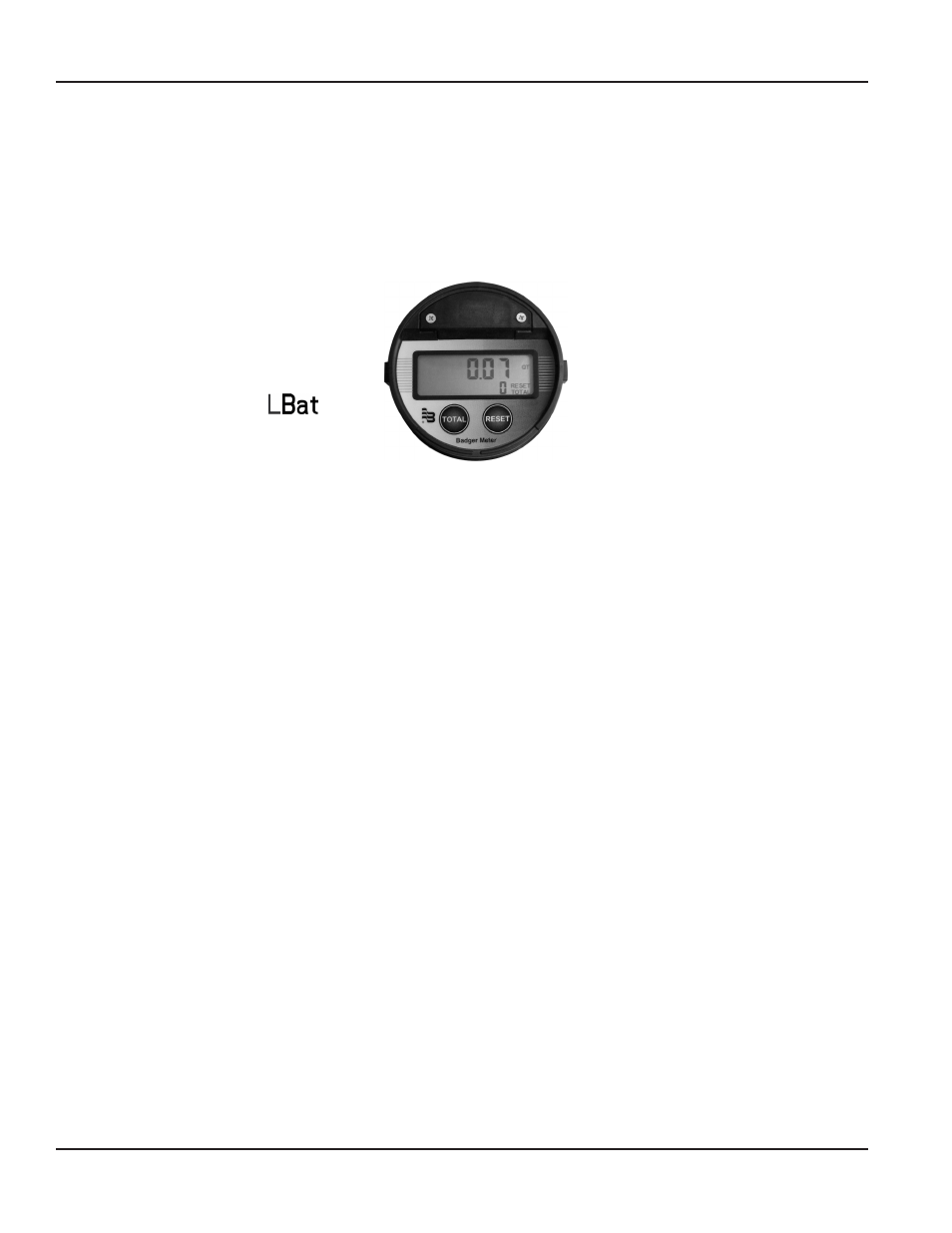

Figure 3E: Register Display and Buttons
Normal Operation
(For models ILR 700, 710, 720 and 730)
To enter normal operation mode: When the screen is blank after exiting programming mode or upon initial use, press either
the TOTAL or RESET button once
Status
The status indicators are RESET and TOTAL
Totalizers
The top row of indicators is the Batch Totalizer This Totalizer displays the cumulative volume of flow through the meter with
six digits The Batch Totalizer totalizes in selected units of measure
To reset the Batch Totalizer, after 2 seconds of no flow, press and release the RESET button
OTEE:
N
For the ILR 720 model only, the Batch Totalizer can be reset by a low pulse on the external reset input
The bottom row of indicators display the Resettable Totalizer with five digits or the five least significant digits of the Non-
Resettable Totalizer RESET and TOTAL is indicated when the Resettable total is displayed in the five-digit lower row Only
TOTAL is indicated when the non-Resettable total is displayed
To toggle between the Non-Resettable totalizer and the Resettable Totalizer, press and release the TOTAL button
To display 11-digit Non-Resettable Totalizer:
1 While the Non-Resettable total is displayed, press and hold the TOTAL button for 2 seconds
2 The top row displays the 6 most significant digits; the bottom row displays 5 least significant digits
OTEE:
N
The Non-Resettable Totalizer normally displays 5 least significant digits
Flow Rate
PER MIN is displayed in conjunction with the unit of measure All flow rates are calculated in volume unit per minute
