Dual Pulse (Model ILR 720)
Register Wiring
External DC+: Yellow
External Ground: Brown
Pulse Output 1: White
Pulse Output 2: Green
External Reset: Grey
DC Input: 6…24V DC; 10…20 mA
Outputs: Dual-pulse output with internal pull-up resistor; optional open collector output with output jumper removed; dual
pulse output forms a quadrature signal for direction of flow
Inputs: External reset pulled low to reset the batch totalizer

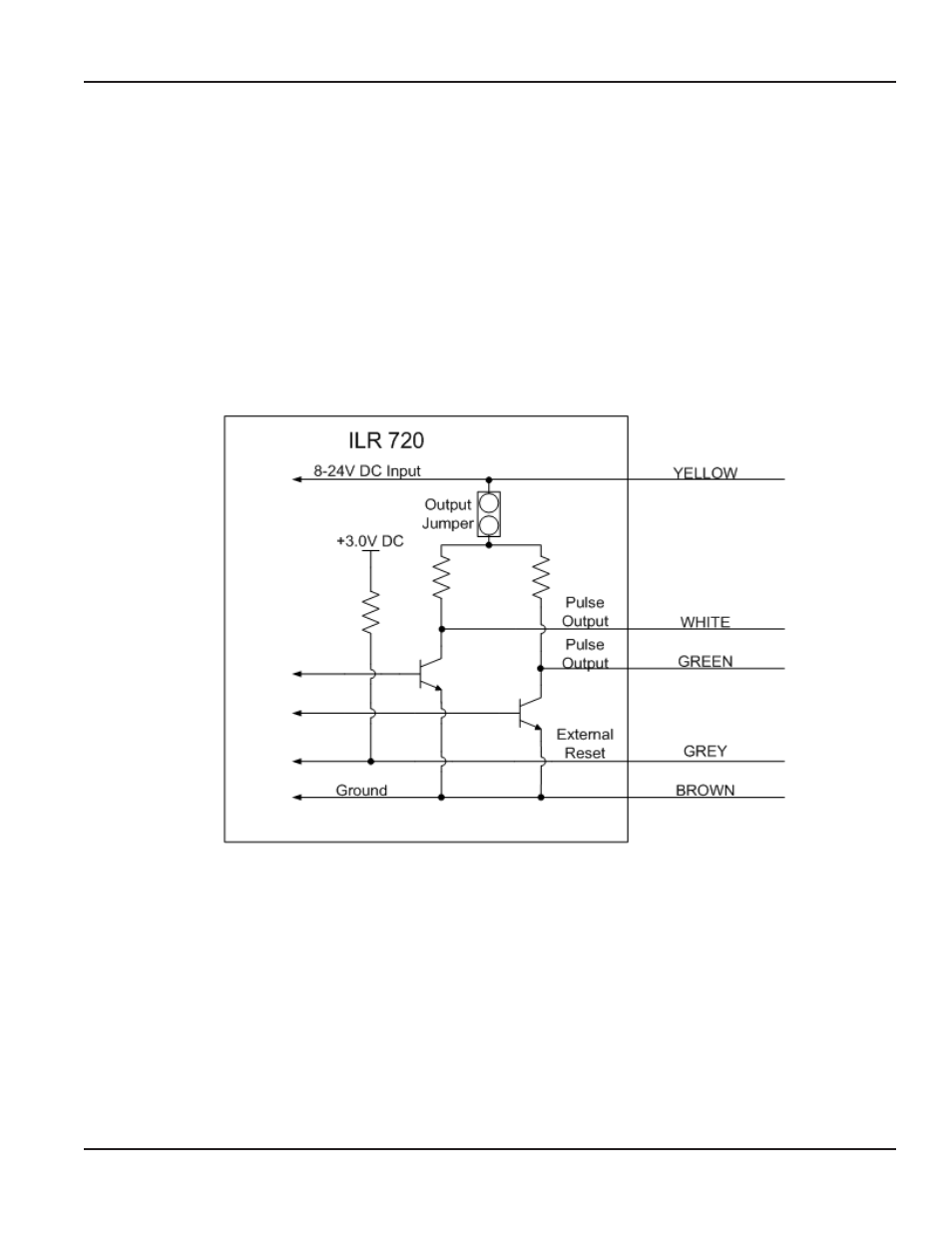

Figure 14E: ILR 720 Wiring
