Pulse transmitter (model ilr 741), Transmitter wiring, Ed on – Badger Meter Model IOG User Manual
Page 22
Pulse Transmitter (Model ILR 741)
The meter size selector switch must be set to correspond to the size of the meter to properly detect fluid flow:
•
Position 1 (top): 1/2", 3/4", 1"
•
Position 2 (center): 1-1/2"
•
Position 3 (bottom): 2", 3"

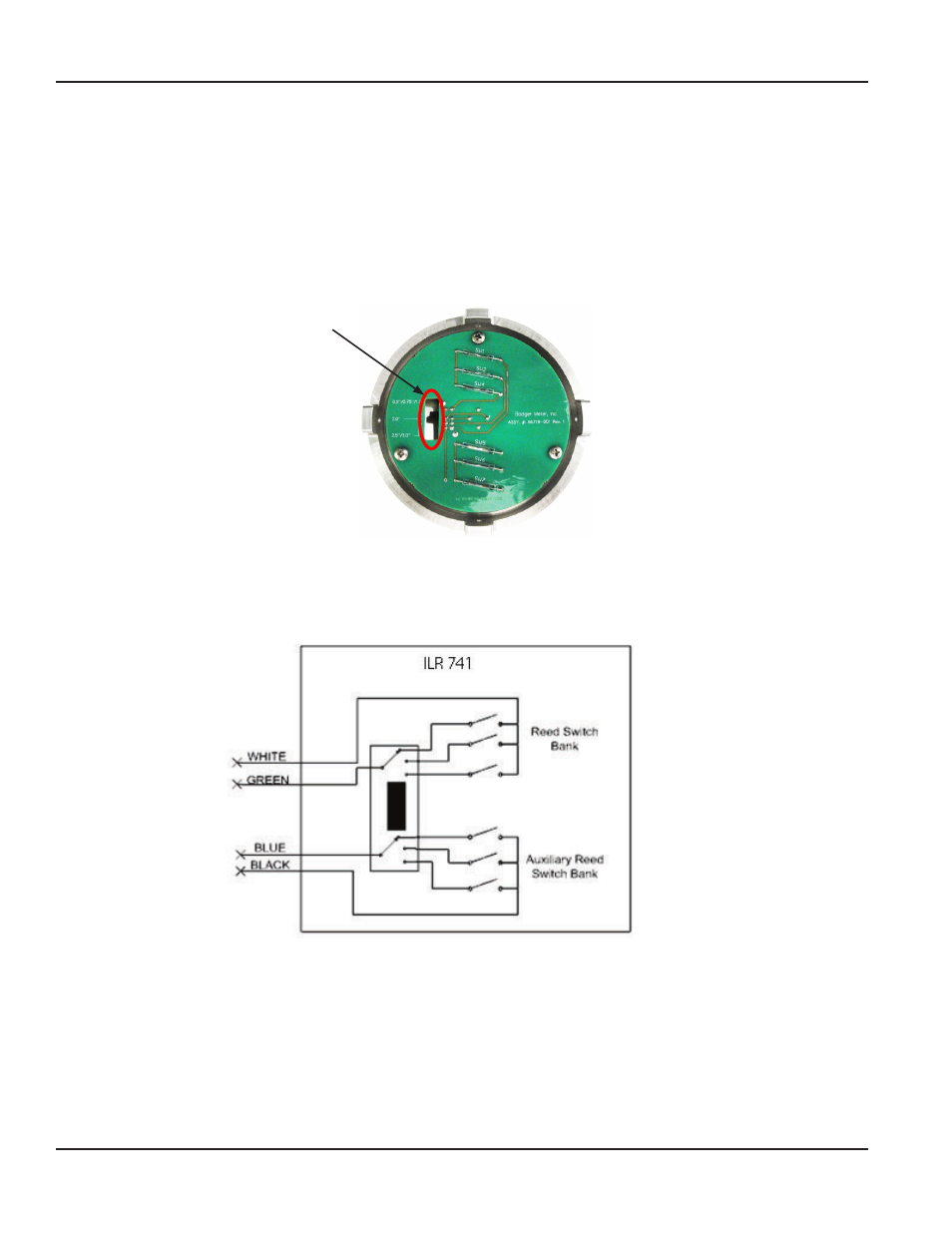

Figure 18E: ILR 741 Transmitter Switch Positions
Transmitter Wiring
Figure 19E: ILR 741 Wiring
Meter Size
Selector Switch
Industrial Oval Gear Meter and Register
Page 22
May 2013
