Figure 31, Thumb screws – Badger Meter B3000 User Manual
Page 31

Programming Manual
Page 31
March 2014
5 Cut the tie wrap holding the battery to the mounting plate and remove the worn-out battery
6 Install a new tie wrap and battery securing the battery to the mounting plate with the tie wrap
7 Re-install the battery mounting plate
8 Plug the battery into the circuit board and re-install the circuit assembly into the explosion proof housing using the
thumb screws
9 Re-install the enclosure screw cover
3.6
VOL
TS
+
TADRAN
LITHIUM
INORGANIC
BATTORY
J1
S1
Menu
S4
Enter
S3
Up
S2
Down
COM
1
2
12
1
Thumb Screws
3.6
VOL
TS
+
TADRAN
LITHIUM
INORGANIC
BATTORY
Tie Wrap
Battery
Bracket
Battery Connector
Release Tab

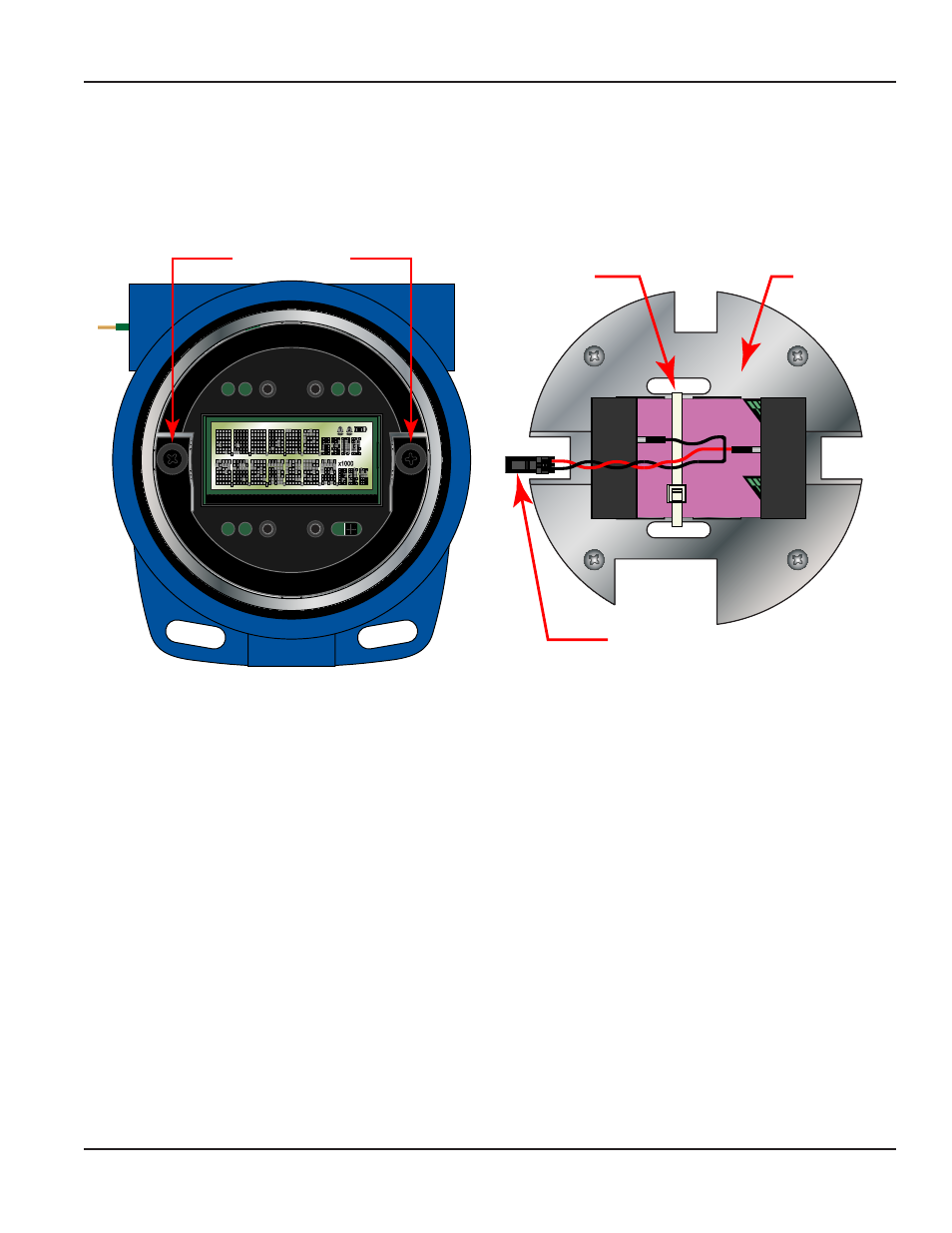

Figure 31: Ex-proof battery replacement
