Compact Digital Flow Monitor, Model B3000
Page 18
March 2014
2
1
Roll-Over
Indicator
Totalizer
Mode
Total
Roll-Overs

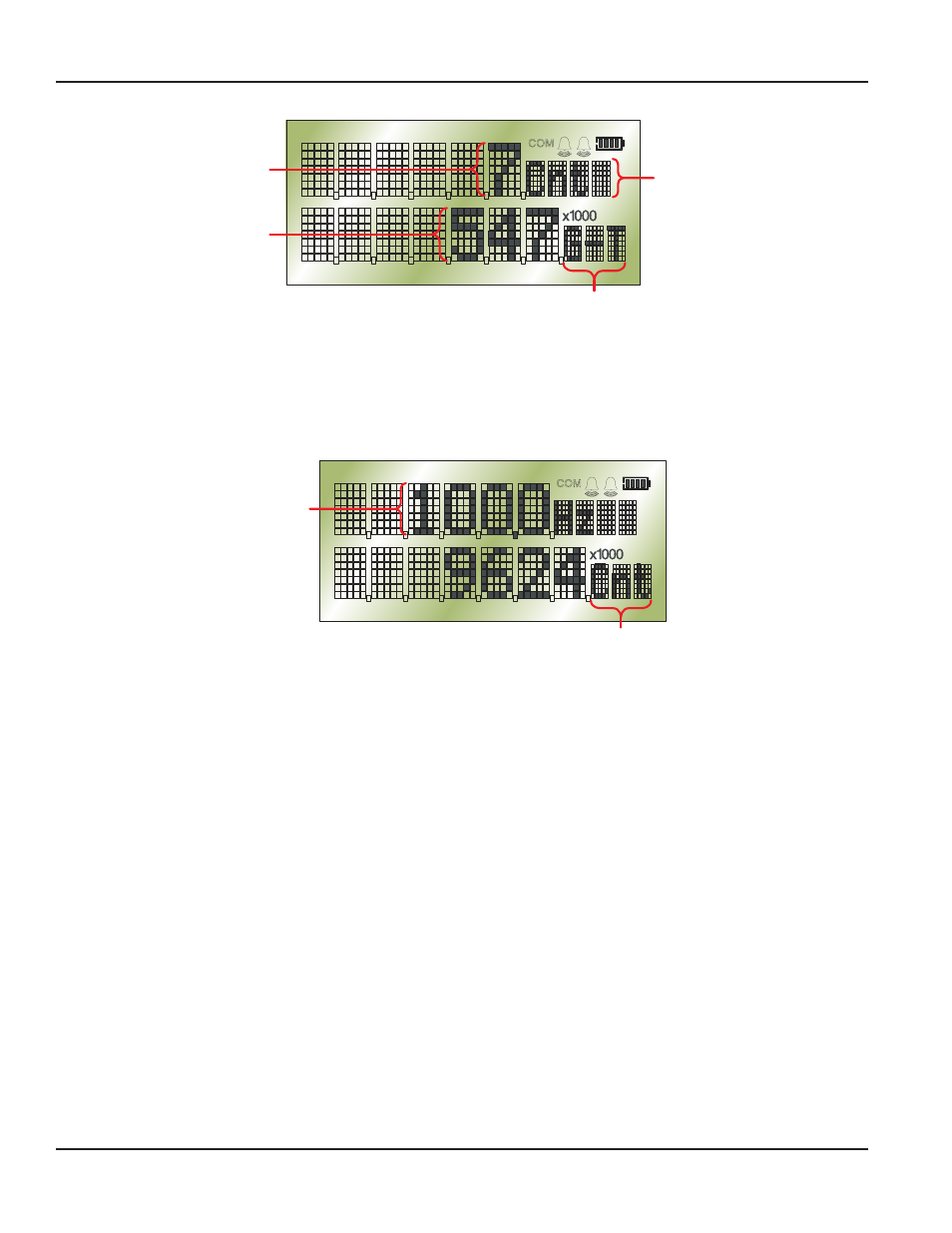

Figure 17: Grand total
Test Test
The Test setting places the monitor into a special diagnostic mode that shows the current input frequency and the
shows the layout for test mode values The diagnostic mode makes it possible for the
user to see precisely the frequency input the monitor is seeing and is very useful in troubleshooting and noise detection
2
1
Input
Frequency
Totalizer
Counts
Figure 18: Test mode screen
If the current setting requires a change, press
► to advance to the alternate choice Once the correct choice is displayed, press
ENTER to save the new selection and advance to the next parameter
Select Meters K Factor Unit KFacUnt
Basic Function
At the KFacUnt prompt, press ENTER The display now shows the current K factor unit If the current selection is correct, press
ENTER to advance to the next parameter For meters calibrated in gallons, use Pul/Gal; for meters calibrated in cubic meters,
use Pul/m3; and so on
Enters Meters K Factor KFactor
Basic Function
OTE:
N
The K factor supplied with your meter or calculated from calibration data will be needed to complete this step
At the KFactor prompt, press ENTER The most significant digit in the K factor will begin to flash Using
▲ increment the
display digit until it matches the meter’s first K factor digit If the current selection is correct, press
► to advance to the next
digit Repeat this process until all K factor digits have been entered Press ENTER to save the K factor
OTE:
N
The number of digits available before and after the decimal point is determined by the bore size of the flow sensor
being used The largest K factors will be associated with the smallest bore sizes The maximum allowable K factor
is 99999 9 The minimum must be at least 1 000 If an out of range number is entered the display flashes Limit and
refuses to allow the entry
