Instruction Manual CON 6/TDS 6
9
3.5 Connecting the Probe to Meter
1) To connect electrode into meter, align the connector slots with the posts
of meter‟s socket and rotate connector clockwise until it locks.
2) To remove, simply rotate the connector in anti-clockwise direction until it
unlocks, and slide the connector off the socket.
3) Insert the mini phono jack of temperature sensor into the socket on the
meter as shown below.
4) Unplug the phono jack when not in use or when you want to measure
Conductivity or TDS without any temperature compensation (Manual
Temperature Compensation, see Section 5.2).
CAUTION: Do not pull or force on the probe cord or the probe
wires might disconnect.
NOTE: Keep connectors clean. Do not touch connector with
soiled hands.

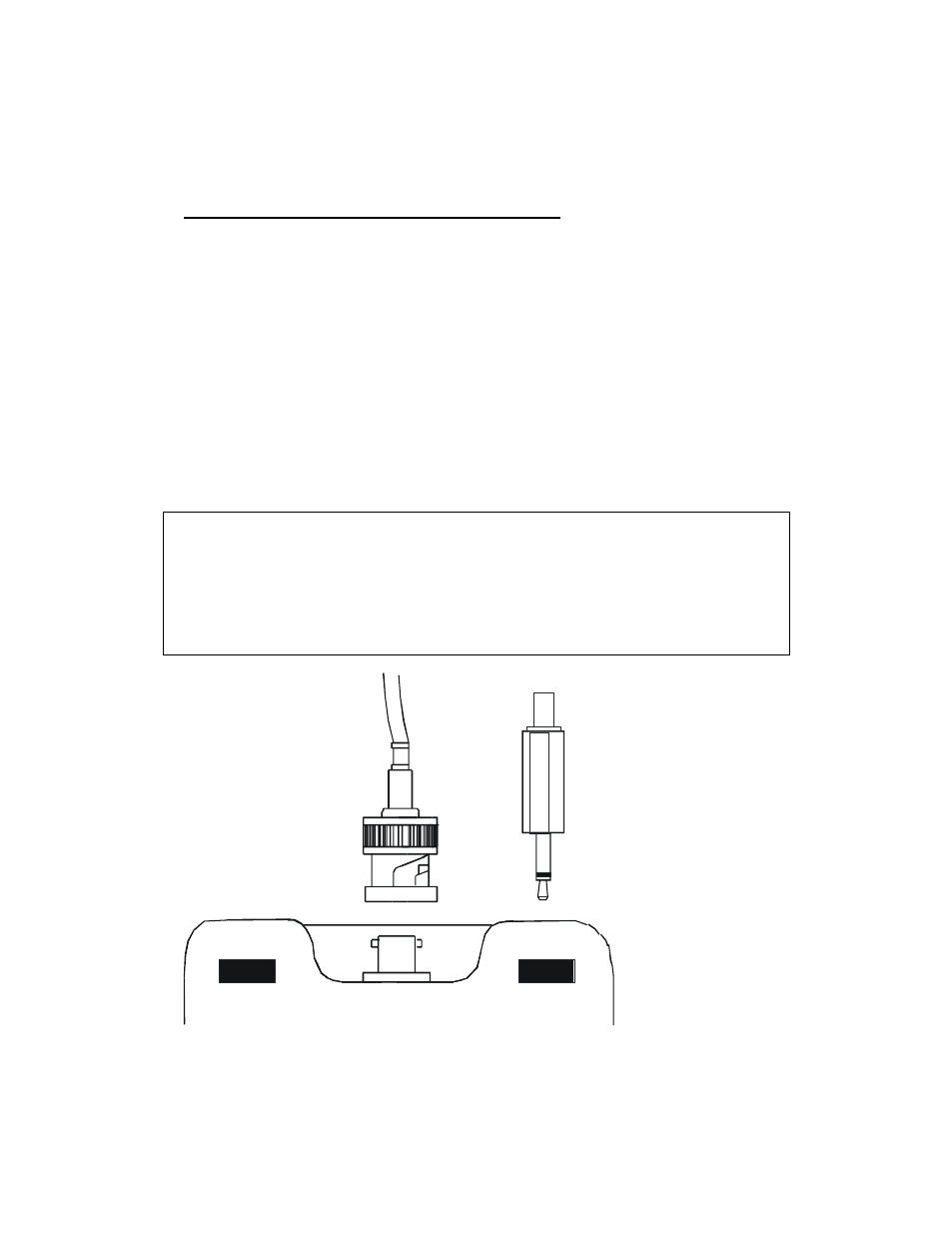

BNC connector for
conductivity probe
Phono jack for
Temperature probe
Connection for Conductivity & Temperature Probes
