SHIMPO DT-329 User Manual
Page 8
5

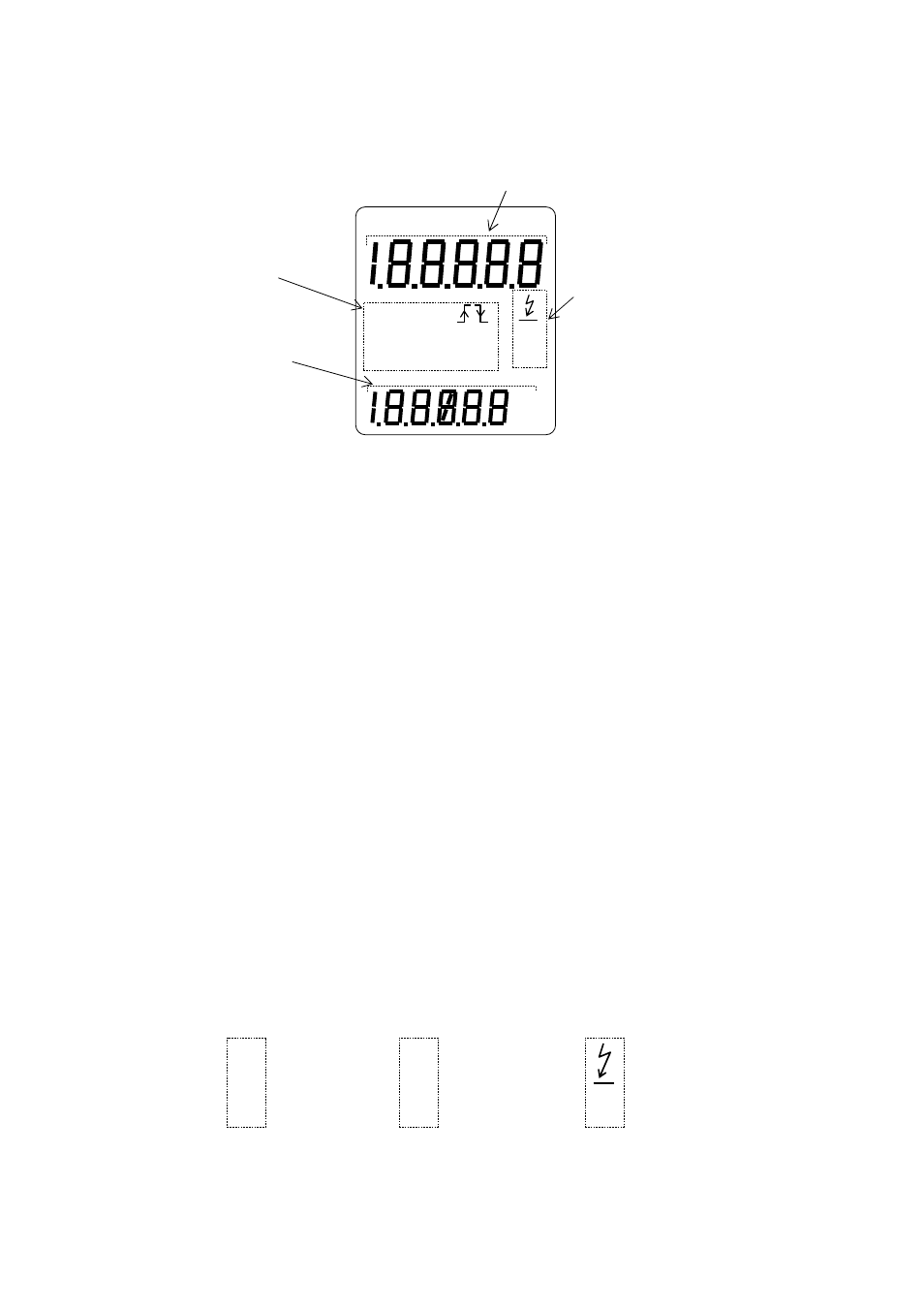

3.3 LCD Display
3.3.1 Display Names and Descriptions
3.3.2 Main data display
-Internal flashing mode: Displays flash rate.
-External trigger mode: Display external trigger frequency.
-*Parameter setting mode: Display LCD backlight setting (“P” or “LCD”)
*Refer to section 4.5 for detail.
3.3.3 Sub data display
Internal Flash Mode Display
-To change the degrees of phase shift, press PHASE + or PHASE - keys. The display will reflect the
cumulative angle of phase shift.
-“Flash Time” will be displayed when FOCUS key is pressed. The flash time (pulse flash duration) can then
be set using the dial to increase or decrease the flash time from 0 to 1.0 (0 - 1.0°).
External Trigger Mode Display
- Displays delay time setting. Refer to section 4.4.2 for detail.
*Parameter Mode Display
-Displays the following:
-Selected measuring range
-Delay time (in ms)
-Backlit LCD (ON or OFF)
*Refer to 4.5 “Parameter setting mode” for detail.
3.3.4 Units of Measure: Display
Digital display will show the following according to the unit of measure setting.
Main data display
Sub data
Setting project
Unit
Unit set to FPM
(flashes/minutes)
Unit set to Hz
min
Hz
min
Min
Ｈｚ
Ｈｚ
Ｈｚ
Ｈｚ
Flashing
(Blinking)
Auto Range
Trigger
Divider
Edge Delay Deg
Flash Time
Mem
AveLastMinMax
Ave Last Min
min
sec
h
Hz
ms
○○○○
