3. DESIGNATIONS

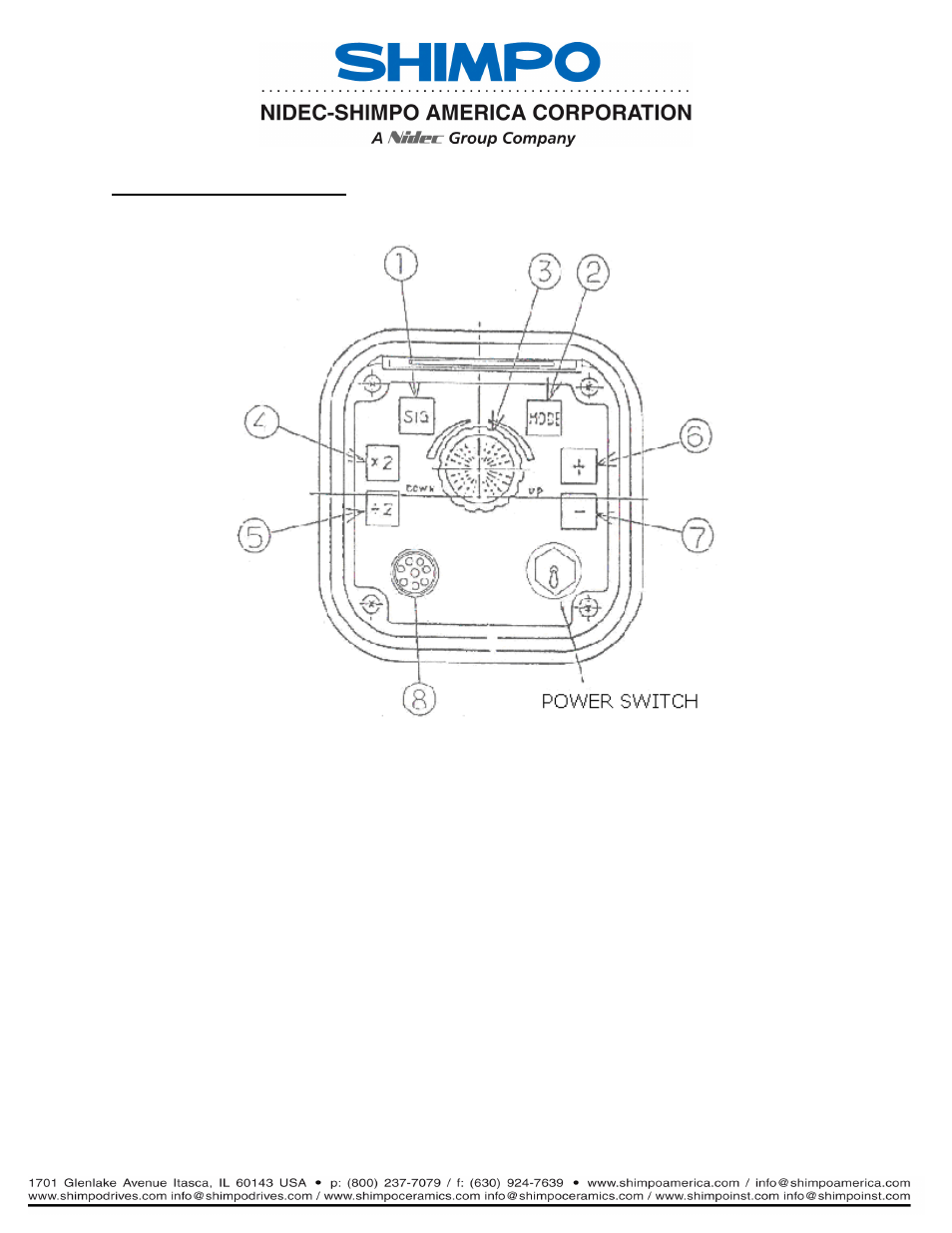

1. SIGNAL SWITCH
When the SIG button is depressed, the unit switches from the external
mode to the internal mode and vice-versa and the appropriate LED
lights.
2. MODE SWITCH
When the unit is switched to external mode, every time the mode
button is depressed, the strobe will move; rpm(fpm)-deg-m.sec.
rpm(fpm) ---- displays flashes per minute
External input: 100~3,000 FPM
deg ---- displays flash delay in degrees
m.sec ---- displays the flash delay in m.sec.
