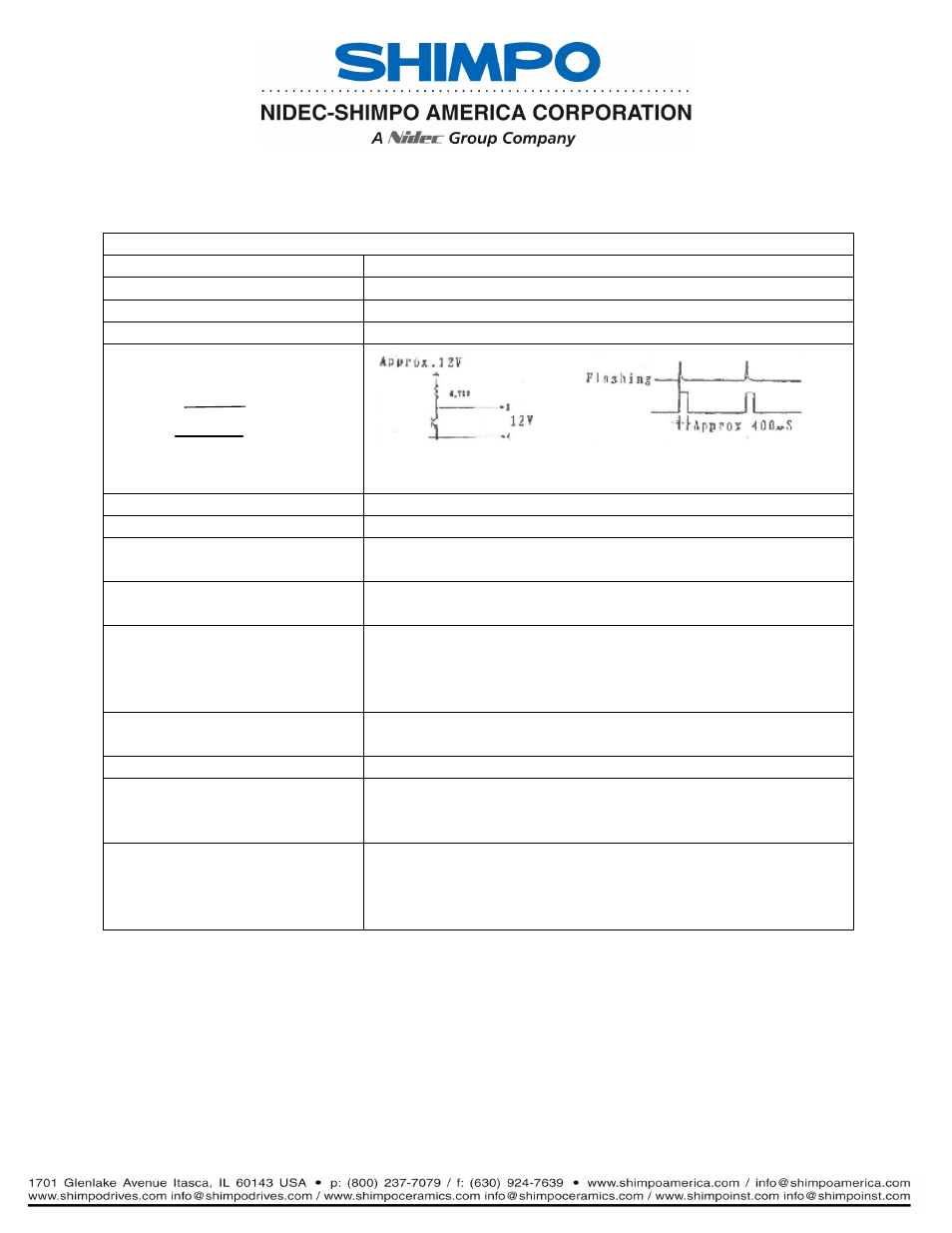

SPECIFICATIONS DT-315P
INTERNAL SIGNAL MODE
FLASHING RANGE
60.0~3,300FPM
DISPLAY ACCURACY ± 0.01%
DRIFT ± 0.01% (at 0 ~ 40°C)
UPDATE TIME (Approx.) 0.2 seconds
TONE OUTPUT SIGNAL
OTHER FUNCTIONS x1/2. x2 Flashings, Phase shift adjustment
EXTERNAL SIGNAL MODE
FLASHINGS
In synchronous mode: 60~3,000FPM
In delay mode: 200~3,000FPM
DELAY ANGLE SETTING
RANGE (In delay mode)
0~359° Set by 1°
DISPLAY
RPM in synchronous: e, 60~3,000FPM
DELAY ANGLE in delay mode 0~359°
or 0~300mS conversion display
DISPLAY ACCURACY ± 0.01% plus ±1 digit in synchronous mode
+0 -0.2mS plus ±1 digit in delay mode
UPDATE TIME 1 second
H level 2.5~12V *50µS or over for H.L level
INPUT SIGNAL L level 0~0.4V *Trigger at rising edge
*Approx. 10KΩ impedance
Operate by built-in battery: 6.8~11.0V
SENSOR POWER Operate by adapter: 10.2~12.2V
Operate by DC: 9~14.5V: 7.8~14.1V
