Atlantis Land A02-RAV260-W54 - Manual (Page 94)

VoIPMaster 260W
88
0
100
200
300
400
500
kbps
VoIP/VPN
HIGH
Others
NORMAL
Restricted
LOW
Throughput
VoIP/VPN
HIGH
Others
NORMAL
Restricted
LOW
Mission-critical application

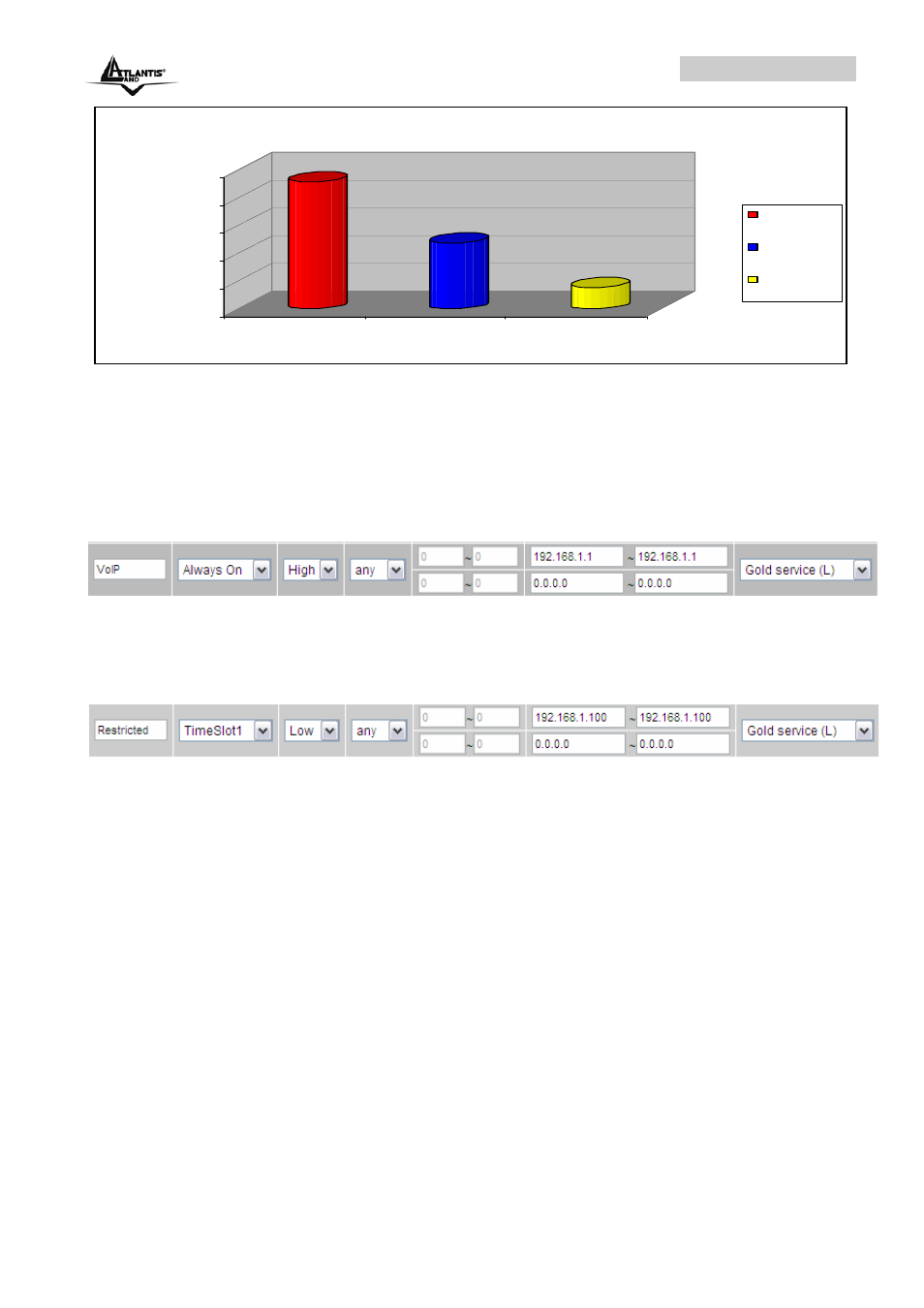

The mission-critical application must be sent out smoothly without any dropping. Set priority
as high level for preventing any other applications to saturate the bandwidth.
Voice application
Voice is latency-sensitive application. Most VoIP devices are use SIP protocol and the port
number will be assigned by SIP module automatically. Better to use fixed IP address for
catching VoIP packets as high priority.
Above settings will help to improve quality of your VoIP service when traffic is full loading.
Restricted Application
Some of companies will setup FTP server for customer downloading or home user sharing
their files by using FTP.
With above settings that help to limit utilization of upstream of FTP. Time schedule also help
you to only limit utilization at daytime.
Advanced setting by using IP throttling
With IP throttling you can specify more detail for allocating bandwidth; even the applications
are located in the same level.
Upstream: 928kbps (29*32kbps)
Mission-critical Application: 192kbps (6*32kbps)
Voice Application: 128kbps (4*32kbps)
Restricted Application: 160kbps (5*32kbps)
Other Applications: 448kbps (14*32kbps)
6+4+14+5=29, 29*32kbps=928kbps
