VPI and VCI: Enter the information provided by your ISP.

ATM Class:

The Quality of Service for ATM layer.

Encapsulation method: Select the encapsulation format, this is provided by your ISP.

Acceptable Frame Type: Specify what kind of traffic can through this connection, all traffic
or only VLAN tagged.

Filter Type: Specify the type of ethernet filtering performed by the named bridge interface.

All

Allows all types of ethernet packets through the port.

Allows only IP/ARP types of ethernet packets through the port.

Pppoe

Allows only PPPoE types of ethernet packets through the port.

PVID for Untagged Frames: PVID is known as Port VLAN Identifier. When an untagged
packet is received by input port(s), this packet will be tagged with specified PVID.

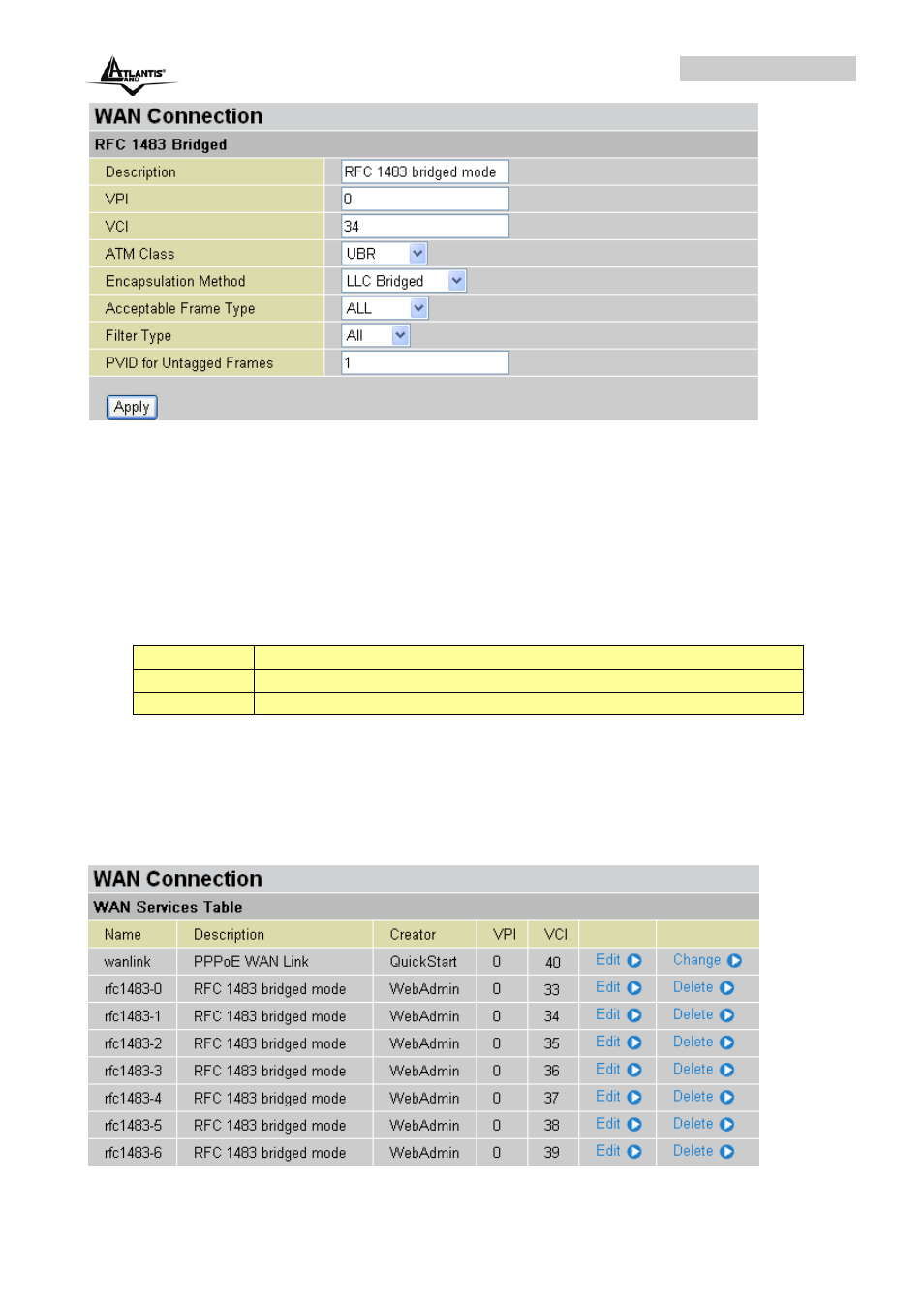

From the example, VPI and VCI only section need to be filled-in and just leave the rest as is.
Repeat the same procedure by clicking Create Æ select RFC1483 Bridged Æ fill-in the rest
of PVC 0/34 to 0/39.
