Atlantis Land A02-RAV260-W54 User Manual

Page 66

VoIPMaster 260W

• Add Raw IP Filter: Click this button to add a new Protocol Filter.

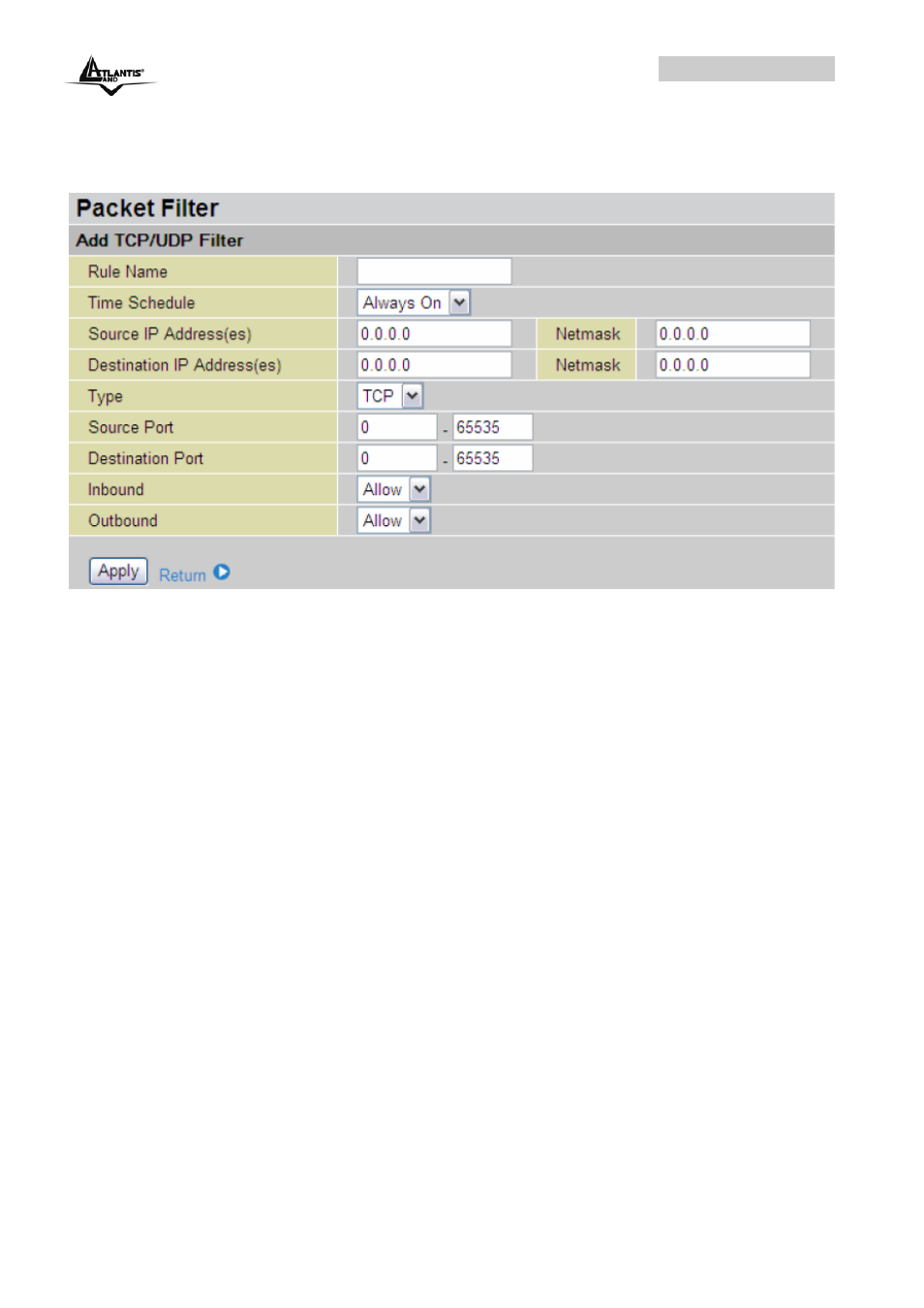

• Packet Filter Rules: On this table, you see packet filter rules; you can click on Edit to

modify rule or Delete

• Rule Name: Insert rule name; rule name must be different
• Time Schedule: It is self-defined time period. You may specify a time schedule for your

prioritization policy. For setup and detail, refer to Time Schedule section

• Source IP Address(es) / Destination IP Address(es): This is the Address-Filter used

to allow or block traffic to/from particular IP address(es). Selecting the Subnet Mask of
the IP address range you wish to allow/block the traffic to or form; set IP address and
Subnet Mask to 0.0.0.0 to inactive the Address-Filter rule.

• Type: Specify the packet type (UDP or TCP) that the rule will be applied to.
• Source Port: This Port or Port Ranges defines the port allowed to be used by the

Remote/WAN to connect to the application. Default is set from range 0 ~ 65535. It is
recommended that this option be configured by an advanced user.

• Destiantion Port: This is the Port or Port Ranges that defines the application.
• Inbound / Outbound: Select Allow or Block the access to the Internet (“Outbound”)

or from the Internet (“Inbound”).
