VoIPMaster 260W
101

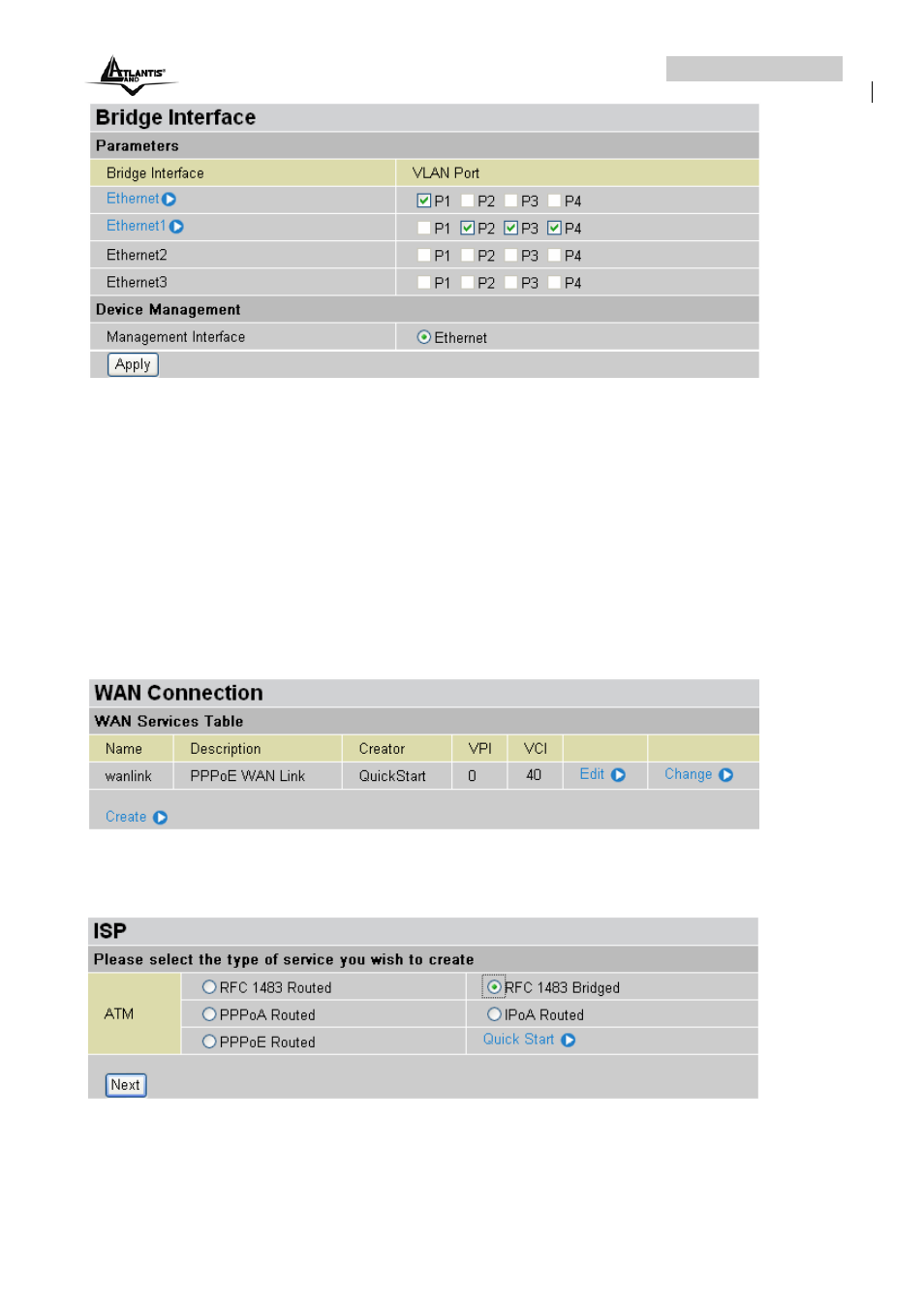

Step 2: Create WAN Interface
Go to Configuration Æ WANÆ ISP
wanlink is the factory default WAN interface which in service for data/internet access. If your
ISP uses this access protocol, click Edit to input other parameters if needed. If your ISP
does not use PPPoE, you can change the default WAN connection entry by clicking Change.
From the example, 0/40 is used for data/internet and assumes PPPoE is used; click the Edit
to change the VPI/VCI to 0/40.
Click Create to setup up additional WAN interface for video applications. Total of 8 VLAN is
support; therefore, only 8 WAN interfaces can be created in the table.
From the example, PVC 0/33 to 0/39 is assigned for video using 1483 Bridged mode. Check
RFC 1483 Bridged and click Next to continue the setup.
Spaces next to VPI and VCI, type 0 and 33 in respectively. Select appropriate ATM Class,
Encapsulation Method, Acceptable Frame Type, Filter Type and PVID for Untagged Frames.
