VoIPMaster 260W
50

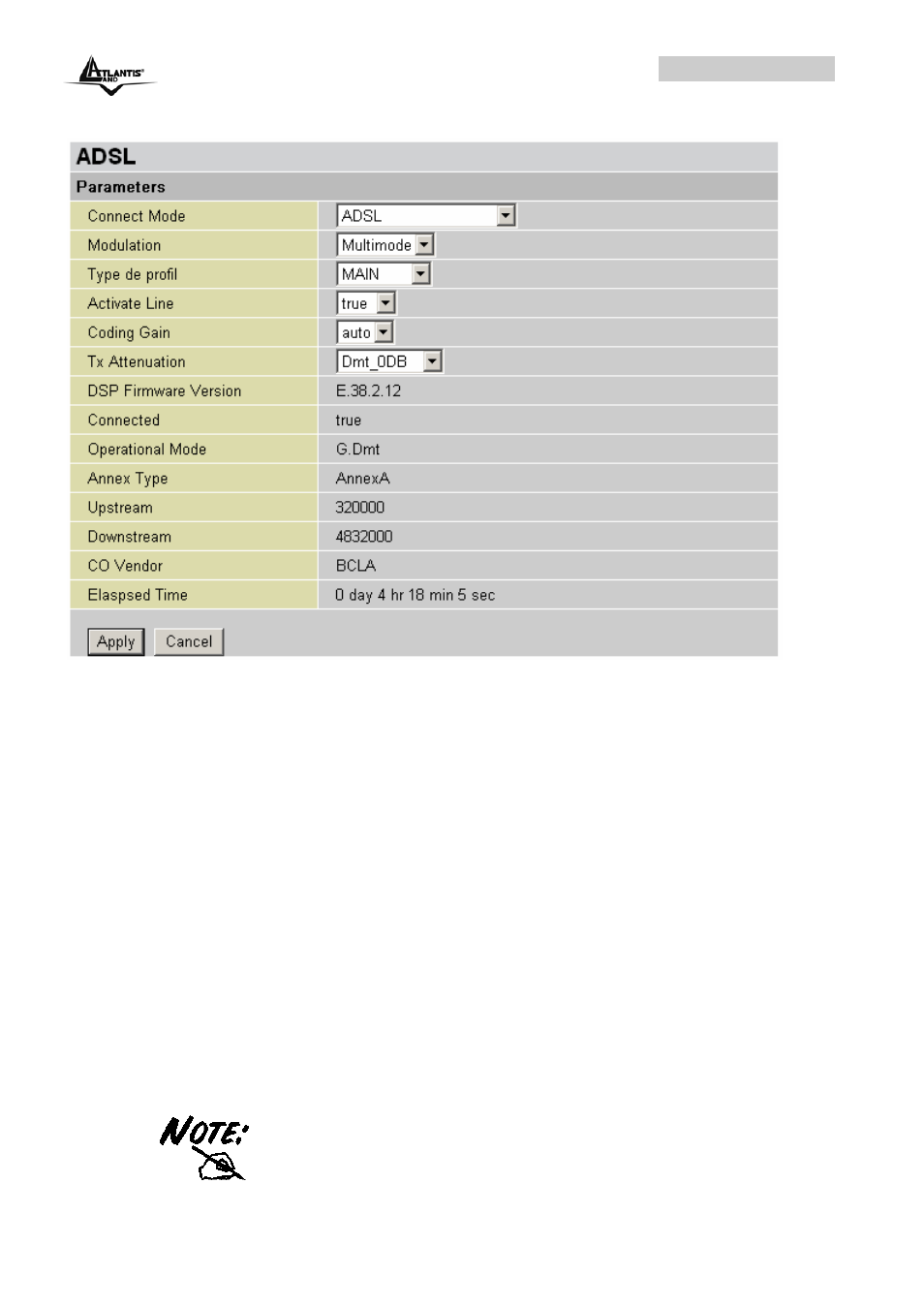

3.6.3.2.3 ADSL
• Connect Mode: There are three modes ”ADSL”,”ADSL2”and”ADSL2+” that user can
select for this connection.
• Modulation: The default is Multimode; it will detect the ADSL line code, G.dmt, G.lite,
andT1.413 automatically. But in some area, it cannot detect the ADSL line code well. At
this time, please adjust the ADSL line code to G.dmt or T1.413 first. If it still fails, please
try the other values such as ALCTL, ADI, etc.
• Activate Line: Aborting (false) your ADSL line and making it active (true) again for
taking effectwith setting of Connect Mode.
• Coding Gain: Select to Coding gain from 0 to 7 dB or leave to auto
• Tx Attenuation: Setting ADSL transmission gain, the value is between 0~12.
• DSP Firmware Version: DSP code version
• Connected: Display current ADSL line sync status.
• Operational Mode: To show the state when user select “AUTO” on connect mode.
• Annex Type: To show the router’s type, e.g. Annex A, Annex B
• Upstream: Upstream rate
• Downstream: Downstream rate
• CO Vendor: Show your DSLAM Vendor
• Elapsed Time: Show ADSL activity time from last syncronization
If the ADSL Led flashes periodically You have to force modulation.
Click on Configuration, WAN then ADSL. On the combo-box
Connection Mode please choose ADSL. Press Apply and then click
on Save Config to Flash.
