VoIPMaster 260W
8
LINE
Lit when the inbound and outbound calls transmitted through
PSTN.
VoIP Lit when SIP registration is OK.
ADSL Lit when successfully connected to an ADSL DSLAM.
PPP/MAIL
Steady glow when there is a PPPoA / PPPoE connection.
Blinking if there is a new incoming mail.

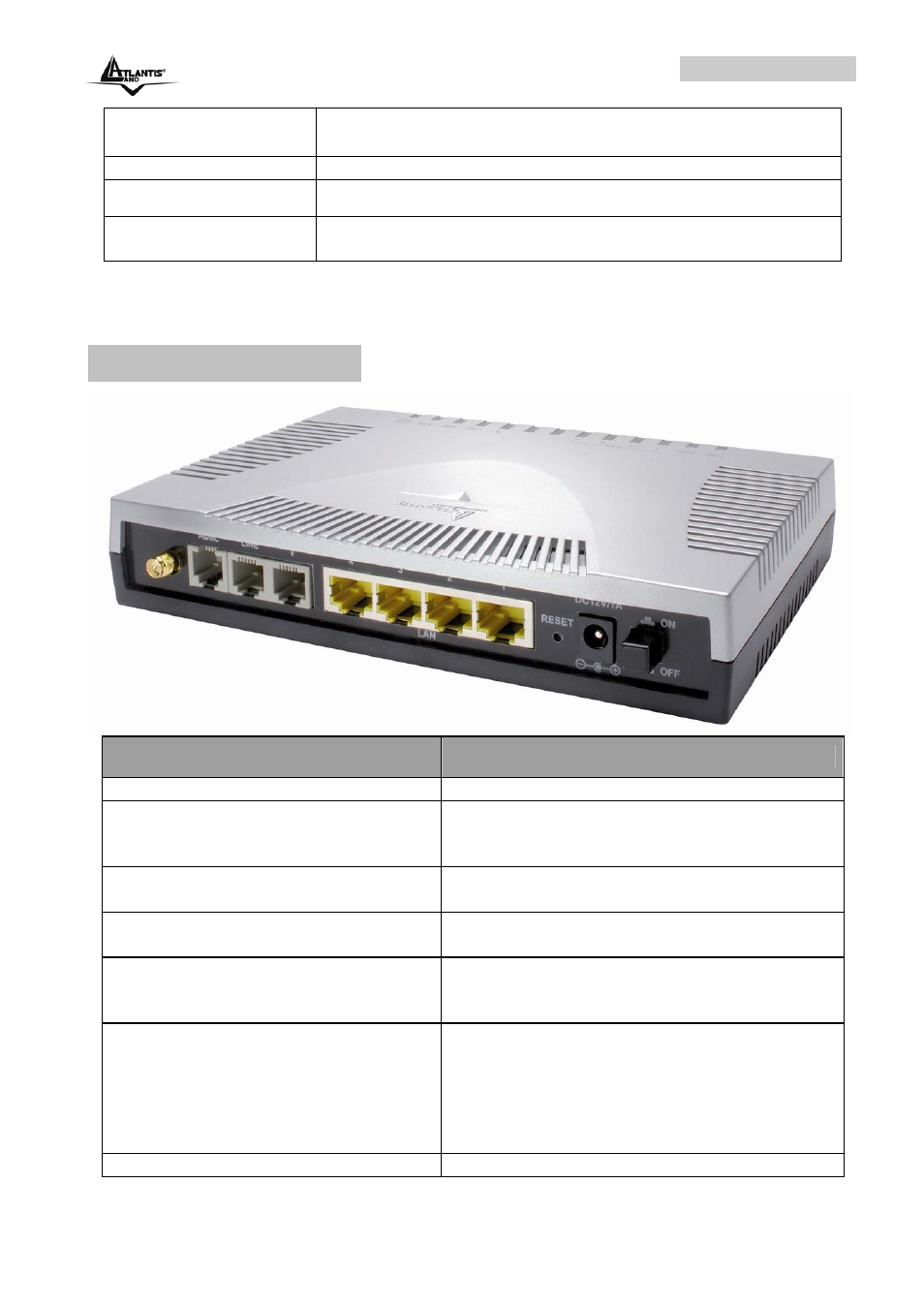

2.3 The Rear Ports
PORT Meaning
Antenna (R-SMA) Connect the detachable antenna to this port.
ADSL (RJ11) Connect the supplied RJ-11 cable to this port
when connecting to the ADSL/telephone
network.
LINE (RJ11) Connect RJ-11 cable to this port when
connecting to the telephone wall jack.
PHONE (RJ11) Connect RJ-11 cable to this port when
connecting to an analog phone set.
LAN (4 *RJ-45) Connect an UTP Ethernet cable to one of the
four LAN ports when connecting to a PC or an
office/home network of 10Mbps or 100Mbps.
RESET Press this button in order to reset the router or
restore configuration.
Refeer to the following timing:
0-3 seconds: Router reset
3-6 seconds: no action
6 seconds or more: Restore factory settings.
POWER (Jack) Connect the supplied power adapter to this
