VoIPMaster 260W
23

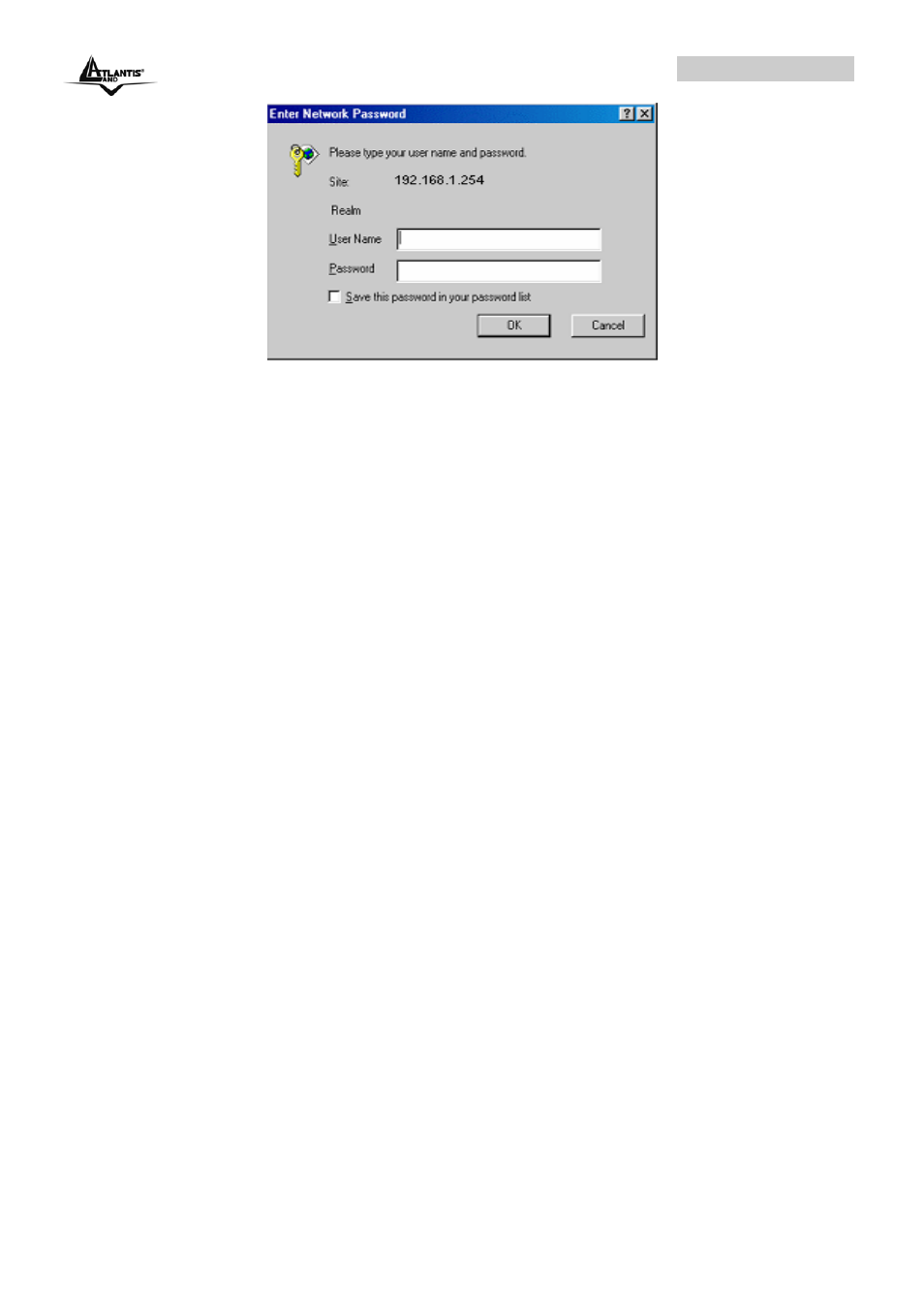

You will get a status report web page when login successfully.
At the configuration homepage, the left navigation page where bookmarks are provided links
you directly to the desired setup page, including:
• Status (ARP Table, Wireless Association, Routing Table, DHCP Table, Email Status,
VoIP Status, Event Log, Error Log, NAT Sessions, Diagnostic, UPnP PortMap)
• Quick Start
• Configuration (LAN, WAN, System, Firewall, VoIP, QoS, Virtual Server, Time Schedule,
Advanced)
• Save Config to Flash
• Language (English, Francais)
Click on the desired item to expand the page in the main navigation page.
3.6.1 STATUS
Status section provides and contains many items including device H/W and S/W information,
LAN, WAN, Port status and all defined interfaces.
It also provides various and useful information for user to exam the status of the device.
• ARP Table
• Routing Table
• DHCP Table
• PPTP Status
• IPSec Status
• L2TP Status
• Email Status
• Event Log
• Error Log
• NAT Sessions
• Diagnostics
• UPnP PortMap
When you click the ARP Table, you will see the data of the IP address of each PC in your LAN
as well as its associated MAC address.
When you click the DHCP Table, you can see the status of the assigned IP addresses with its
associated information.
When you click the PPTP Status, it gives you a quick view to know the ADSL Router’s current
status. The status of PPTP connection will be shown.
