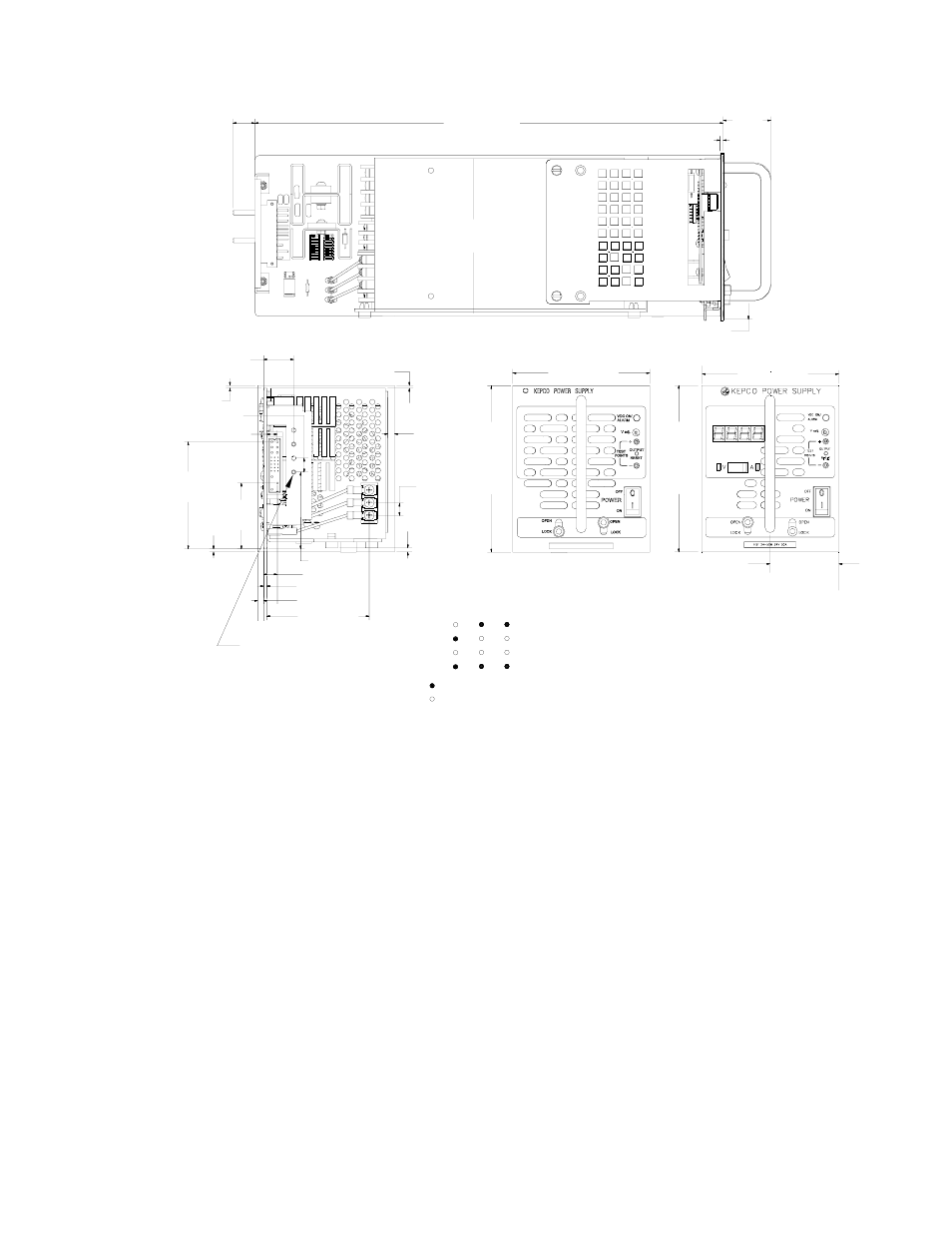

FIGURE 3. MECHANICAL OUTLINE DRAWING OF HSF 1200W/1500W POWER SUPPLY
3. FEATURES
3.1 DIP SWITCH CONFIGURATION
The power supply incorporates two DIP switches, SW1 and SW2 (see Figure 4), which must be
configured before the unit is installed in the rack adapter. The DIP switches control the following
parameters:
• Positions 1, 2, and 7 allow the output to be controlled either by the front panel Vadj con-
trol (see PAR. 3.4.1) or by remote control using either an external trimpot or voltage
source (see PAR. 3.4.2). These positions can also be configured to allow a master/slave
combination to be controlled either by the front panel Vadj control or by remote control
using either an external trimpot or voltage source (see PAR 3.4)
• Positions 3 and 4 either allow the front panel reset button to be used to reset the unit
after a fault or allow Remote on-off via mechanical switch or logic level (see PAR. 3.6) -
• Positions 5 and 6 allows alarm signals to be produced from either internal relay, Form C
contacts (one NO, one NC) or open-collector logical alarm signals (see PAR. 3.8.2).
0.188 [4.8]
0.093 [2.4]
0.093
[2.4]
0.127
[3.2]
0.430 [10.9]
2.065
[52.5]
3.353
[85.2]
0.337 [8.5]
0.085 [2.2]
0.204 [5.2]
0.090 [2.3]
0.943 [23.9]
2.408 [61.2]
0.438 [11.1]
0.394
[10.0]
3.216 [81.7]
FRONT VIEW (M SUFFIX ONLY)
REAR VIEW
3043140
= PIN PRESENT
= PIN MISSING
KEYING
DETAIL "A"
SEE DETAIL "A"
24V 36V
5
.2
1
8
[1
3
2.
5
]
4.288 [108.9]
2.144
[54.46]
5 .0
4 0 [1
2 8 .0
]
0.690 [17.5] 14.667 [372.5]
0.093 [2.4]
1.500
[38.1]
0.606 [15.4]
48V
NOTES:
1. MATERIAL:
A) BACKPLATE 0.064" THK. ALUM. 5052-H32
B) PCB 0.063" THK FR-4
C) FRONT PANEL 0.090 THK. ALUM. 6061-T6
2. FINISH:
FRONT PANEL -KEPCO DUAL TONE GRAY
3. MODULE IS KEYED AS SHOWN IN DETAIL
4. DIMENSIONS ARE IN INCHES, [DIMENSIONS IN
BRACKETS ARE IN MILLIMETERS].
5
.2
1
8
[1
3
2.
5
]
FRONT VIEW
4.288 [108.9]
