Installation
36
Instruction manual SGS
3
is
You must use the longest pipe when calculating the pipe length. For example, if
the chimney pipe is 35 metres and the air supply pipe is 32 metres, use 35
metres as the length for the calculation. Next, add the L
equivalent
for every 90°
and 45° bend to this 35 metres, in both the air supply and flue gas outlet. The
following practical example illustrates how to use the table.
Practical example of parallel flue gas outlet
Example

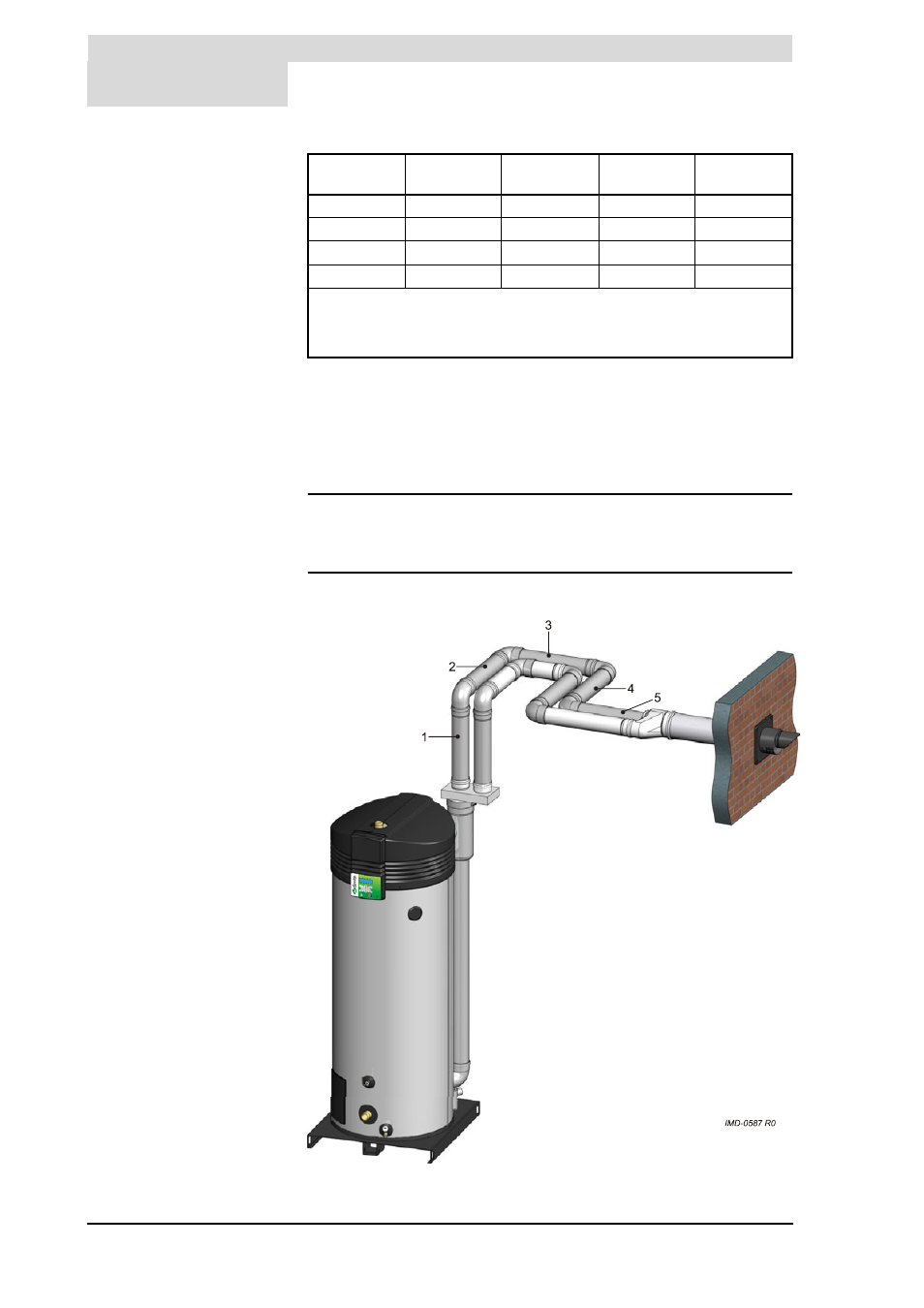

The diagram shows a SGS 30. This has to be fitted with a 25m parallel pipe
100mm in diameter, plus eight 90-degree bends. The configuration must be
checked for compliance with the requirements stated in the table.
Appliance with parallel flue gas discharge material
SGS 28
100mm
100m
4.6m
1.2m
SGS 30
130mm
100m
2.4m
1.4m
SGS 50
130mm
100m
2.4m
1.4m
SGS 60
130mm
100m
2.4m
1.4m
1) Parallel systems with diameter of 130mm or 150mm. If the maximum total
length for a diameter of 130mm is insufficient, 150mm diameter must be used.
Any diameter enlargement must be carried out on both air supply and flue gas
outlet.
Appliance
Diameter
1
Maximum
total length
L
equivalent
90º bend
L
equivalent
45º bend
