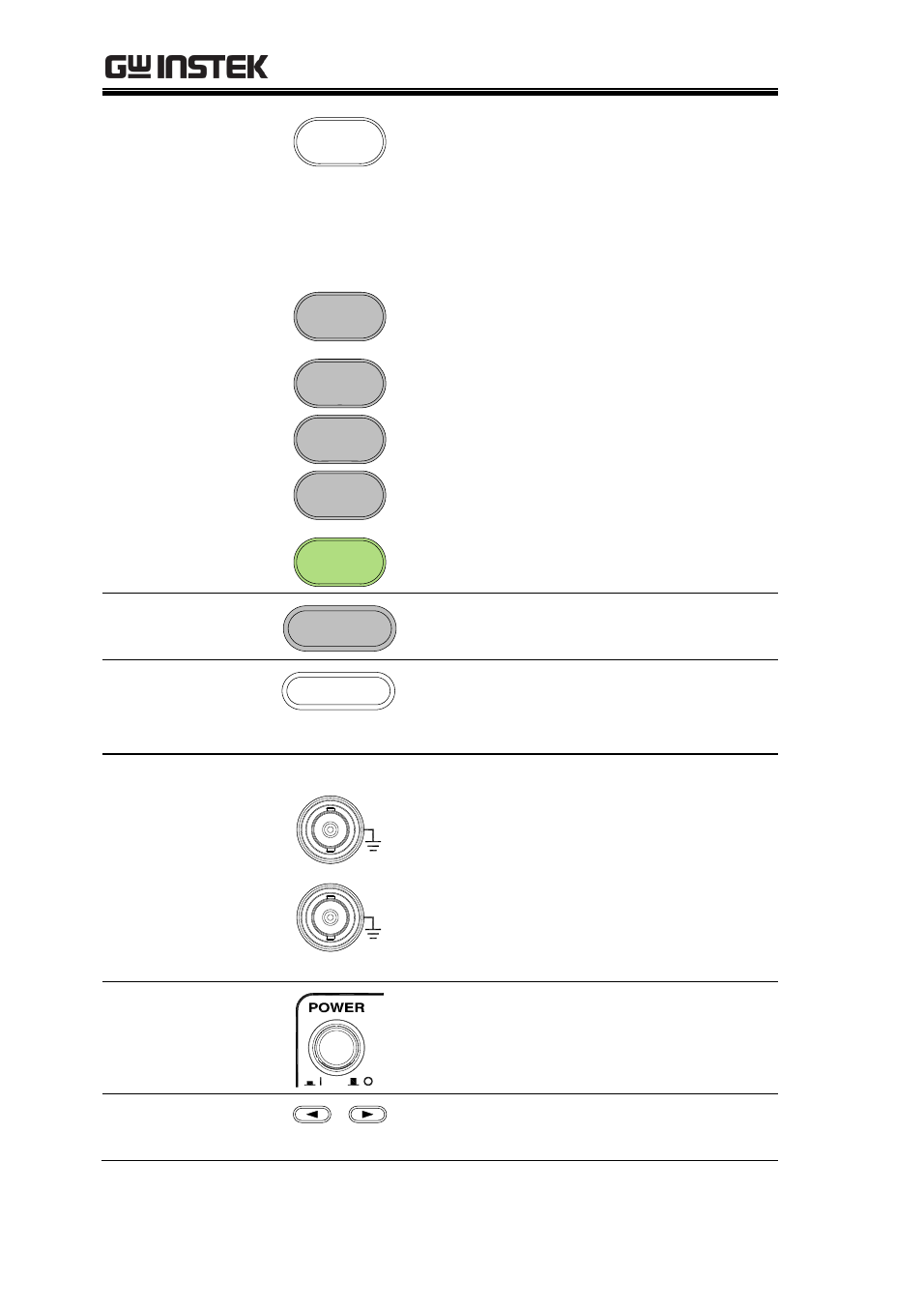

AFG-2225 Quick Start Guide

10



The UTIL key is used to access the
save and recall options, update and
view the firmware version, access
the calibration options, dual
channel settings and frequency
meter.



ARB is used to set the arbitrary
waveform parameters.







The MOD, Sweep and Burst keys
are used to set the modulation,
sweep and burst settings and
parameters.

Preset Key



The preset key is used to recall a
preset state.

Output Key



The Output key is used to turn on
or off the waveform output.

Channel Select
Key



The channel select key is used to
switch between the two output
channels.

Output ports













CH1: Channel 1 output port
CH2: Channel 2 output port

Power Button

Turns the power on or off.

Arrow Keys

Used to select digits when editing
parameters.
