Selecting a waveform, Square wave, Ramp wave – GW Instek AFG-2225 Quick Start Guide User Manual

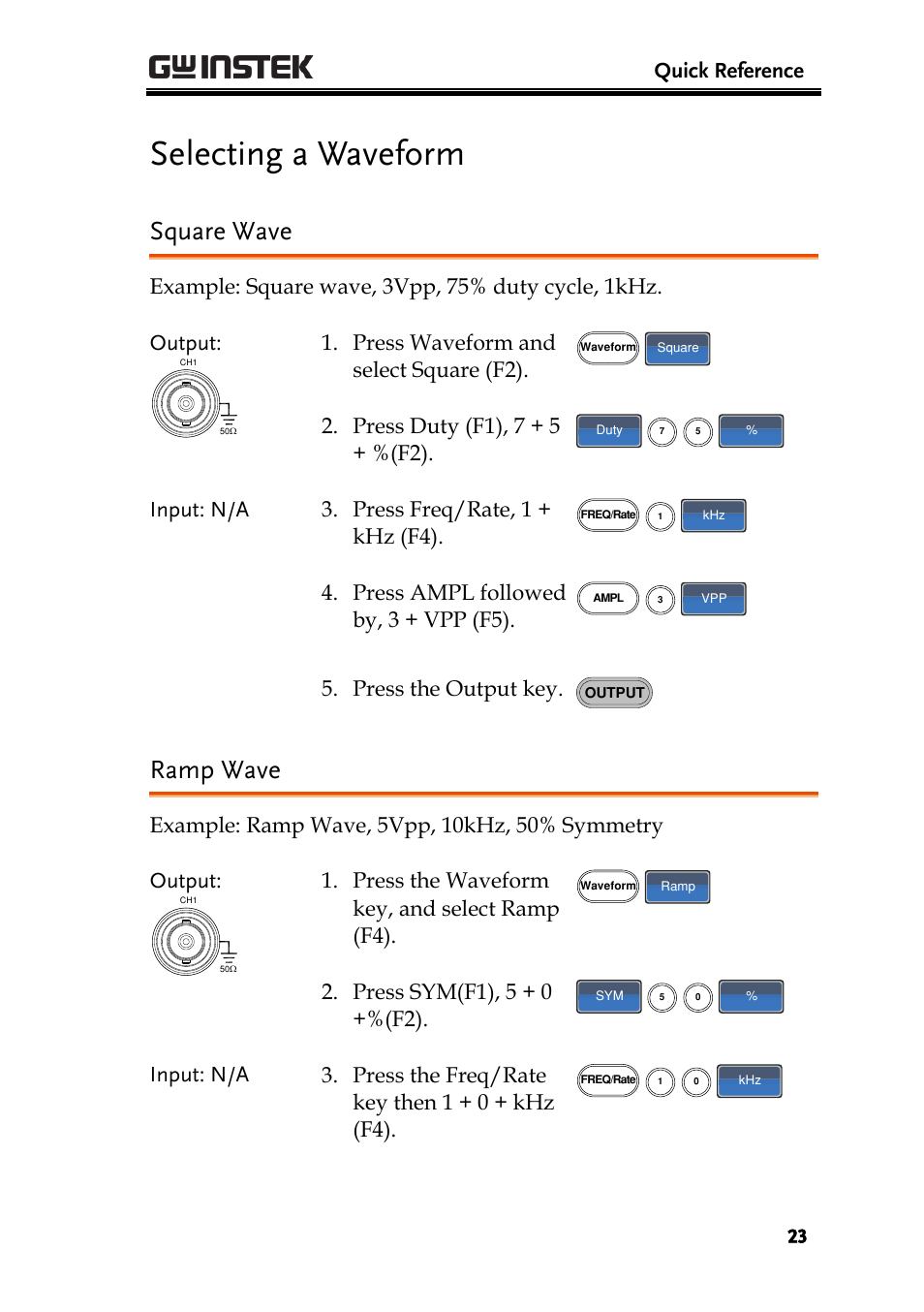

Page 25: Quick reference, Press waveform and select square (f2), Press duty (f1), 7 + 5 + %(f2), Input: n/a 3. press freq/rate, 1 + khz (f4), Press ampl followed by, 3 + vpp (f5), Press the output key, Press the waveform key, and select ramp (f4)
Selecting a waveform, Square wave, Ramp wave | Quick reference, Press waveform and select square (f2), Press duty (f1), 7 + 5 + %(f2), Input: n/a 3. press freq/rate, 1 + khz (f4), Press ampl followed by, 3 + vpp (f5), Press the output key, Press the waveform key, and select ramp (f4) | GW Instek AFG-2225 Quick Start Guide User Manual | Page 25 / 56 See also other documents in the category GW Instek Equipment:
