Configuring 5/10 Zones Fire Panel
Configuring Input/Output
The Input/Output devices include the Zones, NACs, and Relays. You can configure each Zone,
NAC, and Relay.
Zones
In Zones, you can enable or disable each zone, specify its type and location using the Adjective and
Noun or with the Custom Label.
To configure each zone
1.
Select Enable to enable the zone. If you have selected Disable, the zone is disabled by the fire
panel, preventing the zone circuit from reporting alarms and troubles to the panel.

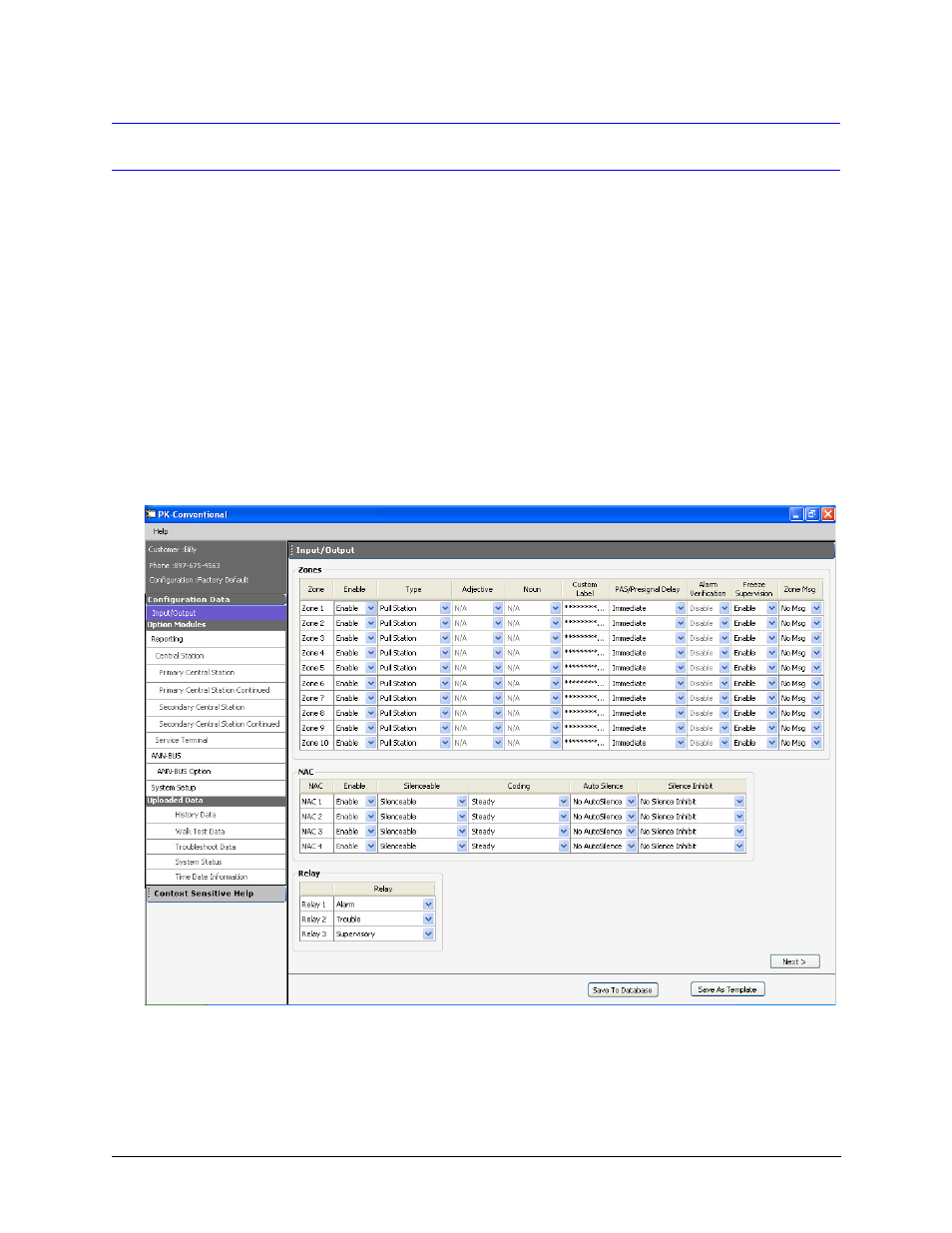

Figure 5-1
Configuring Input/Output
2.
Select the zone Type. For more information about each zone type, see
3.
Select either the Adjective and Noun or only the Custom Label to specify the zone location.
The Adjective and Noun are specific descriptors to identify the zone location. To specify a
custom noun, in Noun, select the CUSTOMNOUN option. When configuring the zones for
