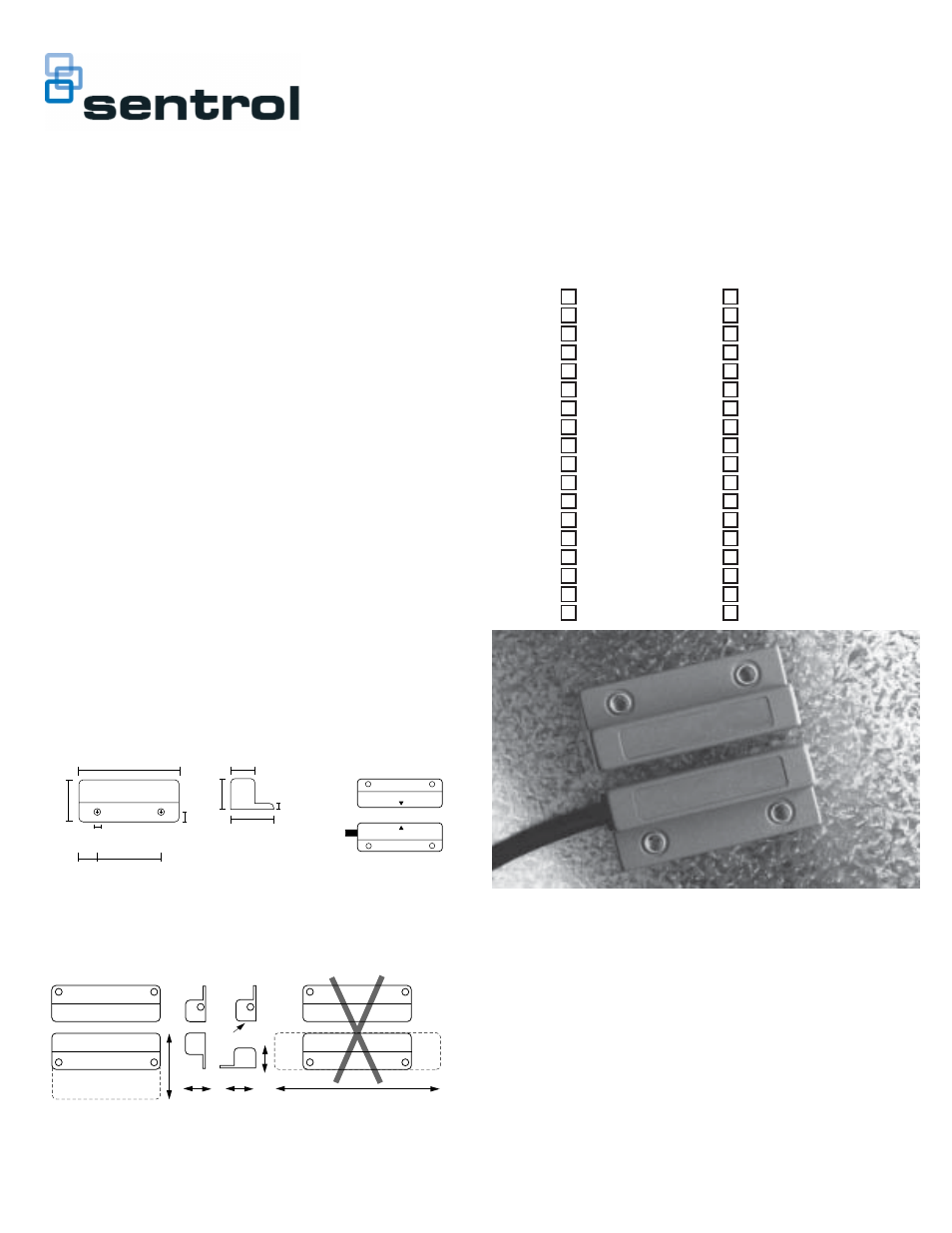

Edwards Signaling 151 Series - Manual

Non-Contact Interlock/Position Switch
151-3Z-06K
151-3Z-12K
151-4Z-03A
151-4Z-06(K)(A)
151-4Z-06J-D4
151-4Z-12K
151-6Z-06K
151-6Z-06K-D6
151-6Z-08A
151-6Z-12K
151-7N-06K
151-7Z-03A
151-7Z-05A
151-7Z-06(K)(A)
151-7Z-06K-D3
151-7Z-06K-D7
151-7Z-12K
151-7Z-12K-D3
Description
151 Series interlock/position switches are specially designed for use in
washdown applications.
Warning! To avoid switch failure determine the actual load of the switch circuit and
take steps to protect the switch from voltage spikes, current inrush and line/load
capacitance using the following recommendations.
• Surges from coils, motors, contactors, solenoids and tungsten filaments. Transient
protection, such as back-to-back zener diodes (Transorb) or an RC network, is
recommended for such loads to ensure that maximum ratings of the switch are
not exceeded.
• Line capacitance and load capacitance. An in-line resistor can be added in series
immediately before the load to limit the inrush current. The resistor can only be
added in series with the last wire just before the load. The voltage drop and the
power rating of the resistor must also be calculated as follows:
Voltage drop = I • R
Watts = I
2 • R
( I = maximum continuous current of the load)
To verify switch operation with an ohmmeter:
Set range at 20 mega ohms (switches with triac output, set ohm range at 20 kilo
ohms). For a normally open switch, the meter will read a high impedance with the
actuator away. It will read very high to infinity range (triac switches will read high kilo
ohm to infinity range) with the actuator within sense range. You will see the opposite
reading for a normally closed switch.
151
153 151-7Z-12K-D7
151-7Z-16K
151-8Z-20K
151-8Z-25K
151-8Z-06(K)(A)
151-8Z-08A
151-8Z-12(K)(A)
151-8Z-15K
151-8Z-16A
151-8Z-20K
151-13Z-06K
151-13Z-12K
151-14Z-06K
151-14Z-12K
151-17Z-06K
151-17Z-12K
151-___________
153-___________
Installation
Use non-removable screws, bolts, or nuts to mount the switch and actuator. Do not
over-torque mounting hardware.
1. Using the following guidelines, determine a suitable mounting location
• The switch and actuator must be within the listed sense range. See Ordering/
Electrical Specifications.
• The actuator must be aligned with the switch— labels facing the same
direction. See Figure 1.
Important: When mounting the 151/153 in proximity to ferrous material (steel),
the sense range can be reduced 50% minimum depending on the shape and
type of material.
Dimensions
2.80''
7.11cm
1.15''
2.92cm
0.23''
0.58cm dia
0.53''
1.35cm
1.75''
4.45cm
0.28''
0.71cm
0.75''
1.91cm
0.63''
1.60cm
1.15''
2.92cm
0.18''
0.46cm
GuardSwitch ™ Series 100
sensing face
sensing face
Figure 1
Figure 2
Best Good Best Not Recommended
Perpendicular
actuation
Pivot
actuation
Door
actuation
Parallel
actuation
Mounting Configurations
Three configurations are appropriate for interlock applications. The parallel actuation
can result in on/off/on signal if the actuator passes by the switch rather than
coming to rest in proximity to it. This is NOT a recommended configuration for
interlock applications.
www.edwardssignaling.com
P/N 11501 • REV F1 • REB 21FEB13
