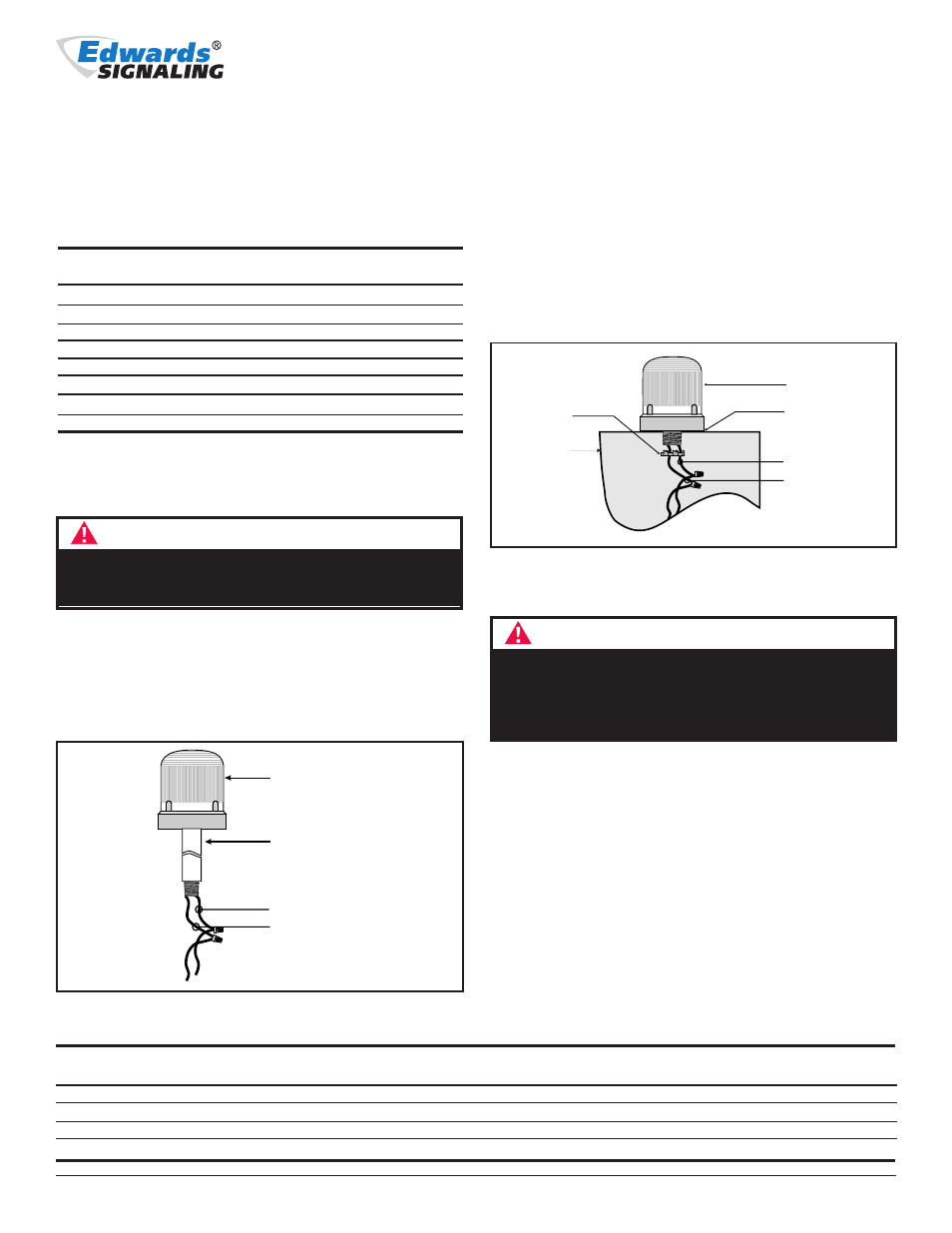

Edwards Signaling 114 Series - Manual

P/N 3100671 ISSUE 1 © 2003
Installation Instructions for Edwards 114 Series
Steady-on and Flashing Incandescent Lights
Description
The Edwards 114 Series Beacons are UL and cUL listed signaling appli-
ances in a NEMA 4X and IP65 rated enclosure. They are available in either
steady-on or flashing incandescent. Separate models are available for sur-
face and pipe mounting. A protective wire guard, Cat. No. 114-GRD or a
180 degree dome block out assembly, Cat. No. 114-DBO are also available.
Specifications
Panel Mounting (Figure 2)
Note: The integrity of the outdoor, NEMA 4X, and IP65 rating on the
panel assembly at the interface with the 114 Series Visual Indicator relies
on the construction and configuration details of the mounting surface.
Installer should evaluate.
1. Place the mounting gasket (supplied) over the hole in the panel and
route the signal wires through the gasket and the hole in the panel.
2. Insert the base through the hole in the panel and screw the locking nut
(supplied), with the raised locking edge facing the mounting surface,
onto the base to secure the beacon.
3. Using wire nuts (not supplied), connect the signal's wire leads as
shown in Figure 2. Polarity must be observed.
Catalog Light Replacement
Number Voltage Current Mounting Type Bulb**
114SSIN*-G1 24V DC 0.61A Surface Steady-on 1692
114PSIN*-G1 24V DC 0.61A 1/2" Pipe Steady-on 1692
114SSIN*-N5 120V AC 0.15A Surface Steady-on 15T7DC
114PSIN*-N5 120V AC 0.15A 1/2" Pipe Steady-on 15T7DC
114SFIN*-G1 24V DC 0.61A Surface Flashing 1692
114PFIN*-G1 24V DC 0.61A 1/2" Pipe Flashing 1692
114SFIN*-N5 120V AC 0.15A Surface Flashing 15T7DC
114PFIN*-N5 120V AC 0.15A 1/2" Pipe Flashing 15T7DC
*Letter in this position indicates lens color: A - amber, B - blue, C - clear,
G - green, or R - red
**All bulb numbers listed are Industry Standard.
Installation
Conduit Mounting (Figure 1)
1. Thread the 12" (45.7 cm) signal wire leads through 1/2" (13mm)
conduit into an approved conduit outlet box.
2. Thread the conduit onto the base of the signal.
3. Using wire nuts (not supplied), connect the signal's wire leads as
shown in Figure 1. Polarity must be observed.
