Edwards Signaling 114 Series Strobe - Manual

P/N 3100634 ISSUE 1 © 2003
Installation Instructions for 114 Series Strobe
Description
The 114 Series Strobe is a UL and cUL listed signaling appliance in a
NEMA 4X and IP65 rated enclosure. Separate models are available for
surface and pipe mounting.
Specifications
Panel Mounting (Figure 2)
Note: The integrity of the outdoor, NEMA 4X, and IP65 rating on the
panel assembly at the interface with the 114 Series Visual Indicator relies
on the construction and configuration details of the mounting surface.
Installer should evaluate.
1. Place the mounting gasket (supplied) over the hole in the panel and
route the signal wires through the gasket and the hole in the panel.
2. Insert the base through the hole in the panel and screw the locking nut
(supplied), with the raised locking edge facing the mounting surface,
onto the base to secure the beacon.
3. Using wire nuts (not supplied), connect the signal's wire leads as
shown in Figure 2. Polarity must be observed.
Catalog Replacement
Number Voltage Current Mounting Strobe
114SST*-EK 12-48V DC 0.350A Surface 114-ST
114PST*-EK 12-48V DC 0.350A 1/2" Pipe 114-ST
*Letter in this position indicates lens color: A - amber, B - blue, C - clear,
G - green, or R - red
Installation
Conduit Mounting (Figure 1)
1. Thread the 12" (45.7 cm) signal wire leads through 1/2" (13mm)
conduit into an approved conduit outlet box.
2. Thread the conduit onto the base of the signal.
3. Using wire nuts (not supplied), connect the signal's wire leads as
shown in Figure 1. Polarity must be observed.
CHESHIRE, CT 203-699-3000 FAX 203-699-3365 (CUST. SERV.) 203-699-3078 (TECH. SERV.)
WARNINGS
To prevent electrical shock, ensure that power is turned
off before installing the signal or performing any
maintenance.

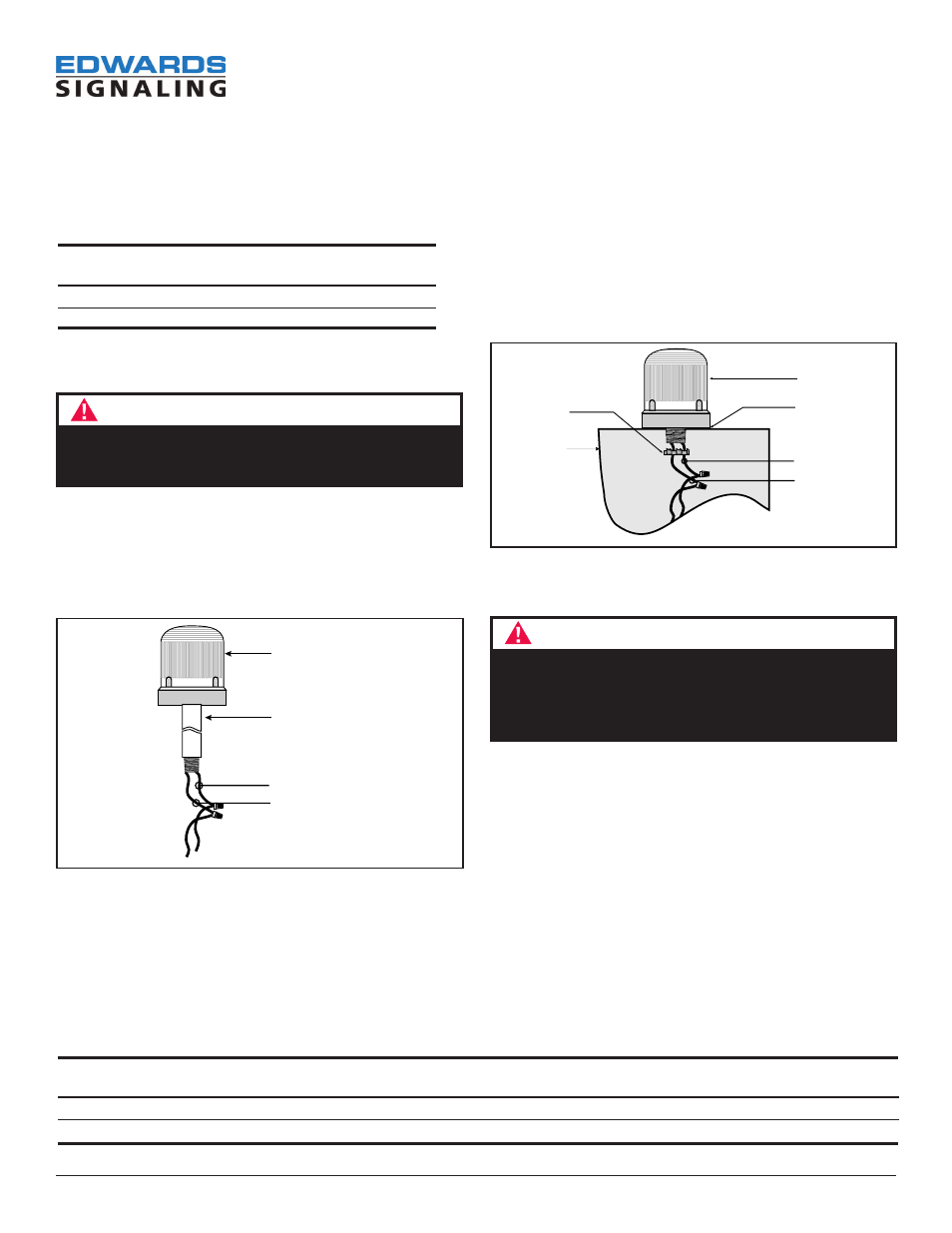

Figure 1. Conduit Mounting
Maintenance
Figure 2. Panel Mounting
Cleaning
The module lens exterior surfaces should be periodically cleaned with a soft
clean cloth using water and a mild detergent to maintain optimum light
visibility. Disconnect power before cleaning.
Light Source Replacement
1. Conduit Mounted Modules: Disconnect wiring and, if necessary,
unscrew base from conduit (Figure 1).
Panel Mounted Modules: Disconnect wiring and remove locking nut
securing the base to the panel (Figure 2).
2. Remove screws securing the lens to the base from bottom of base and
remove lens.
3. Unplug strobe tube and plug in new strobe tube, Cat. No. 114-ST.
Replace lens on base and secure with screws removed in step 2.
WARNINGS
To prevent electrical shock, ensure that power is turned
off before installing the signal or performing any
maintenance.
To avoid risk of injury, install lens before energizing.
Table 1. Programming Logic Controller (PLC) Compatibility: PLC output to meet following product input parameters.
Operating voltage Max. off state Continuous on current Surge (inrush/duration)
Cat. No. (Volts) leakage current (mA) (mA) (Amps/milliSeconds)
114SST*-EK 24V DC 7 350 0.45A / 0.02 ms
114PST*-EK 24V DC 7 350 0.45A / 0.02 ms
114 Series Strobe
1/2" (13 mm) NPT
conduit (not supplied)
Black (DC common)
Red (DC hot)
Gasket
(supplied)
Locking Nut -
1.3625" OD
(supplied)
Control panel
114 Series
Strobe
Black (DC common)
Red (DC hot)
