P/N: 3100611 REV: 5.0
15DEC05 Installation
Sheet
2 / 2
Genesis Ceiling Speaker
4. Mount the unit onto a compatible electrical box. The switch
selector position must be as shown in Figure 3.
5. Replace the cover by positioning the alignment arrows
together and rotating the cover clockwise.
6. Test the unit for proper operation.
S
S
S
PKR
S
PKR
C
C
To next
device or
end of line
device
+
+
To listed
fire alarm
control
panel
Input voltage matching the voltage rating of
the speaker (25 or 70 Vrms)

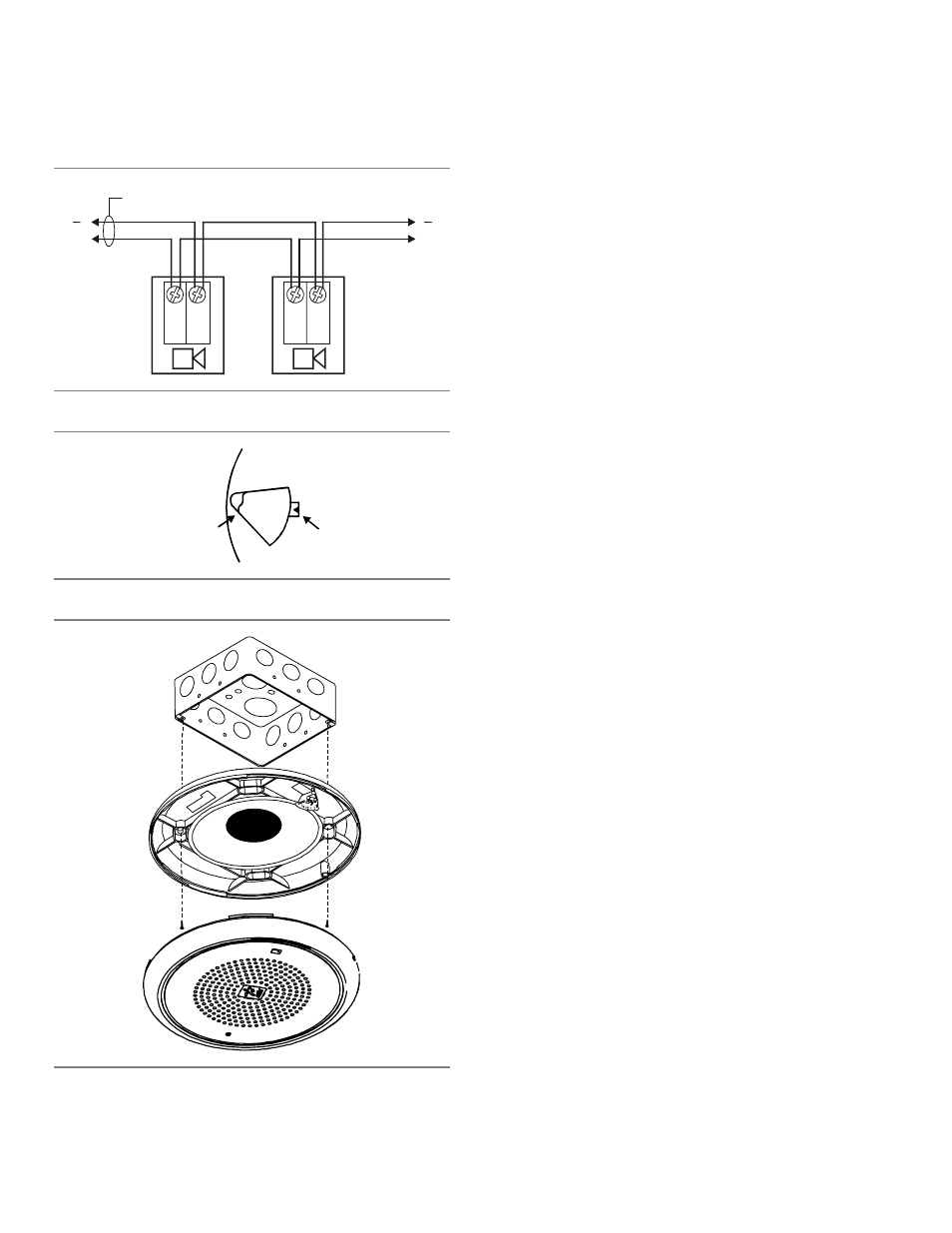

Figure 1: Wiring diagram
2
1
1/
4
1/
2
Wattage switch
Indicator
Figure 2: Wattage switch
Figure 3: Mounting diagram (flush mounted electrical box)
Maintenance
This unit is not serviceable or repairable. Should the unit fail to
operate, contact the supplier for replacement.
Perform a visual inspection and an operational test twice a
year or as directed by the local authority having jurisdiction.
