©2004 GE Security Industrial. GE Security Industrial reserves the right to change specifications without notice.
I-3901-0304 15532 Rev
C
www.ge-security.com/industrial
12345 SW Leveton Drive
Tualatin, OR 97062
Phone: 800-247-9447
Fax: 503-691-7563
GE Security
Industrial

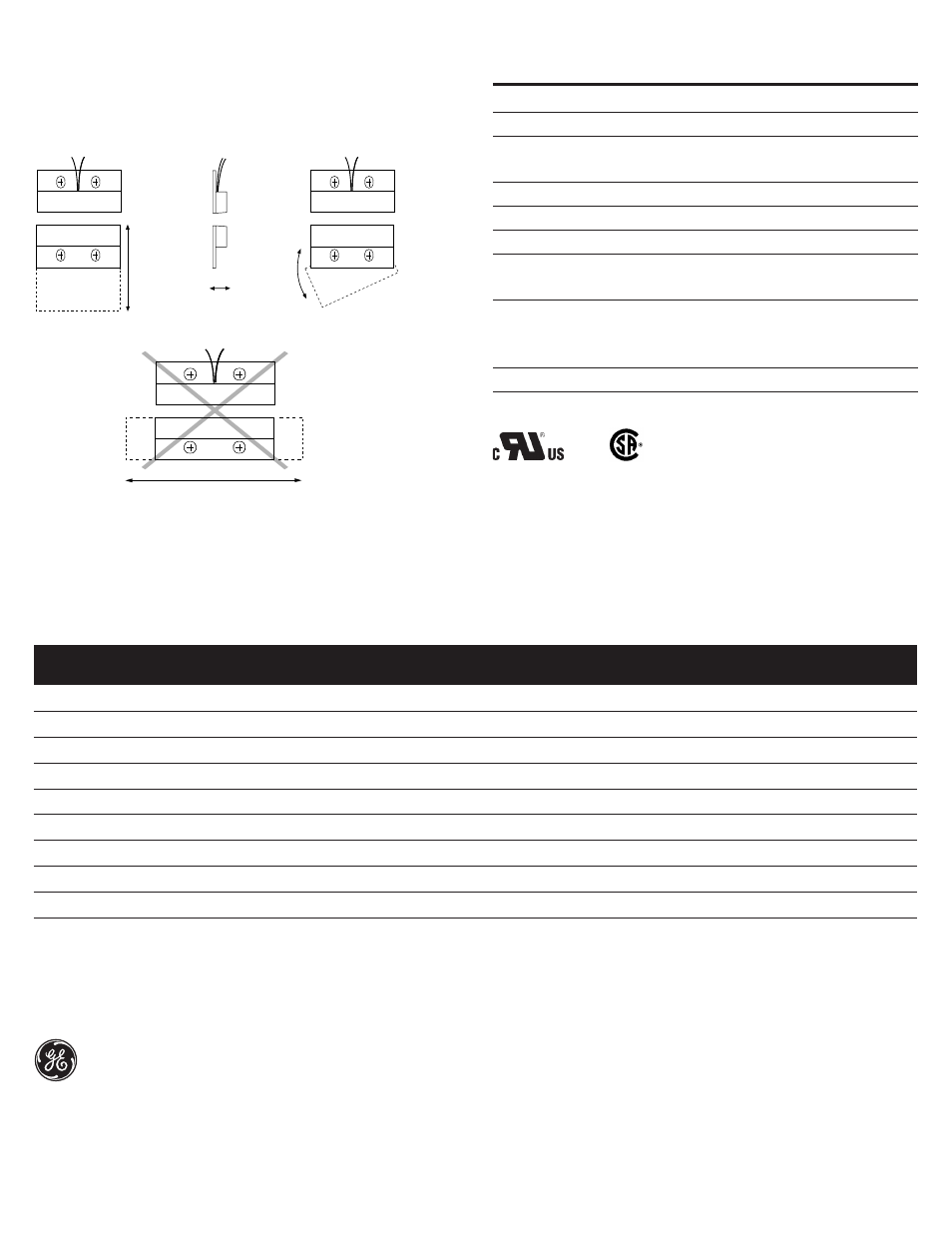

Parallel Actuation
Not Recommended
The interlock switch and actuator magnet should be mounted in only three
configurations for actuation:
Perpendicular
Actuation
Door Actuation
Pivot Actuation
Best
Best
Figure 2
Good
File E 122942
General Specifications
Enclosure
ABS Plastic
Temperature Range
-40
°
F to 180
°
F (-40
°
C to 80
°
C)
Environmental
Hermetically Sealed Contact Switch
Sealed in Polyurethane
NEMA Rating
1, 2, 3, 4, 4X, 5, 6, 12
Protection Class
IP 67
Response Time
1 msec
Life Cycles
100,000 Under Ful Load;
Up to 200,000,000 Under Dry Circuit
Lead Type/O.D.
22/2 Flying Lead (V) AWG/0.05" (0.13cm)
22/3 Flying Lead (V) AWG/0.05" (0.13cm)
Zip Cable (Z)
UL/CSA
All Models
Ordering/Electrical Specifications
PART NUMBER
CONTACT
1
LOAD RATING
SWITCHING VOLTAGE
SWITCHING CURRENT
CONTACT
SENSE RANGE
2
BREAK RANGE
LEAD LENGTH
CONFIG.
AC/DC
MAXIMUM, AC/DC
MAXIMUM, AC/DC
RESISTANCE
NOMINAL
NOMINAL
NOMINAL
104-1U-03V
N.O.
15VA
0.5A@30V
NA
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
3'(0.9m)
104-1U-05Z
N.O.
15VA
0.5A@30V
NA
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
5'(1.5m)
104-1U-06V
N.O.
15VA
0.5A@30V
NA
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
6'(1.8m)
104-1U-15V
N.O.
15VA
0.5A@30V
NA
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
15'(4.5m)
104-1U-20V
N.O.
15VA
0.5A@30V
NA
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
20'(6.0m)
104-2U-03V
SPDT
15VA
120V @0.11A
0.5A@30V
NA
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
3'(0.9m)
104-2U-20V
SPDT
15VA
0.5A@30V
NA
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
20'(6.0m)
104-6U-03V
N.O.
25VA
0.7A@35V
1.0A@25V
0.2 Ohms
0.5"@1.3cm
1.3"@3.3cm
3'(0.9m)
104-U
Actuator Only
Included with all switches unless otherwise noted.
Warning— Each electrical rating is an individual maximum and cannot be exceeded!
1
Configuration with actuator away from the switch
2
Proximity of ferrous materials usually reduces sense range — typically by 50%. The shape and type of material cause a wide diversity of effects.
Testing is required to determine actual sense range for specific applications.
LR89176
Three configurations are appropriate for interlock applications. The parallel
actuation can result in on/off/on signal if the actuator passes by the switch rather
than coming to rest in proximity to it. This is NOT a recommended configuration for
interlock applications.
