8

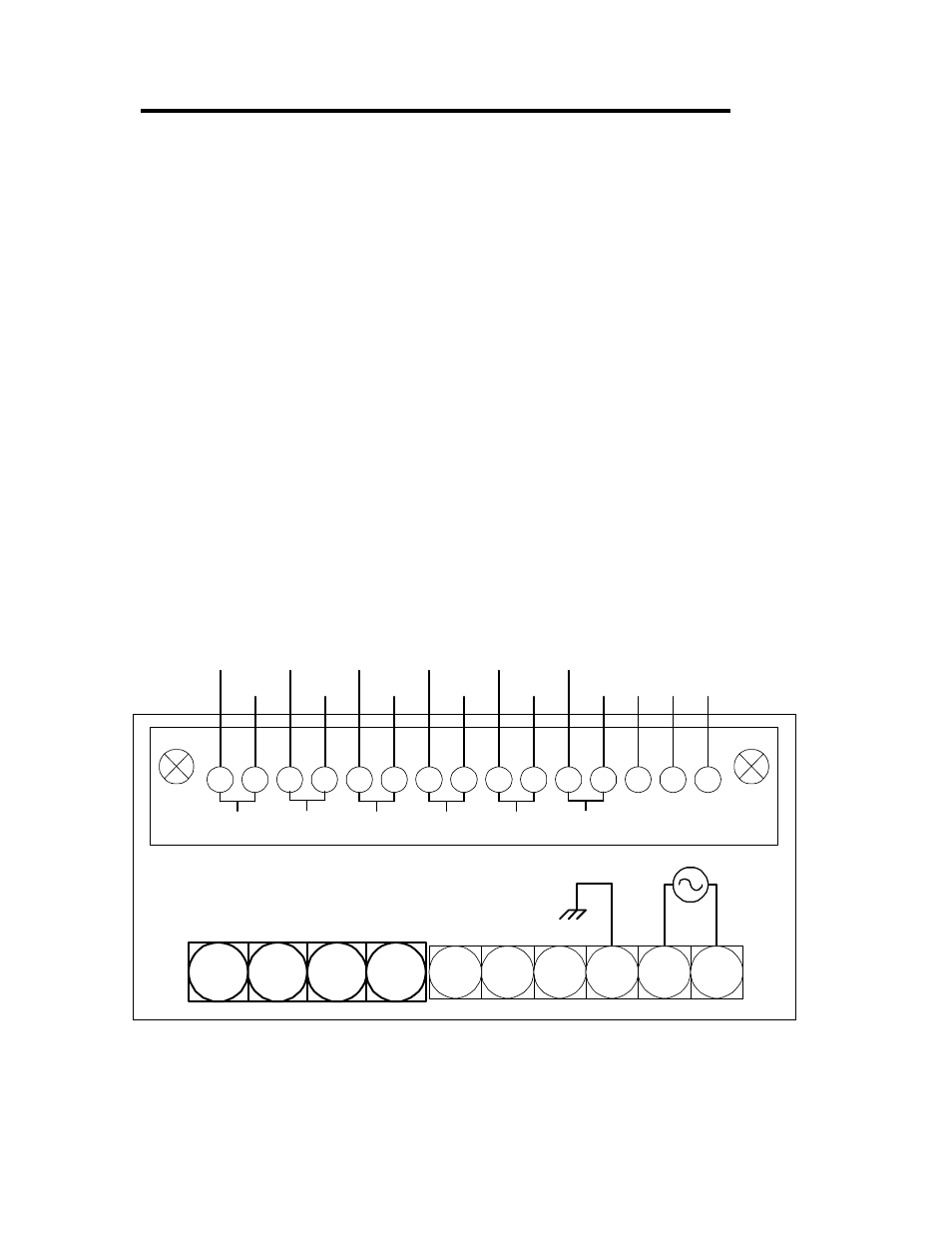

Thermocouple Multiple Input-Wiring
The Multiple Input Option uses a quick disconnect terminal
block to facilitate wire installation and servicing. The
terminal block engages the printed circuit board (PCB)
fingers of the Multiple Input board which fits through the
upper slot located at the rear of the unit. The method of
attachment is the same as for a PCB edge connector: push on/
pull off. If desired you can use the two screws that are
provided for securing the connector to the instrument case.
Note that terminal numbers 13, 14 and 15 are provided for
limit relay contact access.
5 6 7 8 9 10
9 10 11 12 13 14 15 1 2 4 5 6 7 8 3
CH1 CH2 CH3 CH4 CH5 CH6
RELAY NO RELAY NC COMMON
+V
-V
+V
-V
+V
-V
+V +V
-V -V -V
+V
NOT USED
