EMO-500
Operation and Programming Manual
7
Connect Unit to Power
Before connecting to power source, connect ground, neutral and live wires to terminals on back of the
EMO-500 (see diagram below). See shielding information on page 11.
Connect wires to back of unit before applying power and wire the unit only as described on label on back
of unit.

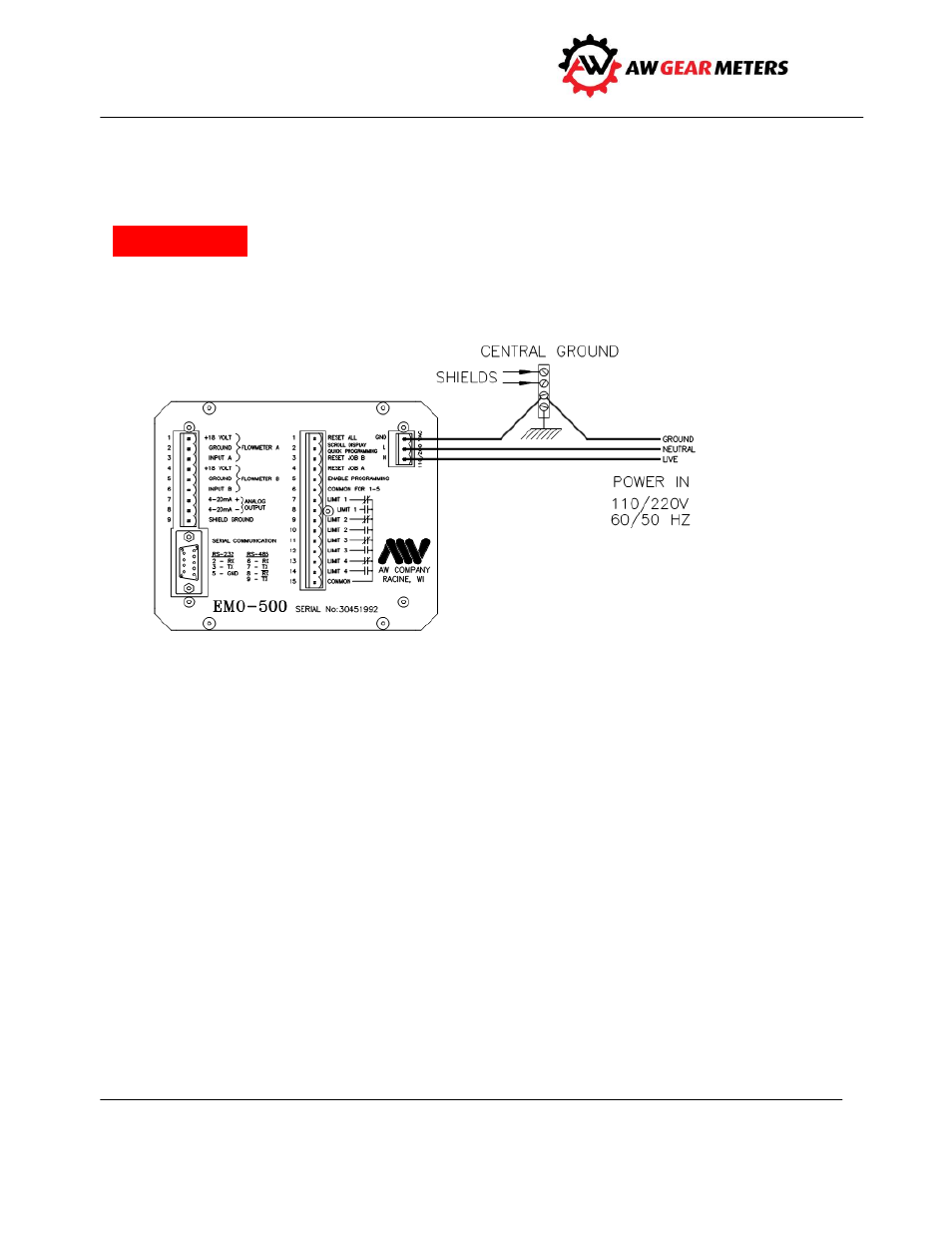

Figure 2: Connections to power
Warning!
