RT‐15 Flow Monitor
Operation and Programming Manual
28
reverts to the Job Total (TA) display). You can reset Total A from this display using the RESET/UP button
(or magnetic switch).

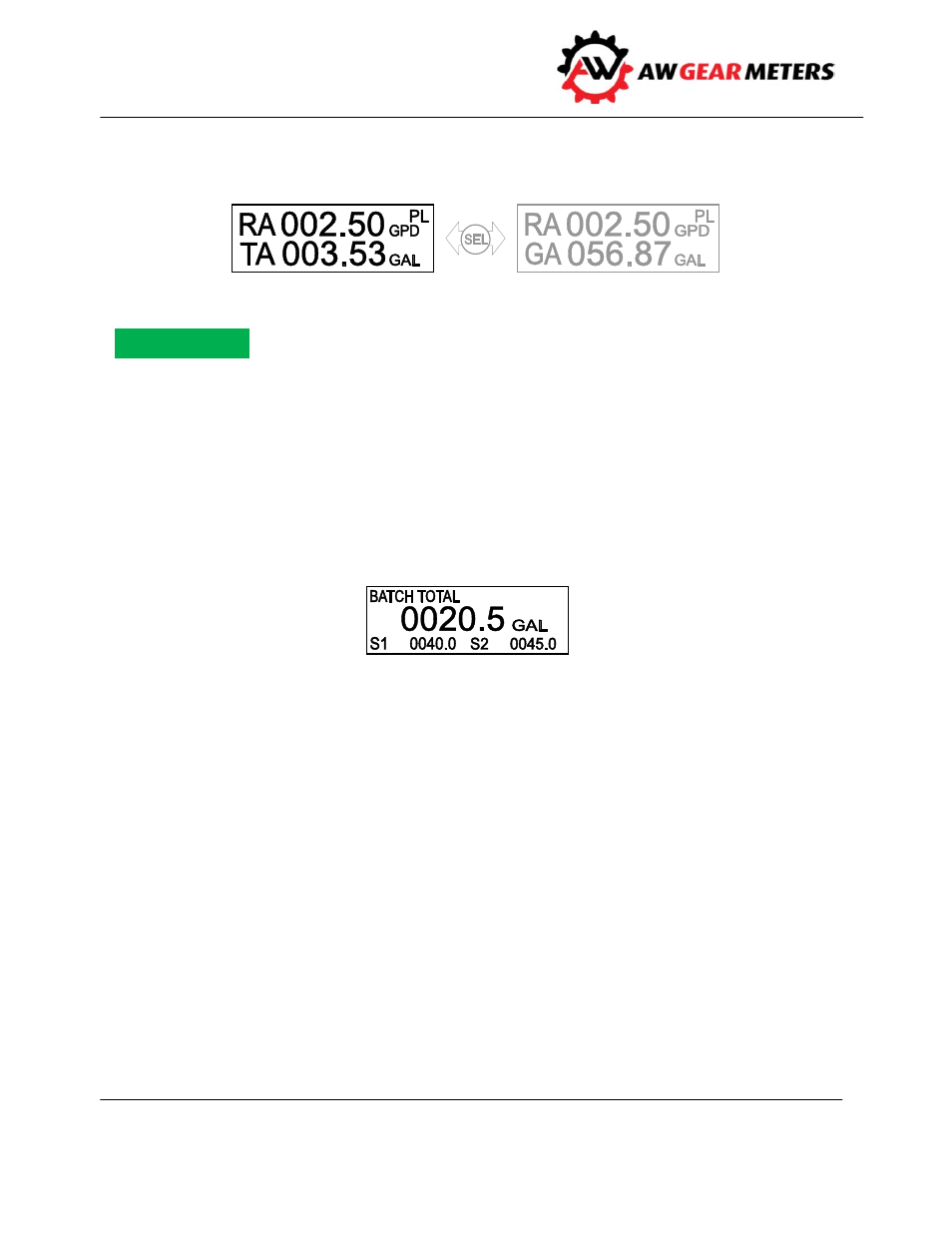

The RAT A TOT A display is only for viewing the rate and total simultaneously and has no programming
function. Program Rate and Total variables from the RATE A
GT or RATE A PL and TOTAL A screens
respectively.
BATCH TOTAL Display Mode
The BATCH TOTAL displays the JOB A total and the S1 and S2 total limit activation levels. When the RT‐
15 is programmed for BATCH TOTAL operation, both limits are assigned as TOTAL A limits based on the
KFT, decimal point, and engineering units. The TOTAL limit activation levels are displayed unless
assigned to another function. If so, the S1 or S2 display reads XXXX to indicate that it is not assigned to
JOB A TOTAL function.
BATCH TOTAL Programming
Use the BATCH TOTAL program mode to dedicate quickly both limits as total limits and program the
values at which the limits (S1 and S2) activate. Program BATCH TOTAL limits from The BATCH TOTAL
display. Use the MODE/DN button (or magnetic switch) to get there. Press and hold the ENT button (or
maintain the ENT magnetic switch). The display first shows a P in the lower left‐hand corner and then
highlights the first limit assignment S1 indicated with a blinking cursor. Entering a value assigns the limit
as a total limit based on the KFT, decimal location and KFT engineering units. Select the digit to edit
using the SEL button (or magnetic switch). Use the UP or DN button (or magnetic switch) to increase or
decrease the variable value. When the desired value displays, use the ENT button (or magnetic switch)
to store the programmed value and move the cursor to S2. Select the digit to edit using the SEL button
(or magnetic switch). Use the UP or DN button (or magnetic switch) to increase or decrease the value.
When the desired value displays, use the ENT button (or magnetic switch) to store the value and exit the
BATCH TOTAL mode.
If either limit is already assigned to a function other than TOTAL A, the RT‐15 responds by asking “Limit
mode different, want to change it?” Use the SEL button (or magnetic switch) to toggle an “N” or “Y”
Notice
