Dimensions
Order Information
www.Aquametrix.com 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
P65C-X (X=5,6,7,8) Series of pH Differential Probes with 4-20 mA direct output
Related Products
Wetted Materials - PVC
Measuring Range
AM-FCL-5: 0 - 5 ppm
AM-FCL-10: 0 - 10 ppm
Temperature Compensation
Pt 100 RTD
Operating Temperature Range
0 to 45°C
Maximum Pressure
14.7 psi at 40°C Flow Range
0.1 to 0.4 gpm (30 l/min)
Supply Voltage
12-24 VDC, 250 mA minimum
Cross Sensitivity
Maximum Flow Rate
Ozone, monochlroamine
Chemical Compatibility
Up to 50% Ethanol/water or Glycerol/water
Process Connection
Model Cl range Options Replacement Parts
AM-FCL-2 0 to 2 ppm AM-FCL-FC Flow Cell AM-FCL-FL Fill Solution, 30 mm
AM-FCL-5 0 to 5 ppm AM-FCL-FM Flow Meter AM-FCL-M2 Replacement Membrane, > 5 ppm
AM-FCL-10 0 to 10 ppm AM-FCL-M5 Replacement Membrane, 2 ppm
4.61”
(117mm)
3.78”
(96mm)
10.19”
(259mm)
2.25”
(57mm)
6.00”
(152mm)
8.30”
(211mm)
1.00”
(25mm)

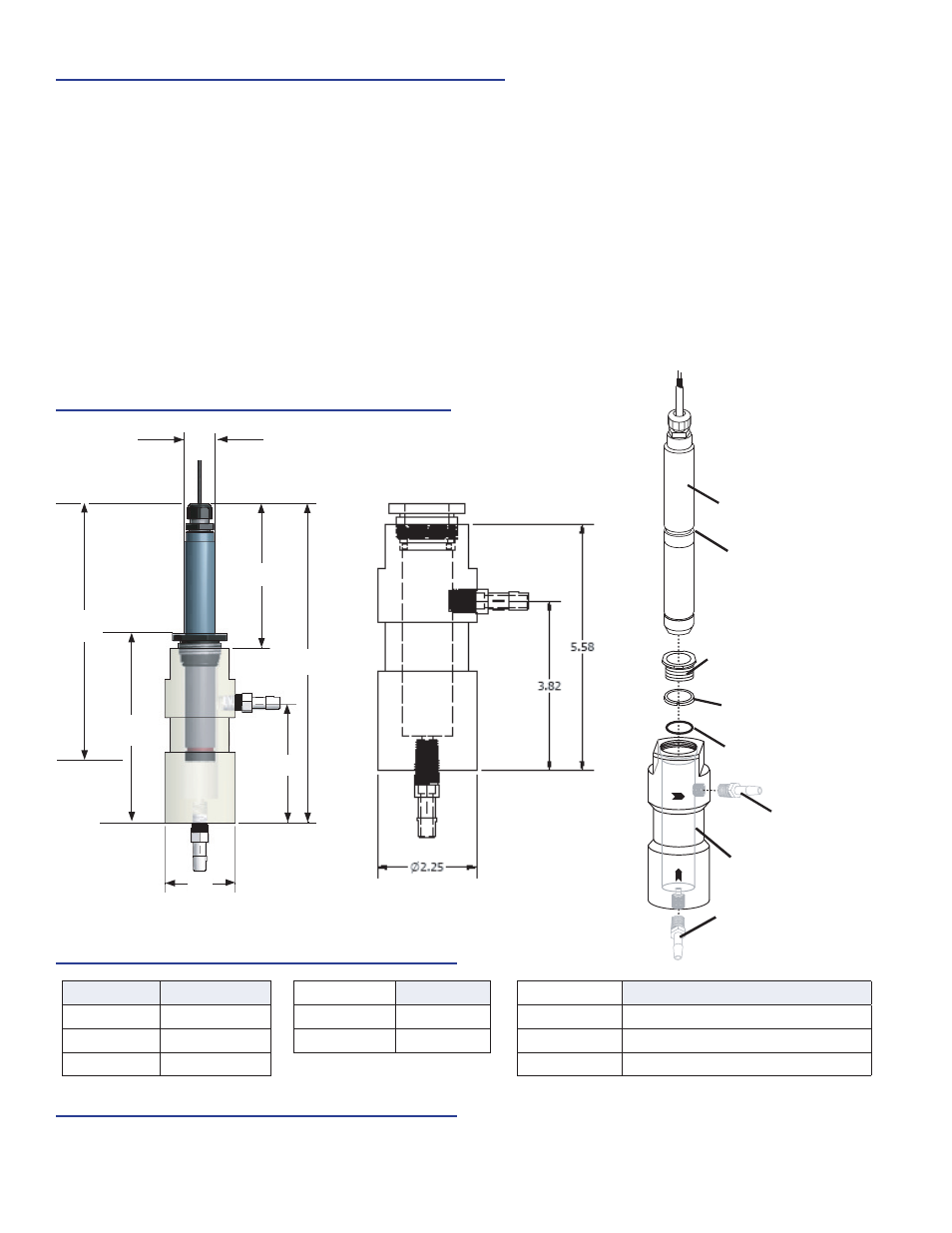

OUTLINE AND DIMENSIONS FOR
FCL200 & CLD200 SERIES SENSORS
THREADED FITTING
O-RING
SNAP RING (INSTALLS
INTO PROBE GROOVE)
SNAP RING
GROOVE
BARBED TUBE
FITTING
BARBED TUBE
FITTING
FLOW CELL
SENSOR
Model AM-FCL Free Chlorine Sensor Technical Data
AM-FCL-FC flow cell
Probe mounted in AM-FCL-FC flow cell
