Model EX100/200 Series Magmeter Flow Sensors Technical Data
Pipe Size
3” to 48” (up to 72” optional)
Materials
Shaft / Fitting
316 SS or Brass
Electrodes
Hastalloy
Housing
Cast powder-coated alumi-
num
Valve Assembly
(115/215 only)
Bronze (SS optional) with
bronze ball valve
O-Ring
EPDM (Viton optional)
Power
Full Power
12 - 25 VDC, 250 mA
Low Power
12 - 25 VDC, 40 mA aver-
age w 250 mA peaks
Flow Rate
0.28 - 20 ft/sec (0.08 - 6.09
m/sec)
Temperature
Ambient Temp
0˚ to 160˚ F (-17˚ to 72˚ C)
Fixed Temp:
Brass or SS
32˚ to 200˚ F (0˚ to 93˚ C)
Fluid Temp: PVC 32˚ to 130˚ F (0˚ to 55˚ C) @
0 psi
Pressure
200 psi (13.8 bar)
Maximum con-
ductivity
20 µS/cm
Calibratin Accu-
racy
+/- 1% of full scale
Output
Square wave pulse, opto-
isolated, 550 Hz @ 20 ft/sec
Empty Pipe De-
tection
Software, defaults to zero
flow
Maximum Current 20 mA

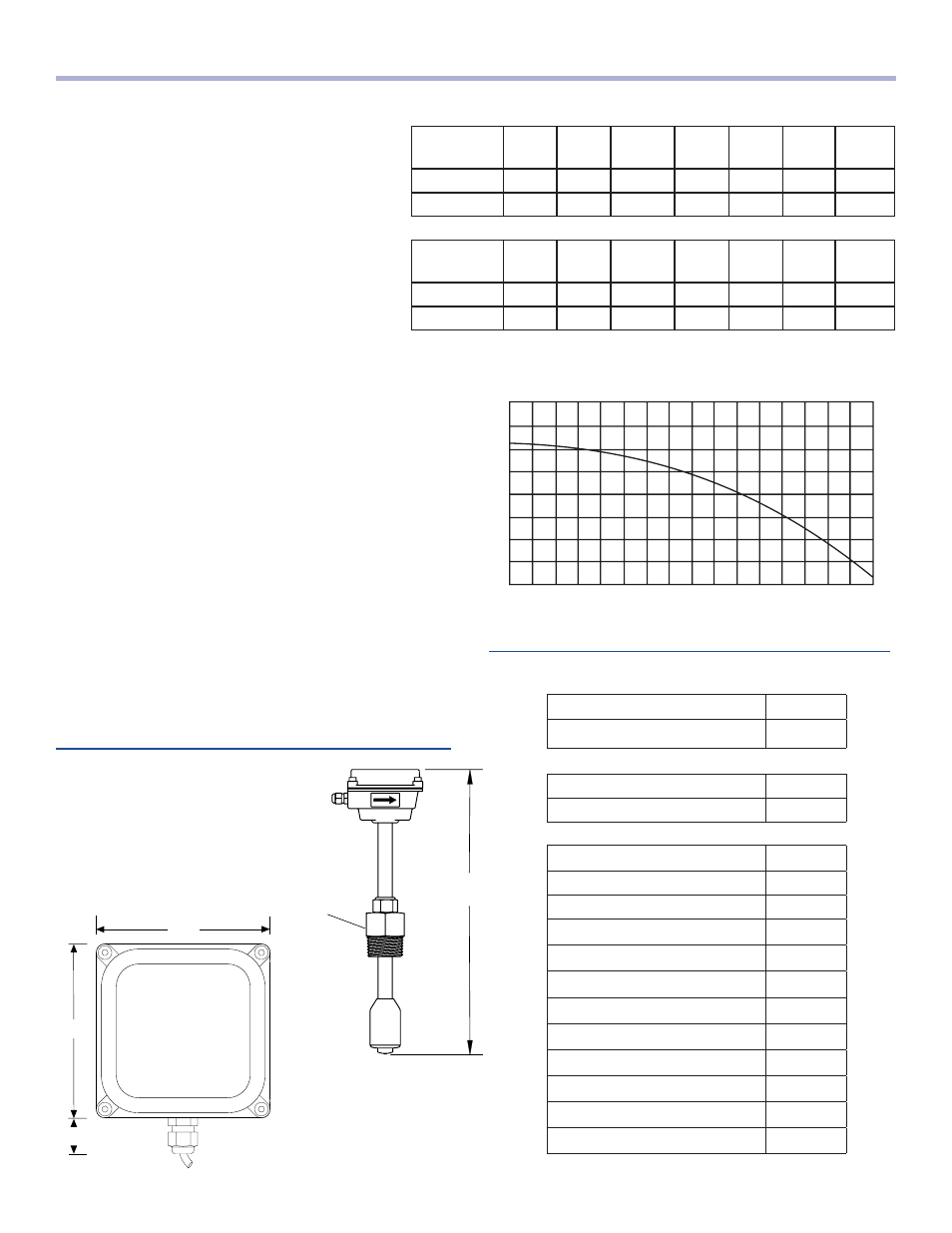

Dimensions
PVC/Polypro Working Pressure vs. Temperature
Nominal
Pipe Size
3”
4”
6”
8”
10”
11”
12”
Min
6
11
25
44
69
99
134
Max
440
783
1760
3130
4890
7050
9600
Nominal
Pipe Size
16
18
29
24
39
36
48
Min
175
222
274
395
617
888
1580
Max
12,500 15,950
19,600
28,200 44,100 63,400 112,800
Order Information
50
100
150
200
60º7
0º
80º9
0º 100º 110º 120º 130º 140º
P.S.I.
Flow Range (GPM)
www.WaterAnalytics.net
978-749-9949
Toll free - 855-747-7623 (855-pHProbe)
Sensor Style
Impeller sensor ( 3” - 10”)
100
Impeller sensor ( 10” - 48”)
200
Sensor Material
Stainless Steel
S
Brass
B
Mounting Fitting (Iron only)
3” Saddle fitting (Iron)
300
4” Saddle fitting (Iron)
400
4” Saddle fitting (Bronze)
400B
6” Saddle fitting (Iron)
600
8” Saddle fitting (Iron)
800
10” Saddle fitting (Iron)
1000
12” Saddle fitting (Iron)
1200
14” Saddle fitting (Iron)
1400
16” Saddle fitting (Iron)
1600
18” Saddle fitting (Iron)
1800
20” Saddle fitting (Iron)
2000
24” Saddle fitting (Iron)
2400
2“ Male NPT threads
2“ Male NPT threads
EX115 and EX215
EX101 and EX201
EX101 = 11-3/4 in.
EX201 = 16-3/4 in.
EX115 = 18-3/4 in.
EX215 = 22-3/4 in.
Adapter fitting with
1-1/2” Male NPT threads
3.89"
3.89"
.875"
