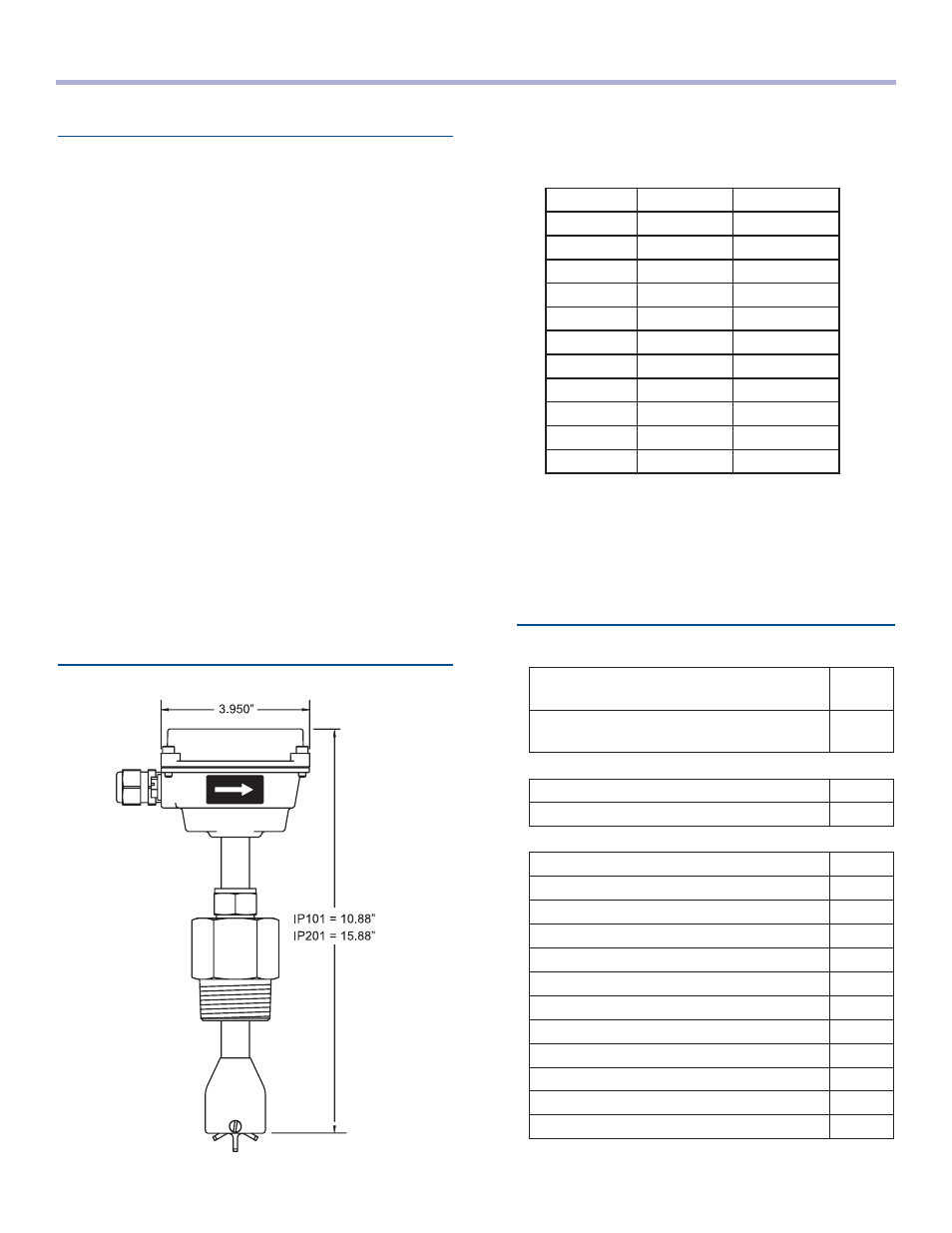

Model IP100 Series Impeller Flow Sensors Technical Data
Sensor
Hall Effect 12 VDC current sinking pulse
Materials
Sensor
Sensor Body Brass, or 316 SS
Housing Cast aluminum
Rotor PVDF
Shaft Nickel-bonded tungsten carbide
(Zirconia ceramic optional)
Bearings Ruby jewel
O-Ring EPDM (Viton optional)
Pipe Size
IP101 3” to 10” (75 to 250 mm)
IP201 10” to 48” (250 to 1200 mm)
Max. Pressure 200 PSI (14 bar)
Max. Temperature 200ºF (93ºC)
Flow Rate 0.3 to 30 FPS (0.1 to 9 M/s)
Accuracy 1-1/2% of full scale
Insertion Force 0.44 X pressure in pipe
Power 5-24 Vdc, 1.5 mA
Max. Current 20 mA
Cable #22 AWG 3-con, 18 ft. (6m)
Max. Cable 2000 ft (650 m)
Dimensons
Ordering Information
Flow Range (GPM)
www.WaterAnalytics.net 978-749-9949
Technical Data
Pipe Size Min. Flow Max. Flow
3 7 700
4 12 1100
6 30 2500
8 50 4500
10 75 7000
12 100 10,000
16 175 16,000
18 225 22.000
24 400 35,000
30 640 64,000
36 900 90,000
48 1600 160,000
Sensor Mounting
Insertion style with MNPT connection
(3” - 10”)
101
Insertion style with MNPT connection
(10” - 48”)
201
Sensor Material
Stainless Steel S
Brass B
Mounting Fitting (Iron only)
3” Saddle fitting (Iron) 300
4” Saddle fitting (Iron) 400
4” Saddle fitting (Bronze) 400B
6” Saddle fitting (Iron) 600
8” Saddle fitting (Iron) 800
10” Saddle fitting (Iron) 1000
12” Saddle fitting (Iron) 1200
14” Saddle fitting (Iron) 1400
16” Saddle fitting (Iron) 1600
18” Saddle fitting (Iron) 1800
20” Saddle fitting (Iron) 2000
24” Saddle fitting (Iron) 2400
