Model IP80 Series Impeller Flow Sensors Technical Data
Materials
Sensor Body PVC, Polypro, Brass, or 316 SS
Rotor PVDF
Shaft Nickel-bonded tungsten carbide
(Ceramic optional)
Bearings Ruby jewel
O-Ring EPDM (Viton optional)
Pipe Size
IP81 1/2” to 3” (12 to 76 mm)
IP82 4” to 8” (100 to 200 mm)
Maximum Pressure
PVC or Polypro 175 PSI (12 bar) at 75º
Brass 200 PSI (14 bar)
316 SS 250 PSI (17 bar)
Maximum Temperature
PVC or Polypro 130ºF (55ºC)*
Brass or SS 200ºF (93ºC)
Flow Rate 0.3 to 30 FPS (0.1 to 9 M/s)
Accuracy 1-1/2% of full scale
Signal Hall effect current sinking pulse
Power 6-24 VDC, 2 mA
Maximum Cur-
rent
20 mA
Cable #22 AWG 3-con, 18 ft. (6m)

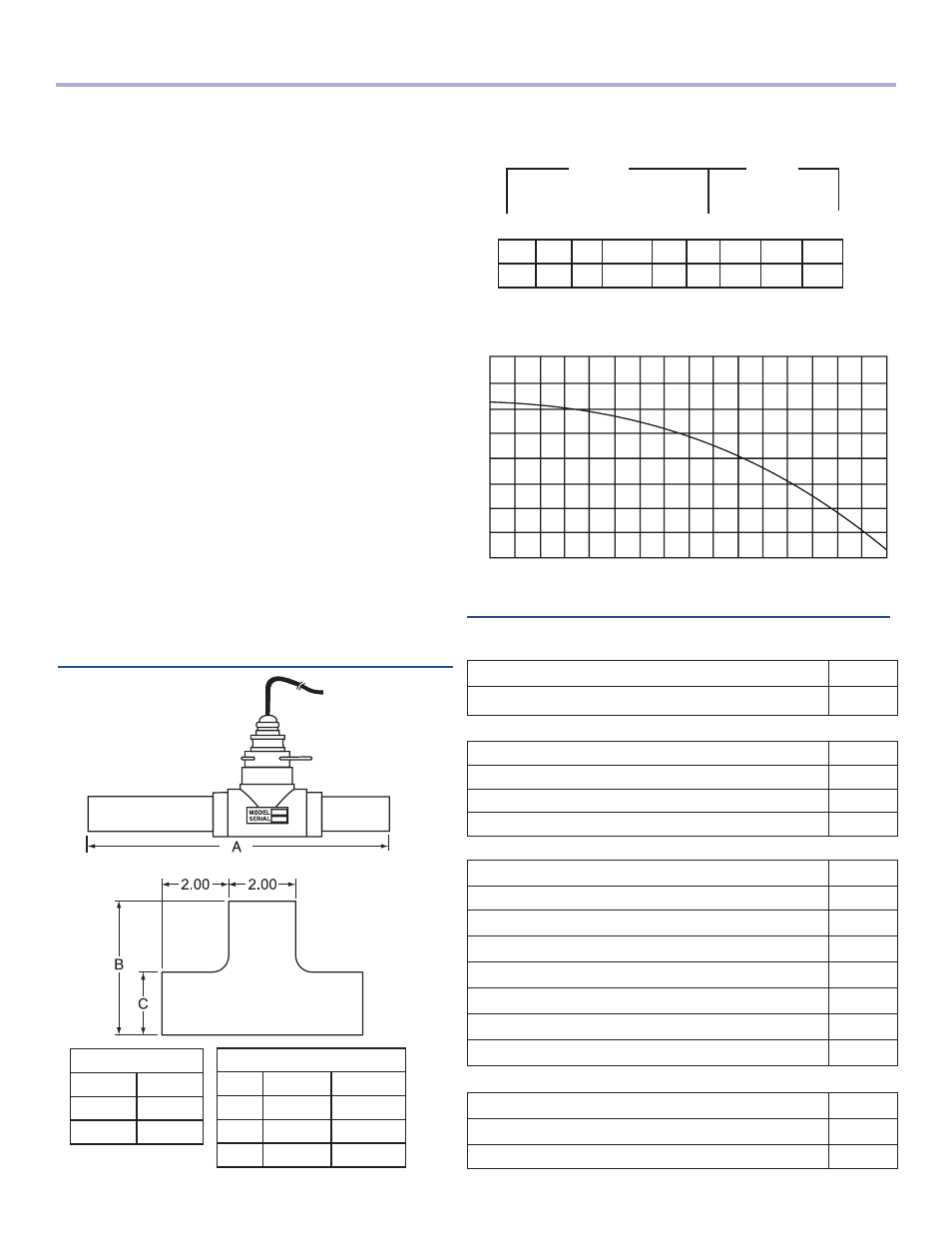

Dimensions
PVC Block Tee
Size Dim. B Dim. C
1/2” 1.50” 3.80”
3/4” 1.90” 4.00”
1” 1.88” 4.00”
PVC/Polypro Working Pressure vs. Temperature
1/2” 3/4” 1” 1-1/2” 2” 3” 4” 6” 8”
Min 0.28 0.5 0.8 1.9 3.1 6.9 12 27 47
Max 28 50 80 190 314 691 1200 2700 4700
IP81 IP82
Order Information
50
100
150
200
60º7 0º 80º9 0º 100º 110º 120º 130º 140º
P.S.I.
PVC Tee
Size Dim. A
1.5” 19.2”
2” 19.9”
Flow Range (GPM)
www.WaterAnalytics.net 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
Sensor Style
Impeller sensor ( 1/2” - 3”) 81
Impeller sensor ( 4” - 6”) 82
Sensor Material
PVC P
Stainless Steel S
Polypropylene Y
Brass B
Mounting Style
1/2” Tee fitting 050
3/4” Tee fitting 075
1” Tee fitting 100
1.5” Tee fitting 150
2” Tee fitting 200
3” Saddle/Weldolet fitting 300
4” Saddle/Weldolet fitting 400
6” Saddle/Weldolet fitting 600
Mounting Tee Material
PVC P
304 Stainless Steel (available only for 0.5” - 2”) S
Bronze (Not available for 6” pipes) B
