Model AM-HLT Level Transducers
www.WaterAnalytics.net 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
Specifications
Models
AM-HLT-0 Recessed membrane
AM-HLT-5 Flush anti-fouling membrane
AM-HLT-50 Wide membrane with protective plate
Options
AM-HLT-SP Lifetime Lightning/surge protector
Accessories
AM-HLT-VT Replacement Vent Filter
AM-HLT-AB Aneroid Bellows
AM-HLT-CH Cable Hanger
AM-HLT-DM Display Meter
Order Information

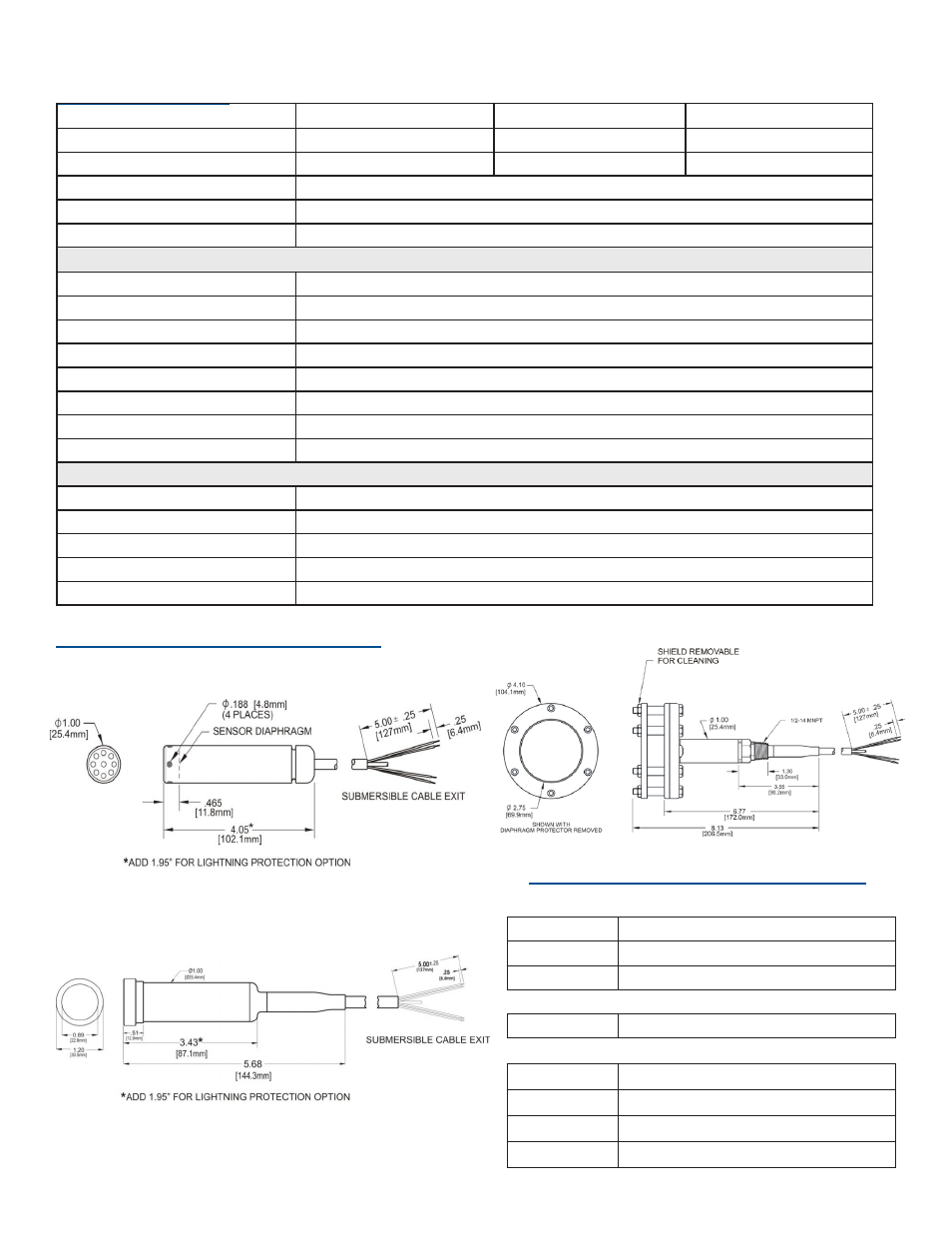

Dimensions
AM-HLT-0 AM-HLT-5 AM-HLT-50
Membrane Recessed 1” Teflon coated 1” Flush Teflon coated 2.75” Diam. w Al plate
Full Scale Range 2/3 to 700 ft (0.7 to 210 m) 6 - 115 ft (2 - 35 m) 10 - 115 ft (2 - 35 m)
Proof Pressure 1.5 x full scale
Burst Pressure 2.0 x full scale
Accuracy (static) 0.25% (1% optional for AM-HLT-0)
Electrical
Driving Voltage 9-30 VDC
Input Current 20 mA max for mA output, 3.5 mA max for VDC output
Output 4-20 mA (0-5 VDC optional)
Zero Offset ±0.20 mA
Output Impedance (V
PS
- 9 V) / 20 mA ( V
PS
= power supply voltage)
Circuit Protection Polarity, surge-shorted output
Peak Clamping Voltage 36 VDC
Physical
Wetted materials 316 SS or Titanium, polyurethane, Viton
Compensated Temp. Range 0 to 50 0 C
Thermal Error ±0.05 0 C
Operating Temperature Range -20 to 60 0 C
Protection Range IP68, NEMA 6P
AM-HLT-0
AM-HLT-5
AM-HLT-50
