Am-ldo luminescent dissolved oxygen sensor, Technical data dimensions ordering information, Related products – Aquametrix AM-LDO Luminesescent Dissolved Oxygen User Manual
Page 2: Dimensions

Measuring Range
4 ppb (0.5% air sat.) to 24 ppm (300%)
Wetted Materials
316 SS, EPDM, silicone
Accuracy at 25
0
C
1 ± 0.05%-vol; 21 ± 0.2%; 50 ± 0.5%
Storage Temperature
-10 to 50
0
C
Detection limit
0.1 % - vol
Operation Temperature
-10 to 60
0
C
90% Response Time <30 sec at 25
0
C
Pressure Range
-1 to 12 bar / 174 psi
Drift at Room Temp. < 0.2%-vol oxygen per week at 30
0
C
Wetted materials
CPVC
Power input
7-30 VDC. (0.6 W)
Not resistant to
Chlorine, Chloroform,
Toluene, Acetone
Analog Output
4-20 mA scalable. Tem-
perature compensated
Digital Output
Modbus RTU over RS485
Polarization voltage 5-10 min for self heating
Enclosure Type
IP 65
Transmission Rate
4800 to 115,000 bd
Connector
VP 8.0 Variopin con-
nector with PG 13.5
Cross sensitivity
None (inc. CO
2
, H
2
S, SO
2
)
Mounting
PG 13.5 - thread, IP68
AM-LDO Luminescent Dissolved Oxygen Sensor
Technical Data
Dimensions
Ordering Information
www.WaterAnalytics.net
978-749-9949
Toll free - 855-747-7623 (855-pHProbe)
Related Products
2200D Dissolved Oxygen Controller with P91 Clark style sensor
R655-X Series of 4-20 mA output ORP differential probes
AM-LDO Sensor w 4-20 mA output
AM-LDO-A
AM-LDO Sensor w Modbus RTU
AM-LDO-D
Replacement Cap
AM-LDO-Cap
USB-RS485 Modbus Converter
AM-LDO-CONV

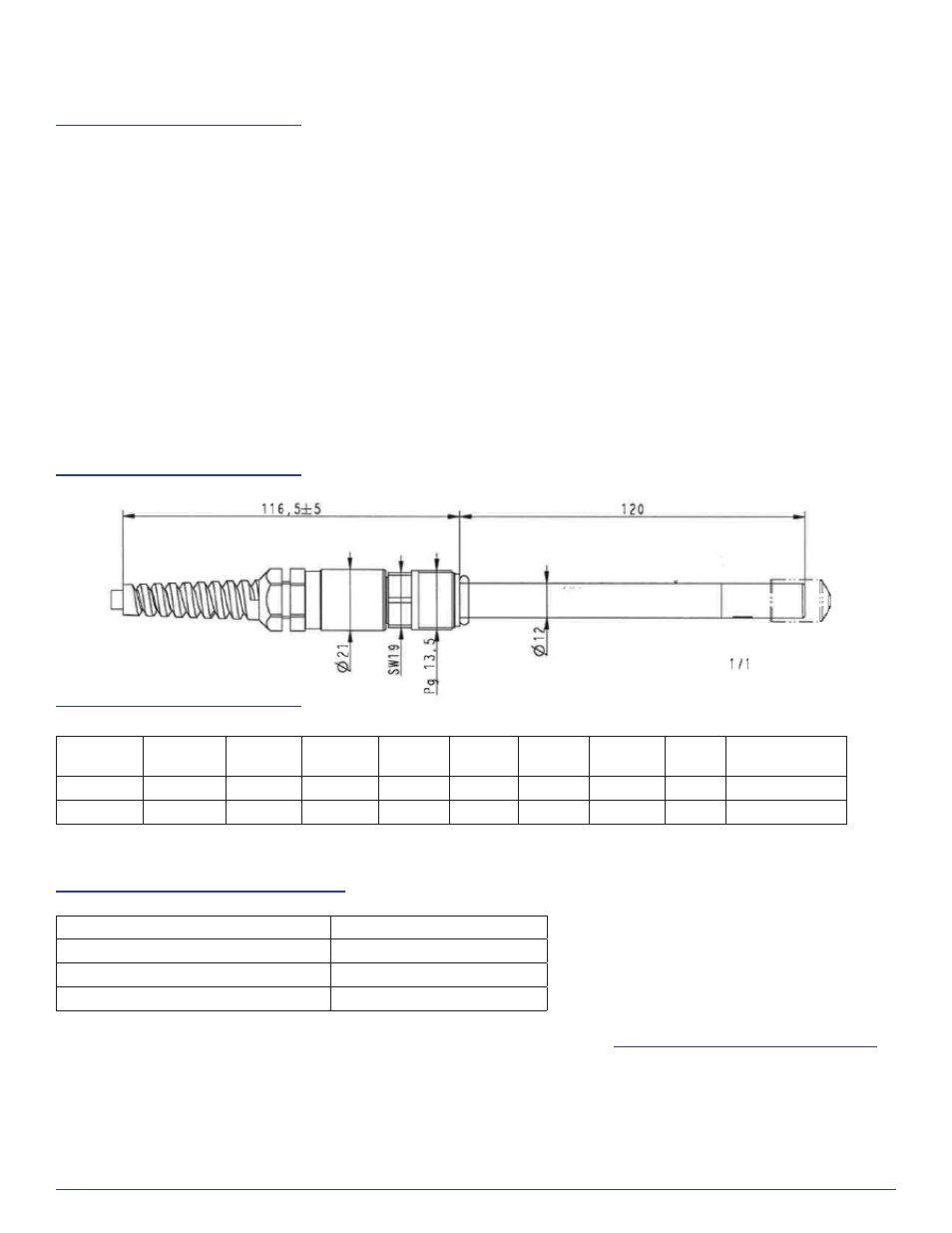

Dimensions
Function
4-20 mA PS (7-30
VDC)
Ground NC
NC
RS485A 485B
Housing
VP Pin
A
B
C
D
E
F
G
H
Shield
Color
Yellow
Green
Red
Blue
Brown
White
Grey
Pink
Yellow/Green
