Model 2200R ORP Analyzer / Controller
www.Aquametrix.com 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
Technical Data
Related Products - Probes & Accessories
Display 4 x 7 segment 1/2” LED Display
Indicator Lights 4 LED indicators: Status, Alarm, Relay A,
Relay B
Measuring Range
ORP 0 to 1000 mV or -1000 mV to 1000 mV
Field selectable by DIP switch
Temperature Optional. See Temperature Display
Power Requirements
Standard 98-132 VAC 50/60 Hz, (less than 10 VA)
Optional 196-264 VAC 50/60 Hz (less than 10 VA)
23-26 VDC (nominal current: 150 mA)
Ambient Conditions
Temperature -30 to 50°C (-22 to 122°F)
Humidity 0 to 90% RH non-condensing
Control Relays
Number Two Control Relays: Relay A, Relay B
Rating 5 A 115/230 VAC, 5A 30 VDC, SPDT
Bidirectional Factory preset for bidirectional control,
can be individually field set for rising or
falling ORP
On/ Off Setpoints Field selectable -1000 to +1000 mV
Cycle Timer Field selectable -1000 to +`000 mV
Manual Override Relay A only: AUTO/OFF/ON
Fail-safe Normal or fail safe operation
Alarm Relay
Number One Alarm Relay
Rating 5A 115/230 VAC, 5A 30 VDC, SPDT
Alarm High Field selectable full scale
Alarm Low Field selectable full scale
Deadband Fixed at 2% of full scale
Fail Safe Normal or fail safe operation
Relay Indicators Three individual LEDs indicate status
of two control relays and alarm relay
Analog Outputs
Non-isolated 0-1 mA, 100 ohms maximum load
Non-Isolated 0-5 VDC, 1000 ohms minimum load
Isolated 4-20 mA, 800 ohms maximum load
Output is isolated from the input, the
ground, line power and all other outputs.
Range Expand Analog outputs can be scaled to rep-
resent any segment of the instrument
scale, minimum of 10% of full scale.
Output Hold Analog outputs are placed on hold
when the instrument is in menu mode.
Temperature The 0-1 mA and 0-5 VDC ou tputs
can be selected to track either the pH
or the temperature of the process.
Calibration 2 Point
Sensor to Controller Distance
Differential R60 Series Differential pH Probe: maximum
distance 3000 feet (914 m)
Combination 500 Series: maximum distance 25 feet (7.62 m)
Temperature Compensation
Automatic 0-100°C (32 to 212°F) if probe has temperature
sensor.
Diagnostics
Invalid Entries Identified by flashing LEDs
System Error Two color STATUS LED indicates system sta-
tus. Green no fault, Red system fault. Scroll to
Status in Menu to determine fault code. Refer
to Manual for probable cause and remedy.
Alarm Relay Alarm relay can be enabled to activate upon
high and low process values and memory loss.
Test Display value and analog outputs can be set to
any value for testing and diagnostic purposes.
Safety & Security
Operator Password protected (activated by DIP switch)
Memory Nonvolatile memory (EPROM)
Microprocessor Watchdog timer monitors microprocessor. In-
strument automatically returns to online opera-
tion if left in menu mode for more than 10 min-
utes and no key is pressed.
Sensitivity 0.1% of span
Stability 0.1% of span per 24 hours non-cumulative
Temperature Drift Zero - 0.01% of span per °C
Span - 0.01% of span per °C

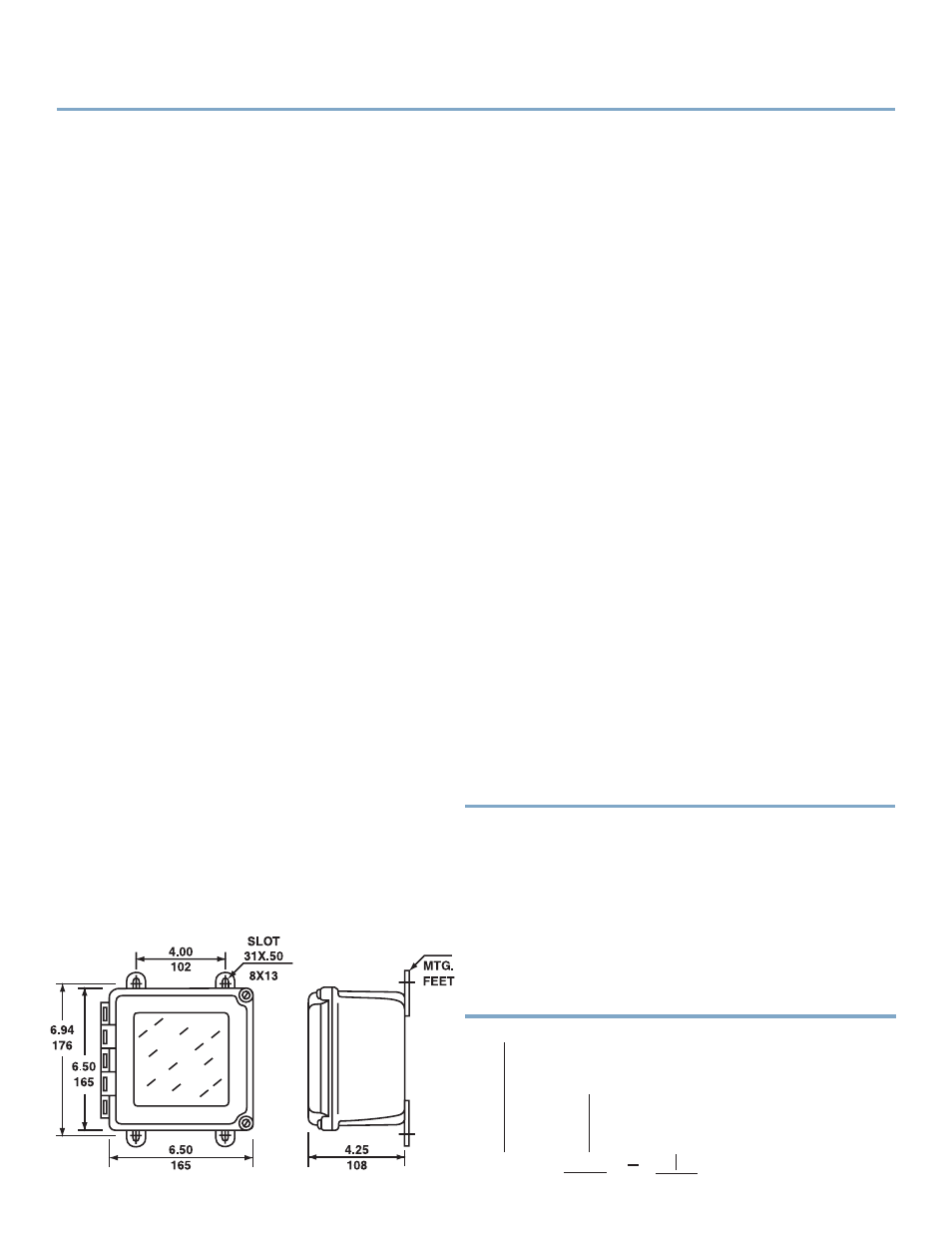

Enclosure NEMA 4X molded fiberglass reinforced polyes-
ter enclosure with four 1/2” conduit holes and
mounting feet for surface mount. A NEMA 4X
plug is provided for one hole.
Mounting
Standard Surface Mount
Optional Panel Mount kit P/N C35-68
Pipe Mount kit P/N C35-69
Weight 3.5 lbs. (1.6 kg)
R60C-6 Industrial quality differential ORP probe with replace-
able salt bridge, temperature sensor and integral
preamplifier. Compression fitting 1-1/4” NPT.
R60C-8 Industrial quality differential pH probe with replace-
able salt bridge, temperature sensor and inte-
gral preamplifier. Fixed threads 1-1/2” NPT.
R575 Industrial quality combination style ORP
probe. Fixed threads 1” NPT.
P60-HTC CPVC Wet/Hot tap ball valve assembly
STC60 Tank mount hardware for pH/ORP differential probes
2200R ORP Analyzer/Controller
1 120 Vac, 50/60 Hz Power
2 240 Vac, 50/60 Hz Power
A Surface Mount
B Panel Mount
C Pipe Mount
2200R
Ordering Information
