Aquametrix 2300 Multi-Parameter Controller
Technical Data
www.WaterAnalytics.net 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
Inputs
Analog
Four 4-20 mA, expandable to 8 with additional input card*
Frequency Two optically isolated, up to 24 VDC or 120 VAC
Counter One accummulator for tracking equipment on time
Outputs
Relays
Four 120V/240 V @ 10A/5A expandable to eight*
Alarms Configurable as E-mails and/or texts for alarms, alerts, or just reminders
Web Remote viewing with a browser on a computer, tablet, or smart
phone. Remote programming from any of these.
Datalogging Logging of CSV files directly to micro SD card
Digital output Optional: Modbus RTU over RS485 or Modbus TCP over TCP/IP communication card*
Ratings
Current Rating 0.3 A
Temp Rating
0 to 70 0 C.
Protection NEMA 4x
Physical
Mounting
1/4 DIN panel mount or wall mount with optional hardware
Dimensions Front cover: 6.5” wide x 5.5” tall; rear enclosure: 3.5” wide x 3.5” tall x 4.5” deep
Weight 2 lbs.

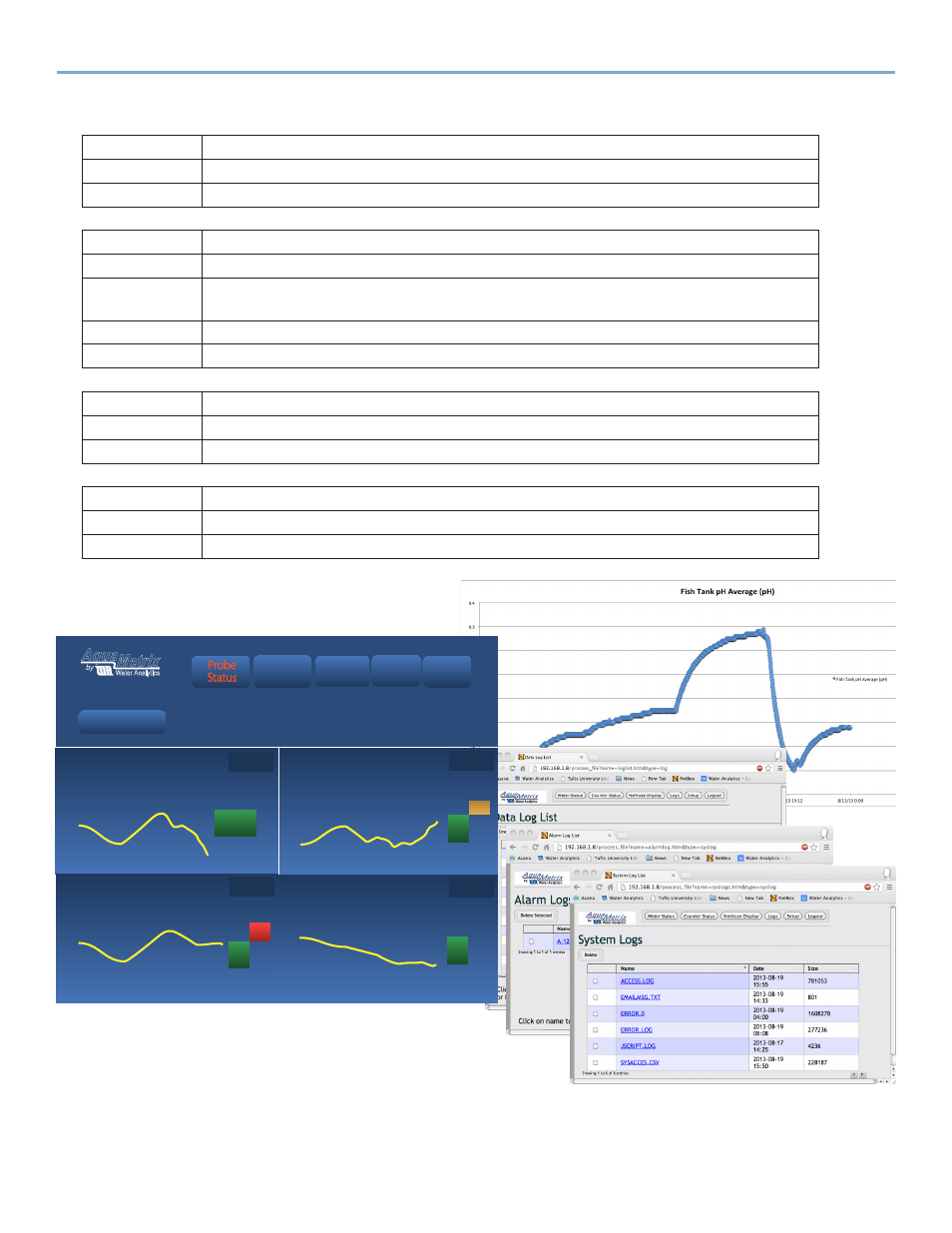

All logs are stored on a microSD card and can be
downloaded remotely on a web browser. From top to
bottom: Data logs, Alarm logs, System logs.
From data log to data analysis takes less than a minute.
* One expansion card slot is available
