- 31 -

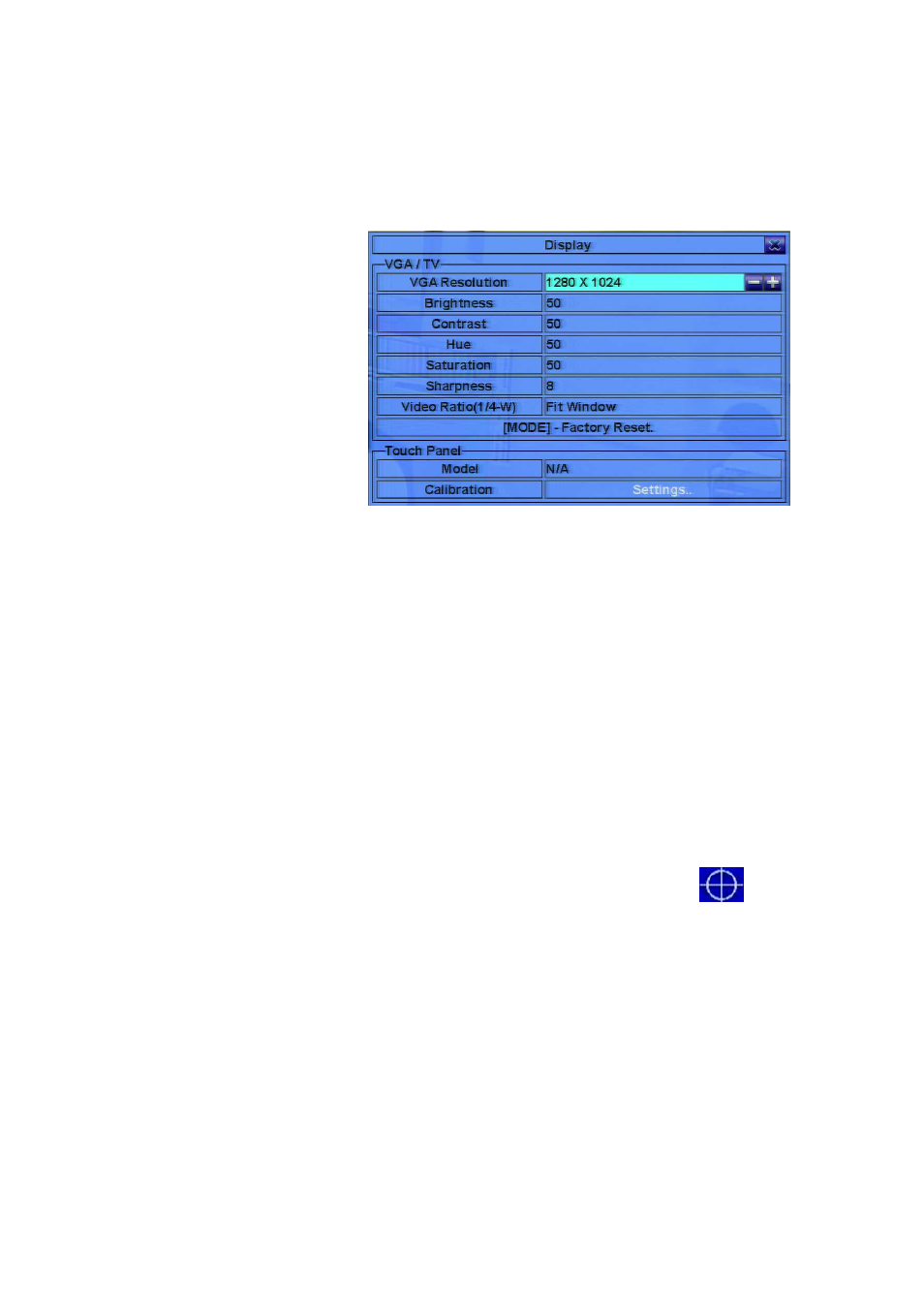

5.4 Display
In Menu display, press
▲▼◄► to change the
highlighted
option to
Display, and then press
ENTER to call up
Display dialog as shown.
There are several items
which can be adjusted,
including
Resolution,
Brightness, Contrast, Hue,
etc. Besides, the video
ratio
of 1/4-window
display can be set to “Fit Window” or “Proportional”.
The operations are as below:
▲▼ (Mouse: Click in the respective item)
Press these buttons to select the items.
+/-
Press these buttons to adjust the selected item.
Touch Panel Model – the models supported are LP080S/LOF150B5A. Press
+/- buttons to change the supported model. If your touch panel is not listed, you
may still select one of the supported models, and use Calibration Settings to try to
calibrate the touch panel. However, it’s not guaranteed to be successful.
Calibration Settings.. – used to calibrate the touch panel. Press ENTER
(Mouse: Left click) in Settings.. to call up Calibration display for the touch
panel. Please follow the screen instructions to touch the center of mark
until successful or failed.
MODE (Mouse: Left click)
Press this button to restore the items above to factory default values.
ESC (Mouse: Right Click)
Press this button to escape from this screen, and return to Menu display. If the
contents have been modified, a Save dialog will be shown to ask the user to save
the changes, press
ENTER to exit and save, ESC (Mouse: Right Click) to exit
without saving.
