- 12 -

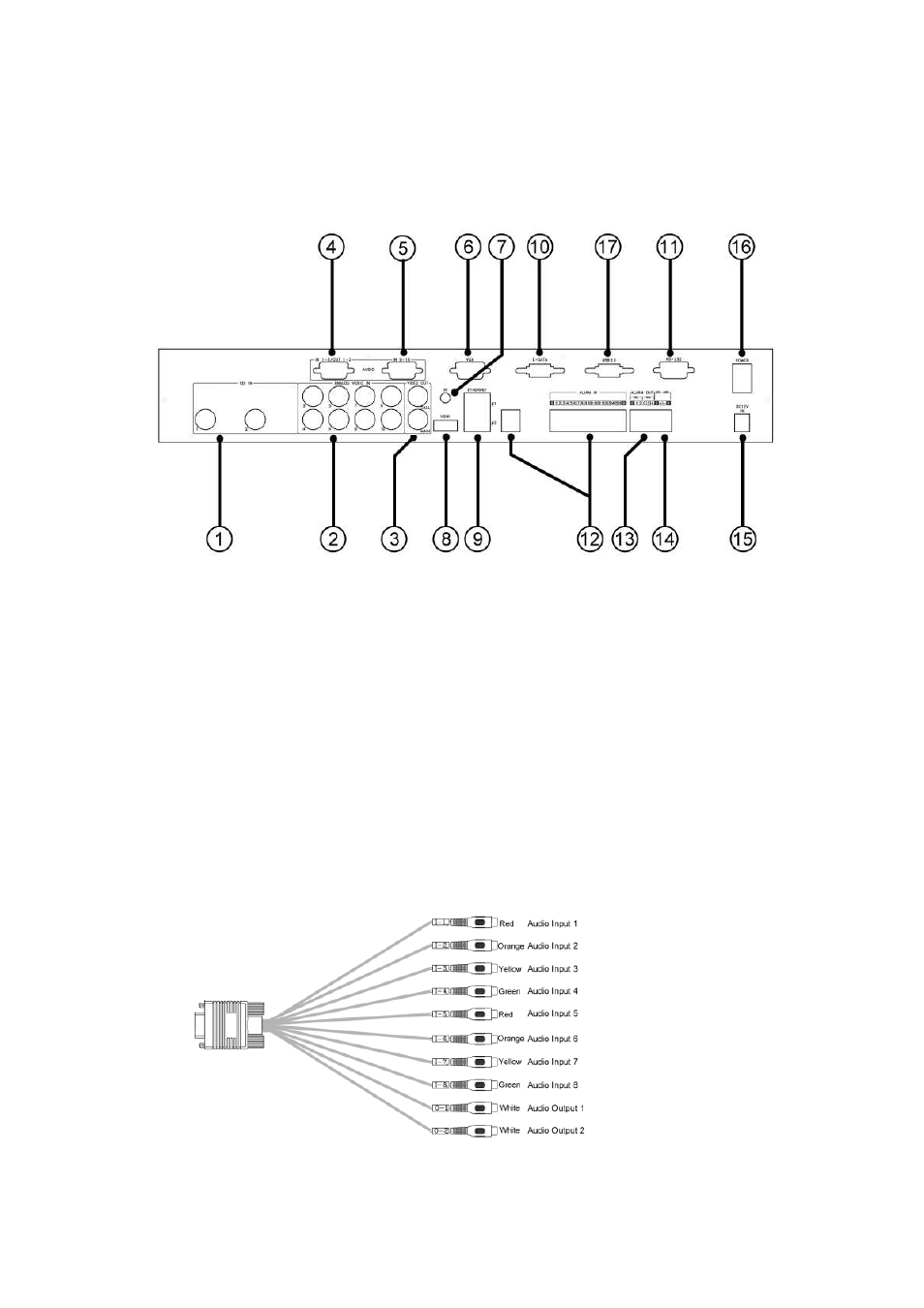

2.2 Back Panel
1. HD-SDI Input Connectors (1-2/4)
Connect HD-SDI cameras to these BNC connectors via RG-6U cables.
The internal 75
Ω termination is always ON.
2. Analog Video Input Connectors (5-16/3-10/none)
Connect analog cameras to these BNC connectors. The internal 75 Ω
termination is always ON.
3. Video Out (CALL, MAIN)
Connect TV monitor to the upper BNC connector for call monitor display,
and connect TV monitor to the lower BNC connector for main monitor
display.
4. Audio In/Out Connector (AUDIO IN 1-8, OUT 1-2)
Connect to Audio In 1-8/Out 1-2 Cable. The cable is as shown below.
