pUMp eleCTRiCAl CONNeCTiONS
IL1376
Wire from
motor
Pressure
Switch
Strain
Relief

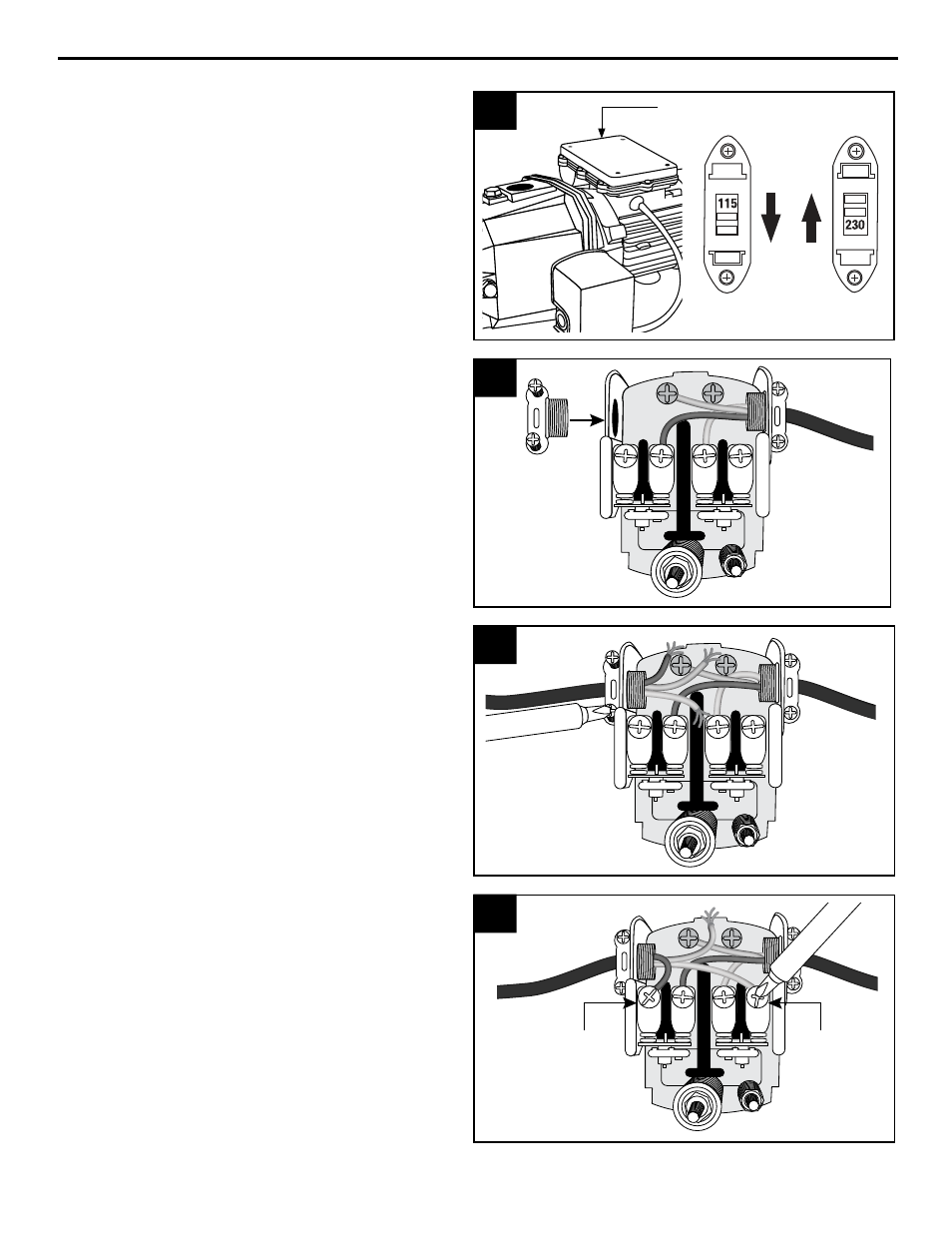

Wiring the pressure switch
1. CAUTiON: Make certain that the power
source matches the pump requirements. This
pump has a dual voltage motor and can run
on 115 V or 230 V. This pump is pre-set at the
factory to run on 230 V.
NOTE: To change pump voltage, remove the
square voltage switch cover at the top of pump
and move the voltage switch as shown.
1
115 V
Setting
230 V
Setting
2
Wire from
motor
Wire from
power
supply
Wire from
motor
Wire from
power
supply
Outside
terminal
Outside
terminal
3
4
2. Insert an electrical wire strain relief into the
opening in the side of the pressure switch.
3. Thread the cable from the power supply
through the strain relief and tighten both
screws on the strain relief. Do not crush wire.
4. Connect the two wires from the power supply
to the two outside terminals on the pressure
switch.
Voltage swtich
cover
