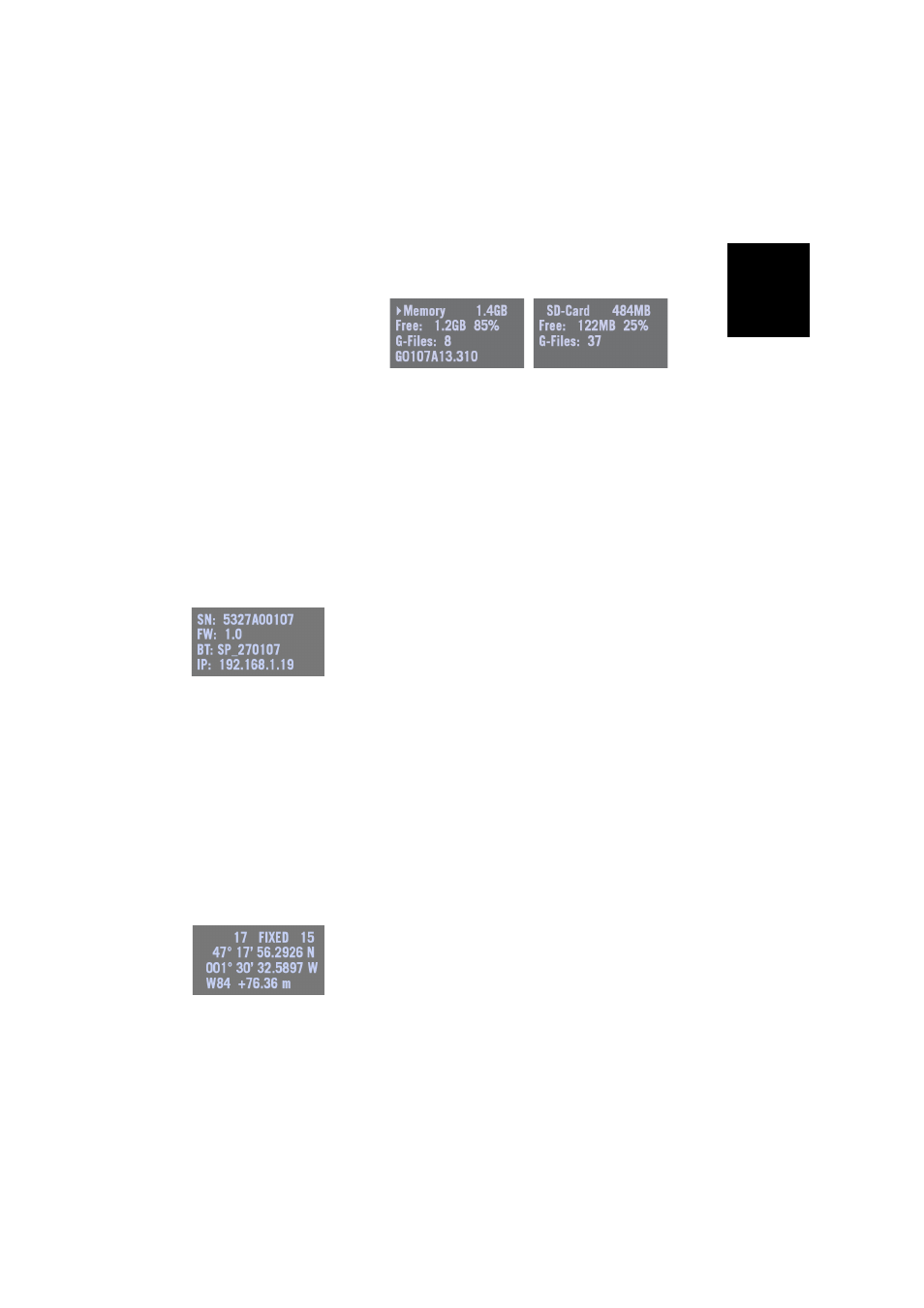

Memory/SD Card See examples below for Internal Memory (left) and SD card
(right).
• 1st line: Memory identifier and capacity. If a left arrow
appears at the beginning of the line, this means this
memory is currently selected to collect data.
• 2nd line: Free memory left (in bytes and percentage of
nominal size)
• 3rd line: Number of G-files currently stored in memory
• 4th line: If data recording is in progress, name of the G-
file currently created. Otherwise, this line is empty.
Receiver
Identification
From top to bottom (see screen example):
• Receiver serial number (SN)
• Firmware version currently installed (FW)
• Receiver Bluetooth name (BT)
• Receiver IP address (IP)
Position Solution If the receiver is a rover, the displayed position will be the last
computed position. The coordinates will be local (“LOC”)
only if the rover receives specific RTCM messages from the
base describing the local system used by the base.
If the receiver is a base, the displayed coordinates are set
ones (not computed ones) representing the WGS84 or local
reference position assigned to the base.
See screen example for a rover delivering WGS84
coordinates.
• First line: Number of satellites received; Current position
solution status; Number of satellites used.
• Next three lines: Receiver position. This may be:
– Either WGS84 coordinates (“W84” displayed at the
beginning of the last line). Coordinates are Latitude
(2nd line), Longitude (3rd line) and ellipsoidal
elevation (4th line).
– Or local coordinates (“LOC” displayed at the beginning
of the last line). Depending on whether or not a
