7.5 WHEEL HUBS & CASTER PLATES
7.5.1 Main Frame Wheel Hubs
& Castor Plates

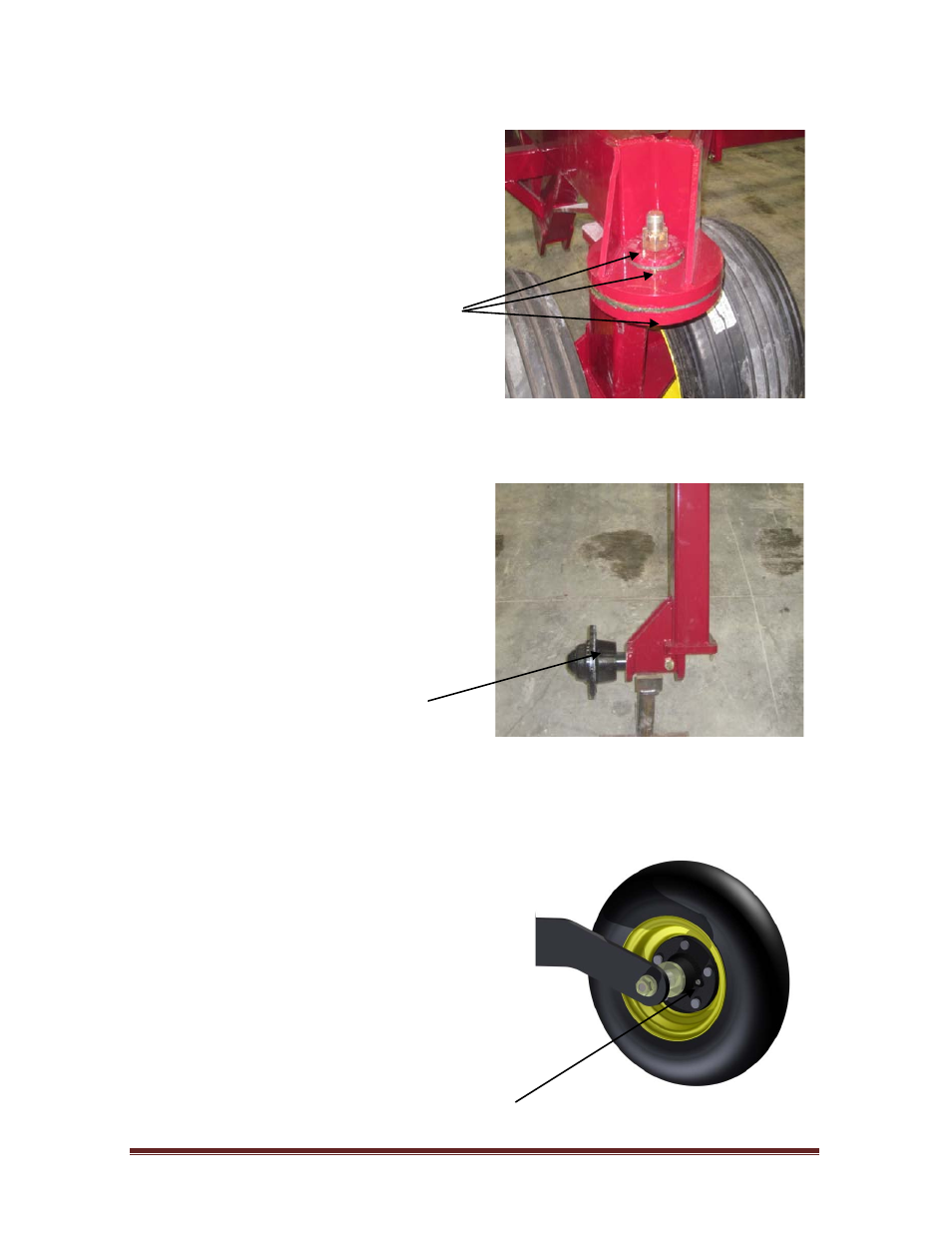

Lubricate Main Frame Wheel Hubs and
Wing Castor, Figure 28, every 100 hrs, or,
repack annually.
7.5.2 Wing Hubs
Lubricate Wing Wheel Hubs, Figure 29 ,
every 100 hrs or annually.
Grease fitting
7.5.3 Packer Wheel Hubs
Lubricate Packer Wheel Hubs, Figure 30,
every 100 hrs, or annually.
Grease fitting
Grease fitting
Figure 28
Figure 29
