Seed Hawk Manual
Tool Bar
Page 34

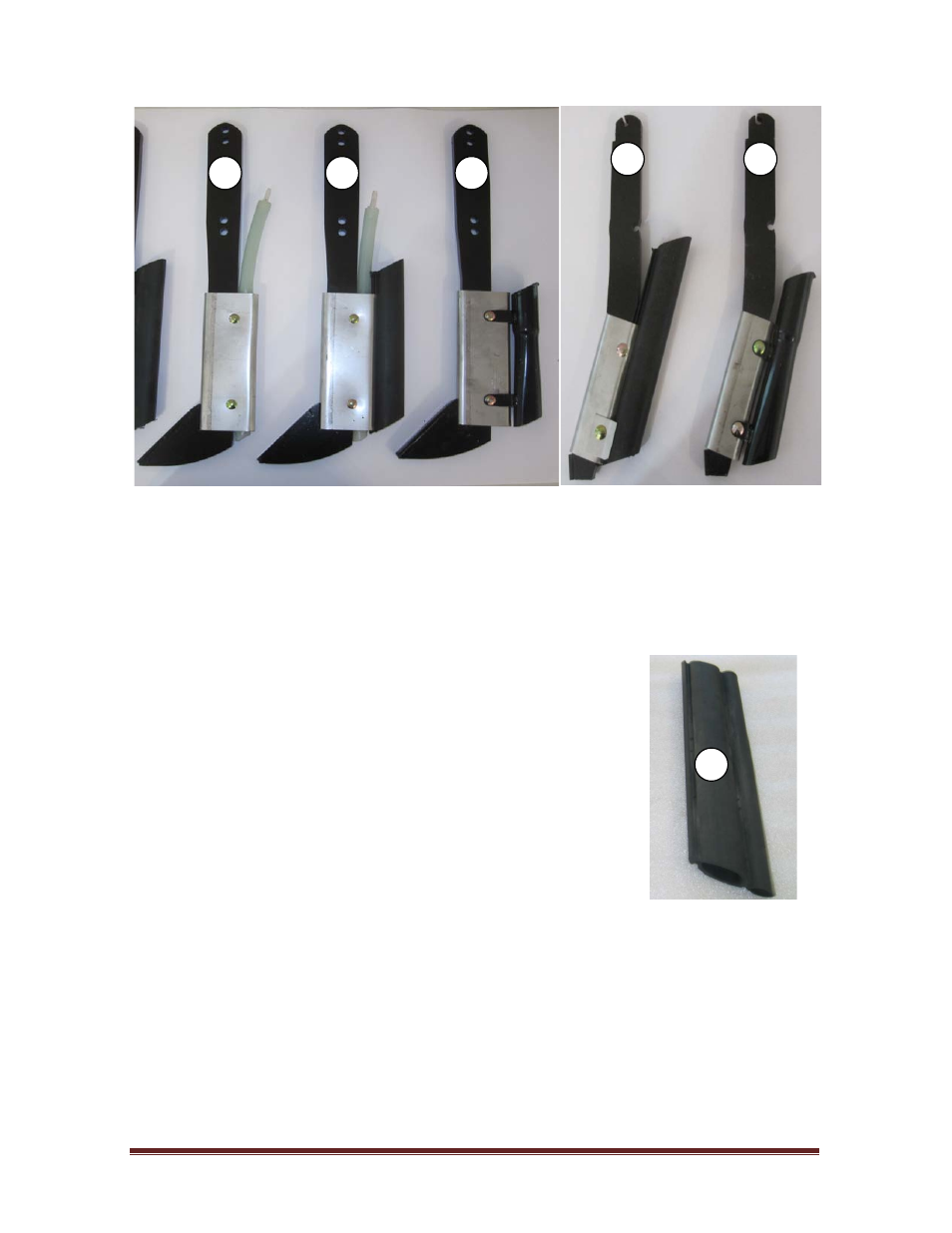

4.9.2 Range Of Knife Configurations
Figure 17
The Seed Hawk fertilizer knife allows a variety of product delivery configurations:
1. Liquid fertilizer
2. Dry & Liquid or NH3 fertilizer w/rubber drop tube
3. Dry & Liquid or NH3 fertilizer w/steel drop tube
4. Seed knife w/rubber drop tube
5. Seed knife w/steel drop tube
6. Double Extrusion
a. The Double Extrusion drop tube may be used for
applying granular and Liquid Fertilizer or NH3 behind
the granular product, Figure 18. Call your dealer for
further information.
2
3
1
5
Figure 18
4
6
