3.10 OPENERS
3.10.1 Quick Pin Opener
180 ft/lb
65 ft/lb
140 ft/lb
#
180 ft/lb
Item Description
1 Seed Knife
½” thick, includes stainless steel clip and
rubber drop tube
2 Fertilizer Knife
½” thick, includes stainless steel clip and
rubber drop tube
3
Packer Tire (Pneumatic or
Semi-Pneumatic) The packer/gauge wheel. 5 bolt hub for
tapered hub and bearing
4 Packer Arm Improved mud clearance
5 Main Shank Arm 5/8” thick
6 Shank Cylinder
Hydraulic pressure applied to the rod end
of the cylinder
7
Depth Adjustment pivot
point
The relationship of seed to fertilizer
placement will always stay the same with
the pivot point at this location.
8
Quick Pin depth setting
device
A positive pin setting. Provides easy
adjustment to obtain optimum seed and
fertilizer depth.
9 Chain
A visual from the tractor cab to use as a
reference to the proper packing and
penetration forces needed per field.
1
9
2
3
4
5
6
7
8
8

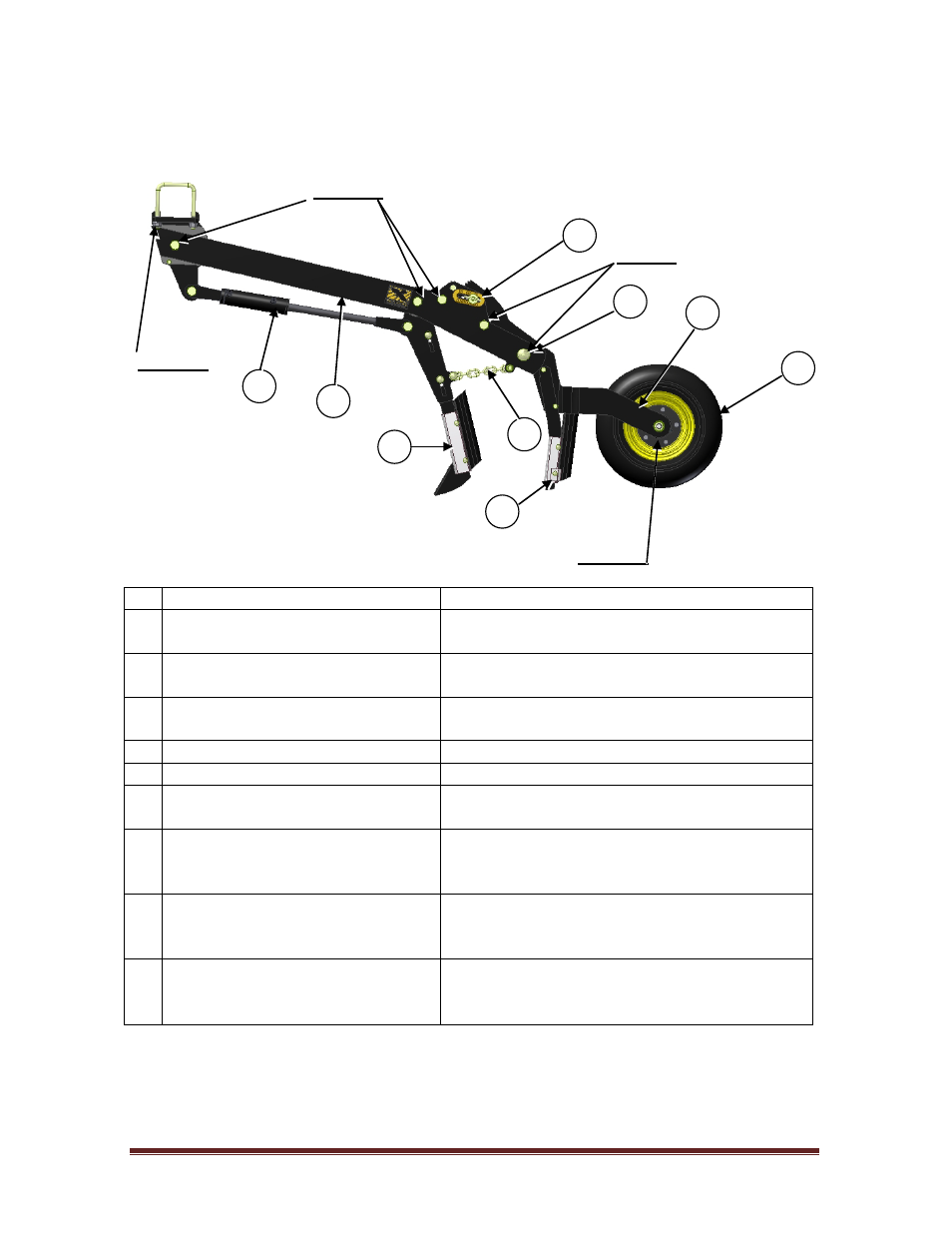

Figure 8
