Page 52: Caster wheel plate gap
Seed Hawk Manual
Tool Bar
Page 45
7.3 CASTER WHEEL GREASE FITTINGS
Lubricate 3 grease fittings, #1 Figure 27, every 50 hrs or weekly.
NOTE: Two fittings are on top and the other is on the bottom of the caster wheel
plate.
7.4 CASTER WHEEL PLATE GAP
Measure gap between caster wheel plates and tighen castle nut every 100 hrs.
The gap, “X”, should not exceed 1/8” (3 mm), Figure 27. Adjust gap, if necessary,
by tightening castle nut on top of caster wheel plate assembly.
1

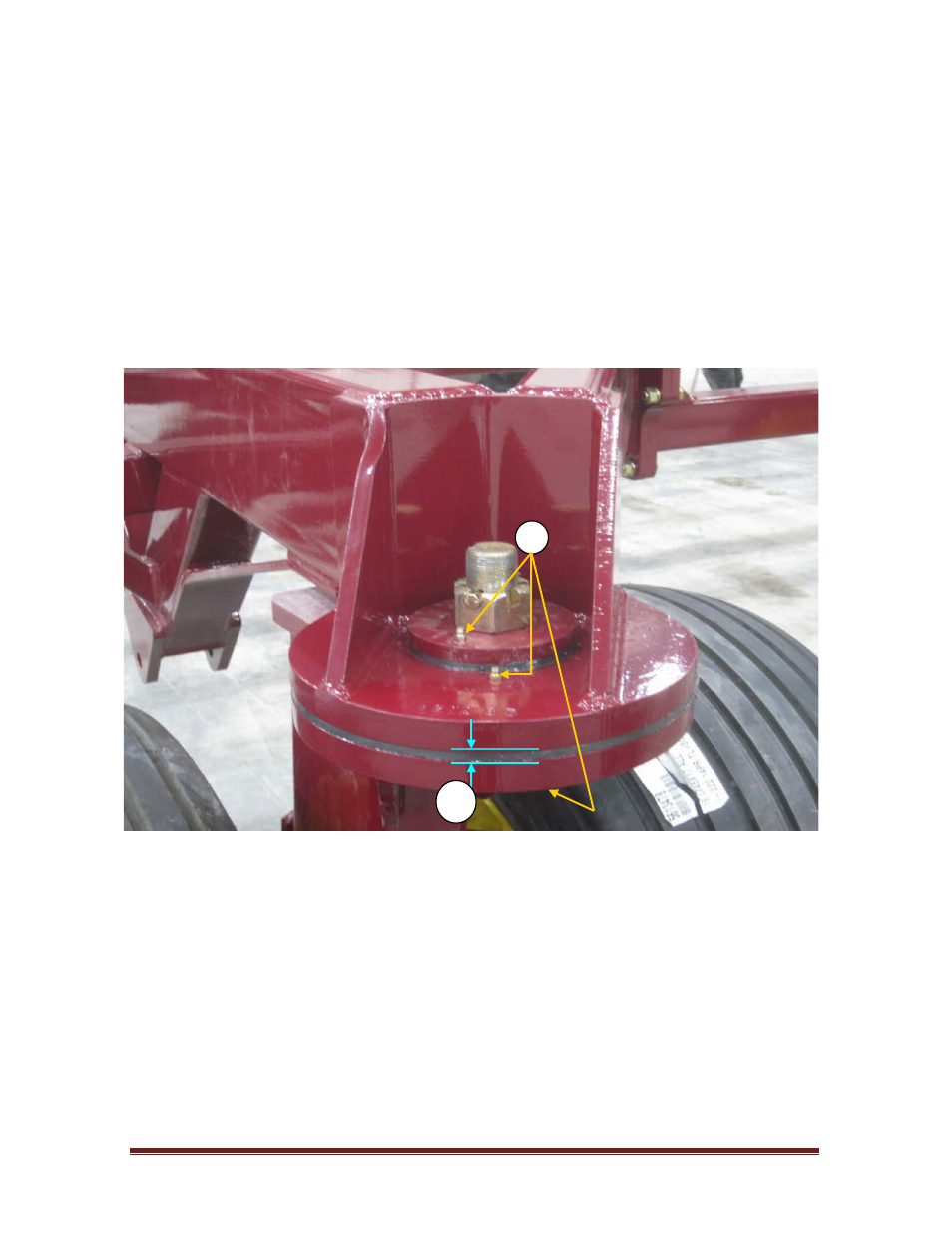

Figure 27
X
